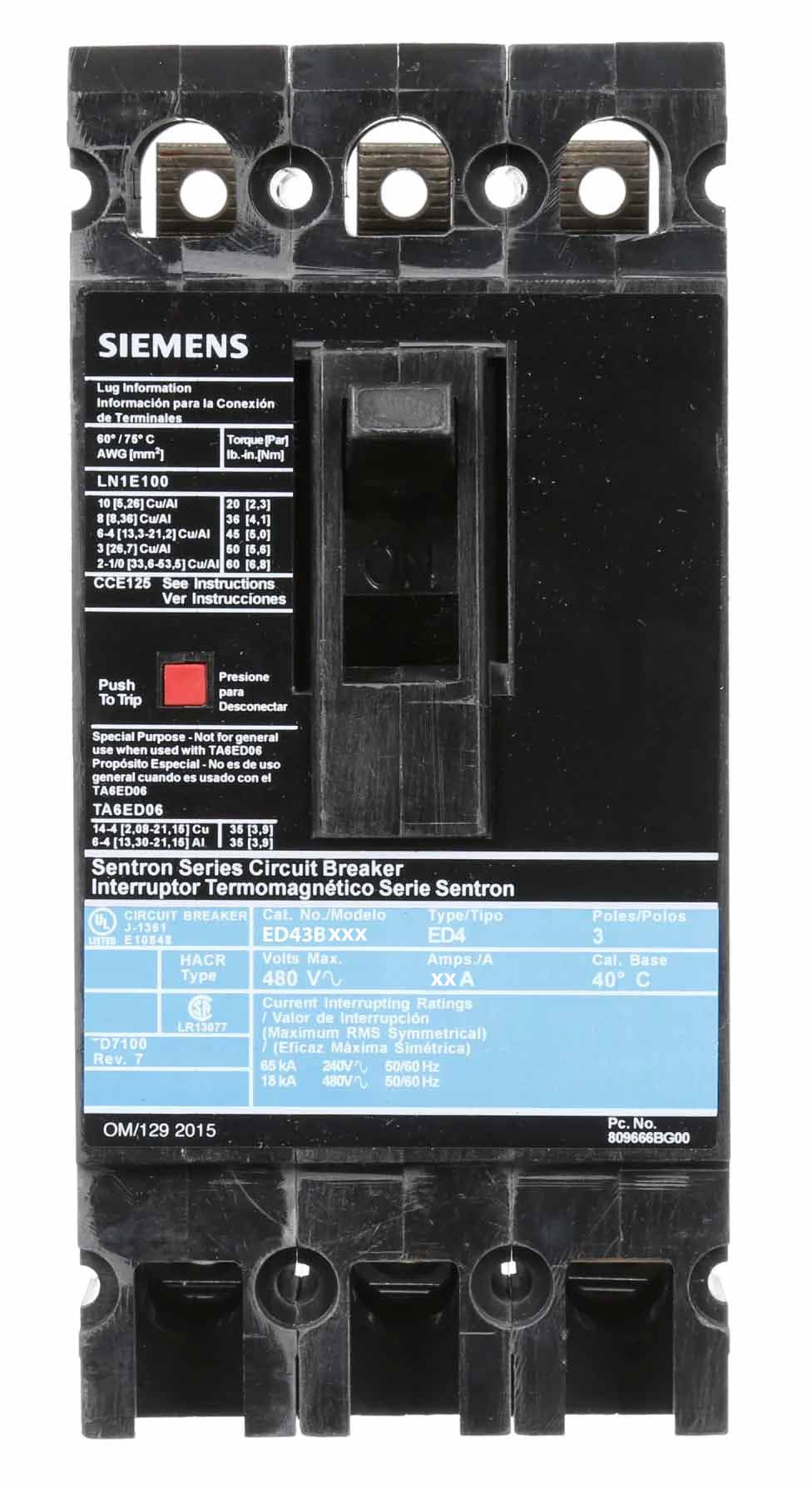

Siemens ED43B025L Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 480V – 18kA @ 480V – Feed-Thru – Sentron Series ED

The Siemens ED43B025L is a 25A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series Type ED. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions for overcurrent protection in compatible electrical distribution applications.

The ED43B025L is rated for 480V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: Sentron
• Type: ED
• Catalog No.: ED43B025L
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED43B025L
• Catalog Number: ED43B025L
• Model: ED43B025L
• Product Family: Siemens Sentron Molded Case Circuit Breakers
• Series: Sentron
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783643236134

Compatibility:

Designed for use with compatible Siemens Sentron Series Type ED electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED43B025L provides 25A, 3-pole thermal-magnetic overcurrent protection for compatible 480V electrical distribution applications.

The breaker features a feed-thru configuration with line-side and load-side lug terminals and LI Long-Time and Instantaneous trip functions.
