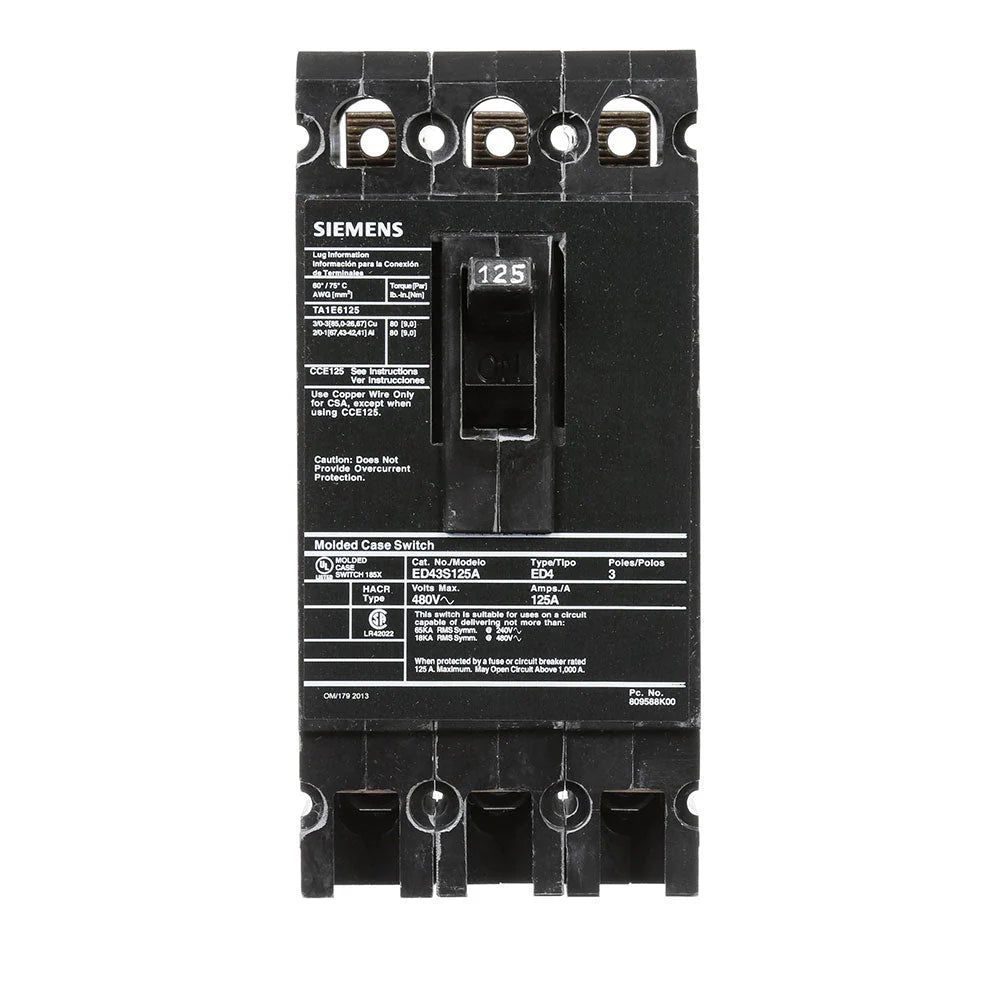

Siemens ED43S125A 125 Amp Non-Automatic Switch – 3 Pole – 240/480 VAC – Bolt-On Plug-In – ED4 Frame

The Siemens ED43S125A is a 125 Amp, 3-pole non-automatic plug-in switch with an ED4 frame. It is rated for 240/480 VAC at 40°C and features thermal-magnetic trip units for circuit protection. The switch is designed for compact, easy installation and includes a load-side lug terminal for convenient connection.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Non-Automatic Switch
• Frame: ED4
• Catalog Number / MPN: ED43S125A
• Primary Rating: 125 Amp
• Poles / Configuration: 3 Pole
• Voltage: 240/480 VAC
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Connection / Mounting: Bolt-On Plug-In
• Terminals: Load-Side Lug Terminal

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED43S125A
• Frame: ED4
• Current Rating: 125 A
• Pole Count: 3 Pole
• Product Type: Non-Automatic Switch
• Trip Type: Thermal-Magnetic
• Terminals: Load-Side Lug Terminal
• UPC:783643216549

Compatibility

The Siemens ED43S125A is designed for compatible Siemens ED4-frame plug-in switch applications. Verify the specific panelboard, system voltage, mounting configuration, terminal requirements, and switch compatibility before installation.

Certifications

• UL Certified
• CSA Certified
