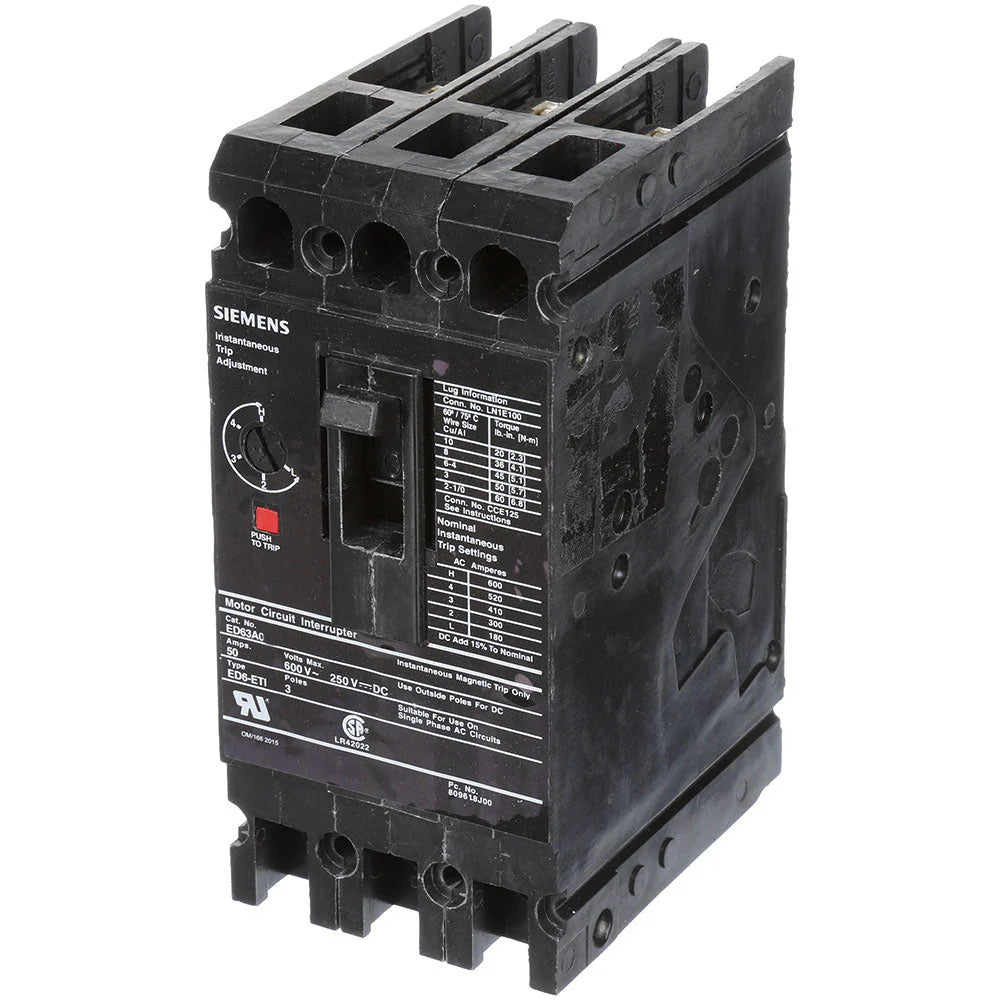

Siemens ED63A001L 1 Amp Motor Circuit Protector – 3 Pole – 600 V – 25 kA@480 V – Bolt-On – SENTRON Series

The Siemens ED63A001L is a 1 Amp, 3-pole motor circuit protector (MCP) from the Siemens SENTRON Series, Type ED. Rated for 600 V, it provides a 25 kA interrupting rating at 480 V with standard interrupting capacity. This magnetic-only protective device provides instantaneous protection and features a magnetic adjustment range of 2.6–9 A. It is designed for bolt-on mounting.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Series: SENTRON
• Type: ED
• Catalog Number / MPN: ED63A001L
• Primary Rating: 1 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 25 kA@480 V
• Interrupting Capacity: Standard
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 2.6–9 A
• Connection / Mounting: Bolt-On
• Application: Motor Circuit Protection

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED63A001L
• Series: SENTRON
• Type: ED
• Current Rating: 1 A
• Pole Count: 3 Pole
• Product Type: Motor Circuit Protector (MCP)
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 2.6–9 A
• Connection: Bolt-On


Compatibility

The Siemens ED63A001L is designed for compatible Siemens SENTRON Type ED motor starter and motor circuit protection applications.
