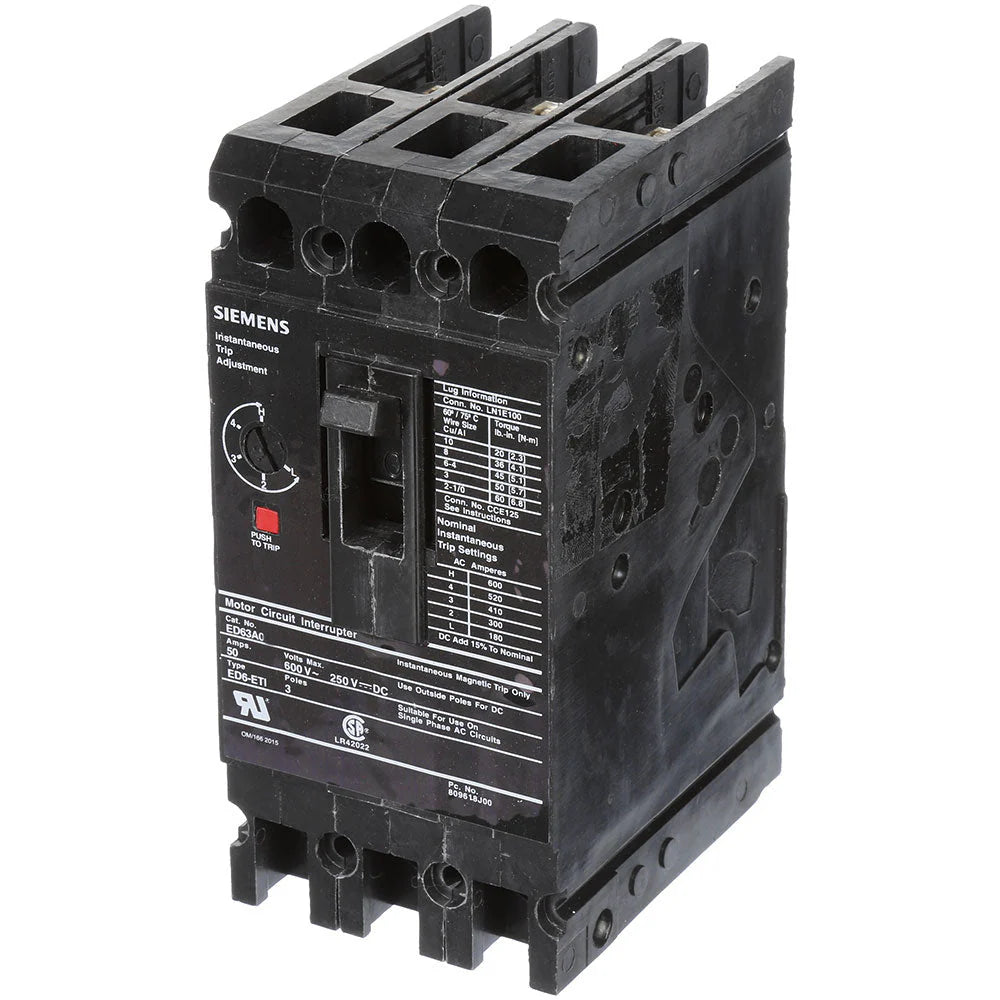

Siemens ED63A002 2 Amp Motor Circuit Protector – 3 Pole – 600 V – 25 kA@480 V – Bolt-On – SENTRON Series

The Siemens ED63A002 is a 2 Amp, 3-pole motor circuit protector (MCP) from the Siemens SENTRON Series, Type ED. It is rated for 600 V with a 25 kA interrupting rating at 480 V and features magnetic-only instantaneous protection. The device is designed for bolt-on mounting and has a magnetic adjustment range of 7–22 A. Lugs are not included.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Series: SENTRON
• Type: ED
• Catalog Number / MPN: ED63A002
• Primary Rating: 2 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 25 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Magnetic-Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 7–22 A
• Connection / Mounting: Bolt-On
• Terminals: Lugs Not Included

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED63A002
• Series: SENTRON
• Type: ED
• Current Rating: 2 A
• Pole Count: 3 Pole
• Product Type: Motor Circuit Protector (MCP)
• Trip Type: Magnetic-Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 7–22 A
• UPC: 783643210790

Compatibility

The Siemens ED63A002 is designed for compatible Siemens SENTRON Type ED motor circuit protection applications. Verify the specific motor starter, panelboard, system voltage, mounting configuration, and breaker compatibility before installation.
