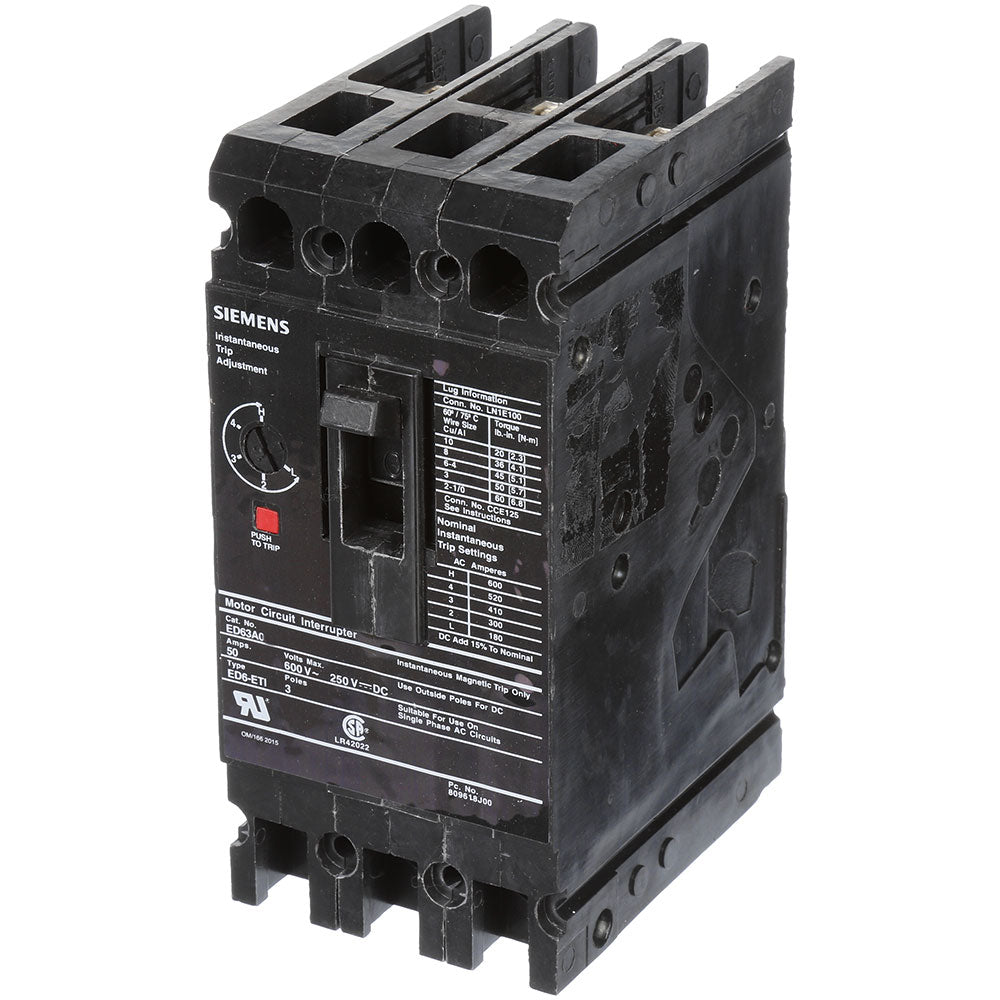

Siemens ED63A010L Molded Case Circuit Breaker – 10A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Sentron ED Series

The Siemens ED63A010L is a 10A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Siemens Sentron Type ED Series. It provides magnetic-only instantaneous protection for compatible motor circuit applications.

The ED63A010L is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration and features an instantaneous-only trip function with a 30–100A magnetic trip range. Lugs are not included.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63A010L
• Current Rating: 10A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Lugs: Not Included
• Product Type/Application: Motor Circuit Protector (MCP)
• Magnetic Trip Range: 30–100A
• Application: Motor Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63A010L
• Catalog Number: ED63A010L
• Model: ED63A010L
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Motor Circuit Protector
• Breaker Configuration: 3-Pole, 10A
• Trip Function: Instantaneous Only
• Magnetic Range: 30–100A
• UPC:783643210820

Compatibility:

Designed for use with compatible Siemens Sentron Type ED Series electrical distribution and motor circuit protection equipment that accepts ED Series molded case motor circuit protectors.

The ED63A010L is a 10A, 3-pole, 600V magnetic-only MCP with instantaneous protection and a 30–100A magnetic trip range. The breaker is supplied without lugs, so compatible terminal requirements should be verified separately.

Always verify the specific panelboard or motor-control equipment model, approved breaker/MCP type, motor application, system voltage, available fault current, pole configuration, magnetic trip requirements, lug selection, and installation requirements before installation.

Certifications:

• Siemens Sentron ED Series
• 10A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Magnetic-Only Protection
• Instantaneous (I) Protection
• 30–100A Magnetic Trip Range
• Bolt-On Mounting
• Motor Circuit Protector (MCP)
• Lugs Not Included
