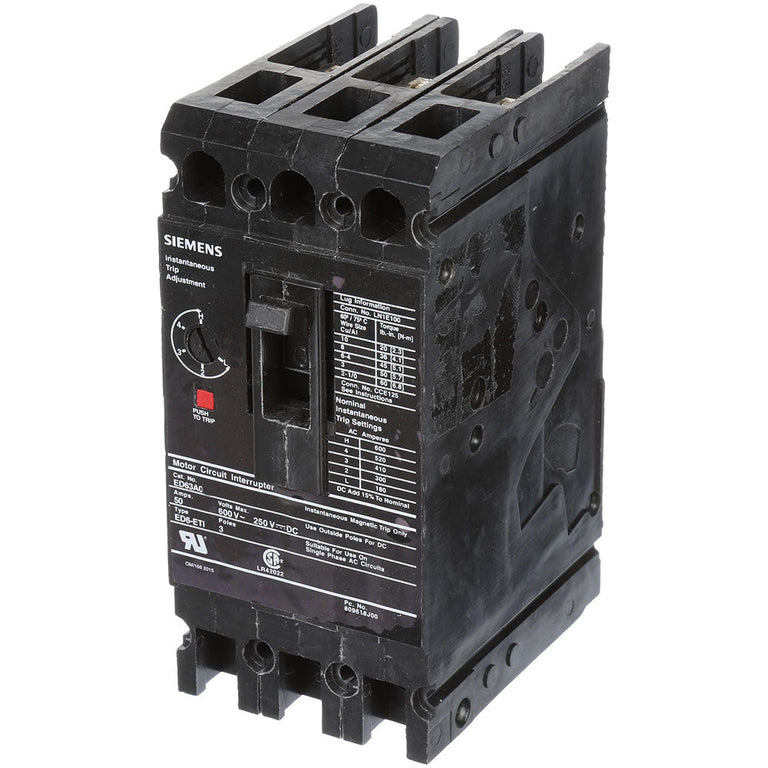

Siemens ED63A025 Motor Circuit Protector – 25A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Sentron ED Series

The Siemens ED63A025 is a 25A, 3-pole, 3-phase motor circuit protector (MCP) from the Siemens Sentron Type ED Series. It provides magnetic-only, instantaneous protection and is designed for compatible motor circuit protection applications.

The ED63A025 is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, has a 55–180A magnetic trip range, and is supplied without lugs.

Specifications:

• Manufacturer: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63A025
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Mounting Type: Bolt-On
• Lugs: Not Included
• Magnetic Range: 55–180A
• Application: Motor Circuit Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63A025
• Catalog Number: ED63A025
• Model: ED63A025
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Breaker Configuration: 3-Pole, 25A
• Trip Configuration: Instantaneous (I) Only
• Protection Configuration: Magnetic Only
• UPC:783643210837

Compatibility:

Designed for use with compatible Siemens Sentron ED Series motor circuit protection applications that accept ED Series bolt-on motor circuit protectors. The ED63A025 provides 25A, 3-pole magnetic-only instantaneous protection for compatible 600V motor applications.

The device has a 55–180A magnetic range and is supplied without lugs. Always verify the specific motor application, electrical equipment model, approved MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal/lug selection, and installation requirements before installation.

Certifications:

• Siemens Sentron ED Series
• 25A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Magnetic-Only Protection
• Instantaneous (I) Protection Only
• Bolt-On Mounting
• Lugs Not Included
• 55–180A Magnetic Range
• Motor Circuit Protector (MCP)
