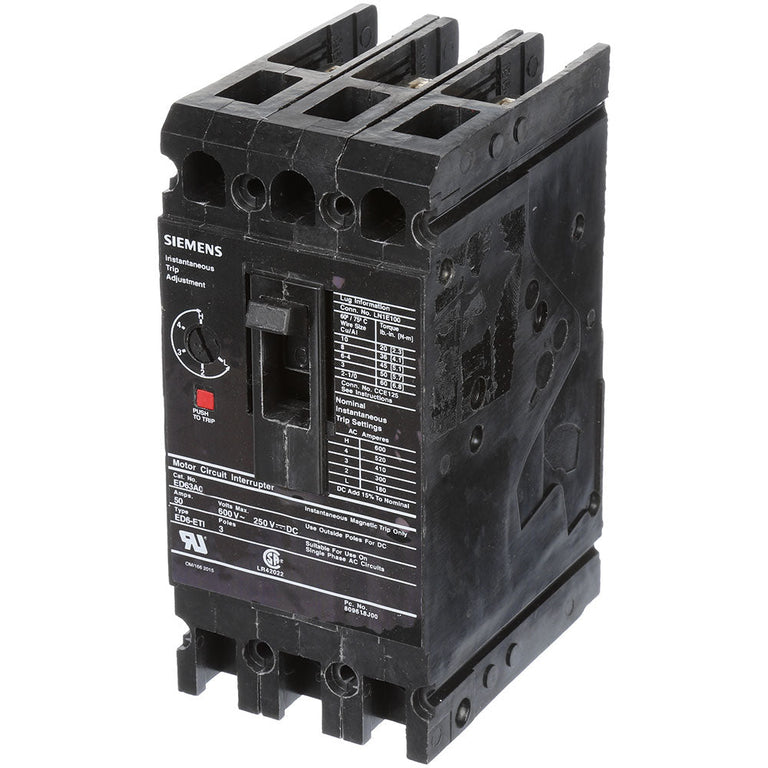

Siemens ED63A030 Molded Case Motor Circuit Protector – 30A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Sentron ED Series

The Siemens ED63A030 is a 30A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Siemens Sentron Type ED Series. It provides magnetic-only, instantaneous protection for compatible motor circuit applications.

The ED63A030 is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration and is supplied as a complete MCP with Instantaneous (I) protection only. Lugs are not included. The magnetic range is 80–270A.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Motor Circuit Protector
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63A030
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete MCP
• Lugs: Not Included
• Magnetic Range: 80–270A
• Application: Motor Circuit Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63A030
• Catalog Number: ED63A030
• Model: ED63A030
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Breaker Configuration: 3-Pole, 30A
• Trip Configuration: Instantaneous (I) Only
• Protection: Magnetic Only
• UPC:783643210844

Compatibility:

Designed for use with compatible Siemens Sentron ED Series electrical distribution equipment that accepts ED Series bolt-on motor circuit protectors. The ED63A030 provides 30A magnetic-only motor circuit protection with an 80–270A instantaneous magnetic range.

Certifications:

• Siemens Sentron ED Series
• 30A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Magnetic-Only Protection
• Instantaneous (I) Protection
• Bolt-On Mounting
• Complete MCP
• Lugs Not Included
• 80–270A Magnetic Range
• Motor Circuit Protector (MCP)
