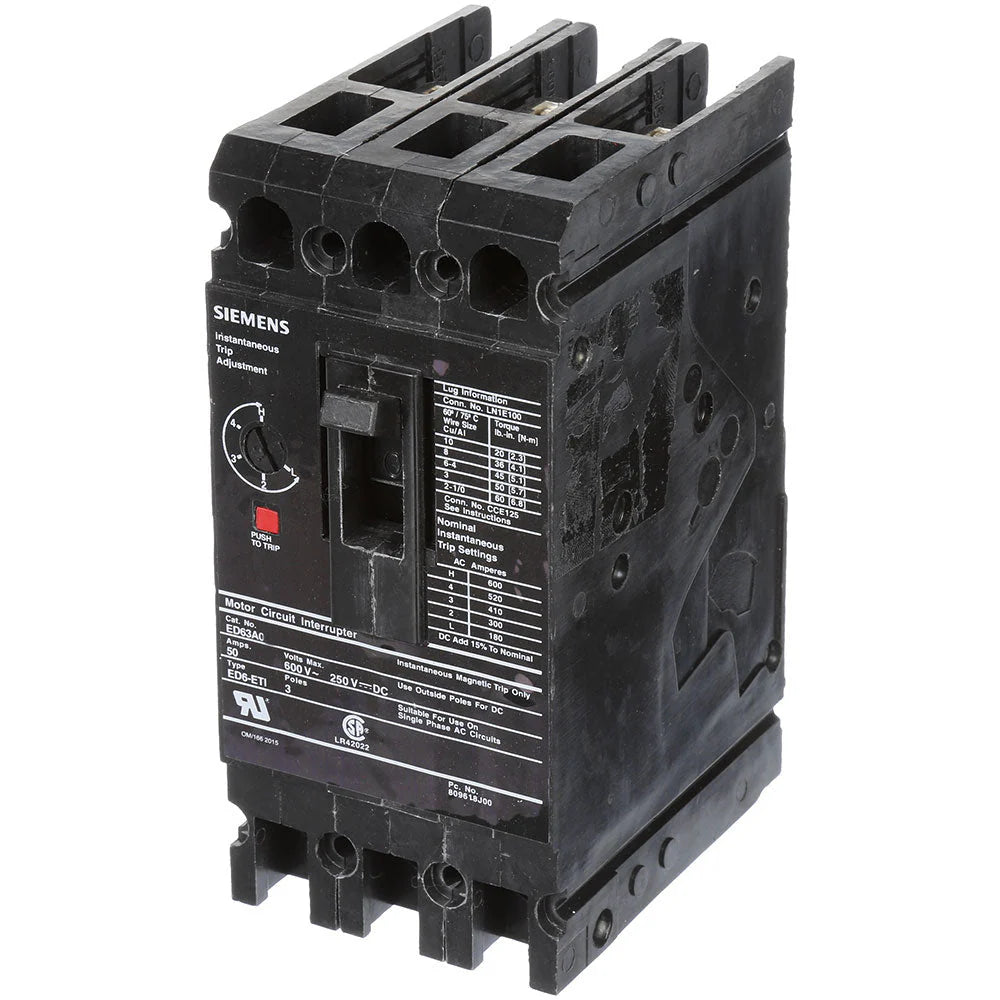

Siemens ED63A050 Molded Case Motor Circuit Protector – 50A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Sentron ED Series

The Siemens ED63A050 is a 50A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Siemens Sentron Type ED Series. It provides magnetic-only, instantaneous protection for compatible motor circuit applications.

The breaker is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses bolt-on mounting, is supplied as a complete MCP, and has a magnetic range of 180–600A. Lugs are not included.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Motor Circuit Protector
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63A050
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete MCP
• Lugs: Not Included
• Magnetic Range: 180–600A
• Application: Motor Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63A050
• Catalog Number: ED63A050
• Model: ED63A050
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• Trip Configuration: Instantaneous Only
• Trip Type: Magnetic Only
• MCP Type: Motor Circuit Protector
• UPC:783643210851

Compatibility:

Designed for use with compatible Siemens Sentron ED Series motor circuit protection applications that accept ED Series bolt-on molded case circuit protectors. The ED63A050 provides 50A, 3-pole magnetic-only instantaneous protection for compatible 600V motor circuits.

The MCP has a 180–600A magnetic range and is supplied without lugs. Always verify the specific motor application, breaker frame, approved MCP type, system voltage, available fault current, magnetic trip requirements, terminal/lug selection, mounting arrangement, and installation requirements before installation.

Certifications:

• Sentron ED Series
• Motor Circuit Protector (MCP)
• 50A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Magnetic-Only Protection
• Instantaneous (I) Protection
• Bolt-On Mounting
• Complete MCP
• 180–600A Magnetic Range
• Lugs Not Included
