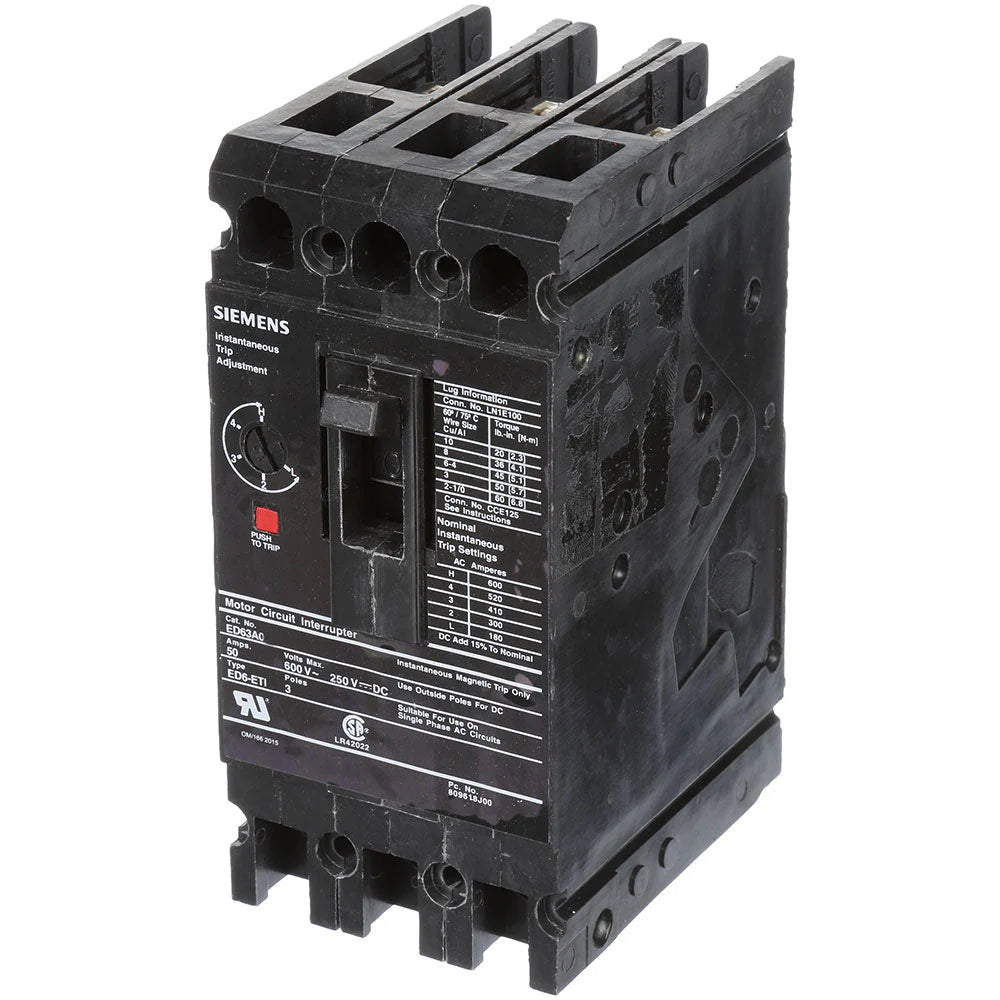

Siemens ED63A050L 50 Amp Sentron Motor Circuit Protector – 3 Pole – 600V AC – 25 kA @ 480V – ED Frame

The Siemens ED63A050L is a Sentron Series, Type ED molded case motor circuit protector (MCP) designed for motor circuit applications requiring instantaneous short-circuit protection. This 3-pole, 50A device is rated for 600V AC and provides a 25kA interrupting capacity at 480V. It features bolt-on mounting and magnetic-only protection, with an adjustable magnetic range of 180–600A.

Specifications

• Manufacturer: Siemens
• Product Series: Sentron
• Product Type: Motor Circuit Protector (MCP)
• Frame Type: ED
• Catalog Number / MPN: ED63A050L
• Current Rating: 50A
• Voltage Rating: 600V AC
• Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 25 kA @ 480V AC
• Interrupting Class: Standard Interrupting
• Mounting: Bolt-On
• Protection Type: Magnetic-Only
• Trip Function: I – Instantaneous Protection Only
• Magnetic Trip Range: 180–600A

Part Numbers & Identification

• Brand: Siemens
• Catalog Number: ED63A050L
• Product Family: Sentron
• Breaker Type: ED
• Product Category: Molded Case Motor Circuit Protector
• Current Rating: 50A
• Configuration: 3 Pole
• UPC:783643210851

Compatibility

Suitable for Siemens Sentron ED-frame motor control applications requiring a 3-pole, 50A motor circuit protector with a 600V AC rating and bolt-on mounting. Its magnetic-only instantaneous protection and 180–600A trip range support motor branch-circuit applications used with a separate overload protection device.
