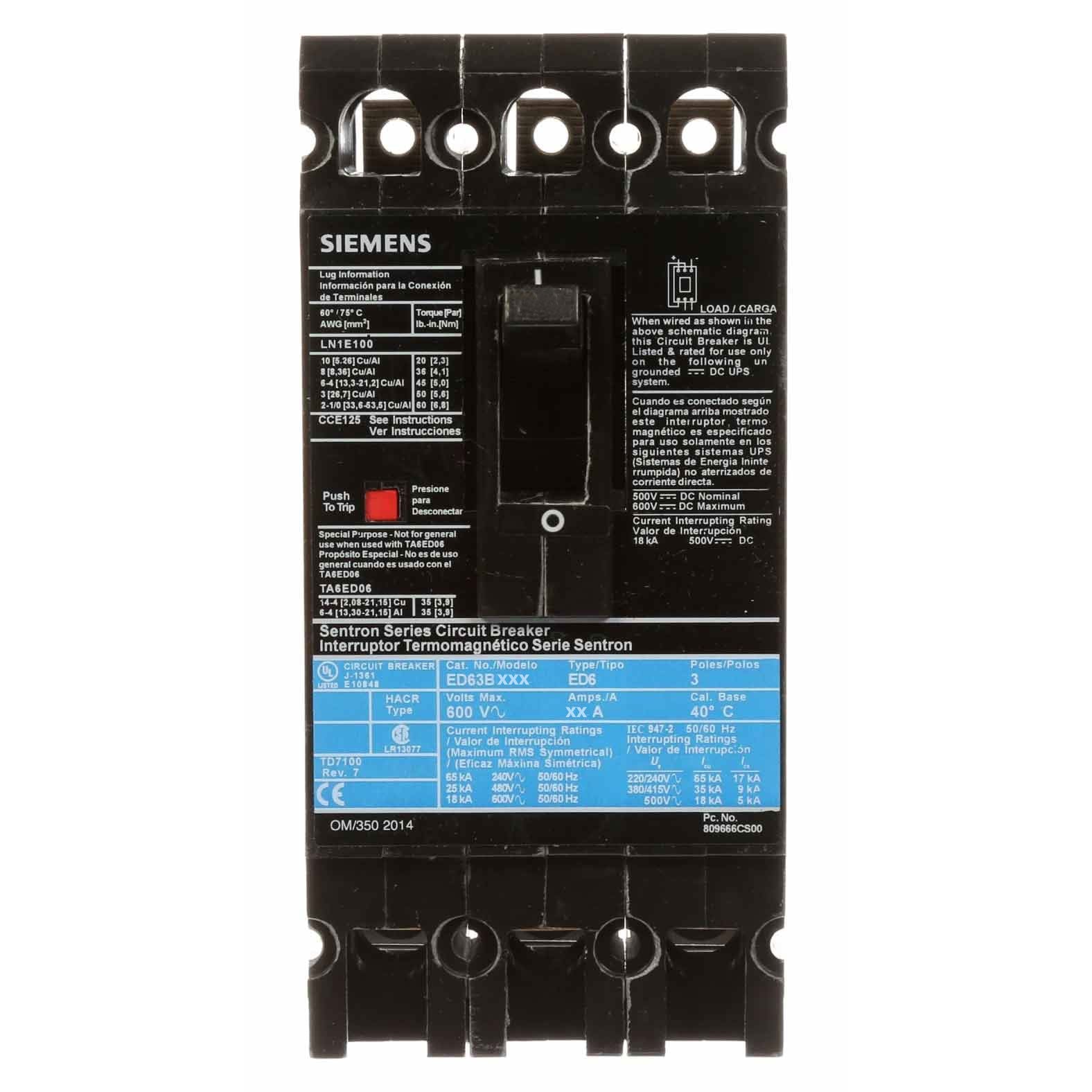

Siemens ED63B020L Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Feed-Thru – Sentron ED Series

The Siemens ED63B020L is a 20A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Siemens Sentron ED Series. It is designed for compatible electrical distribution applications and provides standard interrupting capacity.

The ED63B020L is rated for 600V and provides a 25kA interrupting rating at 480V. It features a feed-thru configuration, is rated for operation at 40°C, and is supplied complete with line- and load-side lug terminals.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63B020L
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63B020L
• Catalog Number: ED63B020L
• Model: ED63B020L
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• Current Rating: 20A
• Rated Voltage: 600V
• UPC:783643236271

Compatibility:

Designed for use with compatible Siemens Sentron ED Series electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED63B020L provides 20A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals and a 25kA interrupting rating at 480V. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• Siemens Sentron ED Series
• 20A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• 40°C Rated
• Complete Breaker
