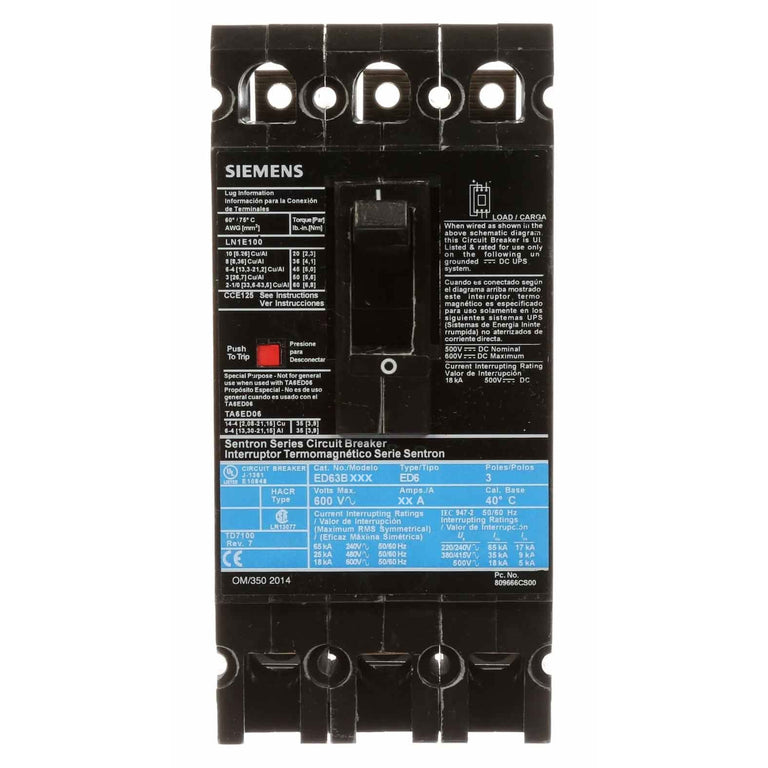

Siemens ED63B060L Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Feed-Thru – Sentron ED Series

The Siemens ED63B060L is a 60A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Siemens Sentron Type ED Series. It is designed for compatible electrical distribution applications and provides overcurrent protection for suitable electrical systems.

The ED63B060L is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63B060L
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63B060L
• Catalog Number: ED63B060L
• Model: ED63B060L
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• UPC:783643236349

Compatibility:

Designed for use with compatible Siemens Sentron Type ED Series electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED63B060L provides 60A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, complete breaker assembly, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• Siemens Sentron ED Series
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Feed-Thru Configuration
• Complete Breaker
• Line- and Load-Side Lug Terminals
• 40°C Rated
