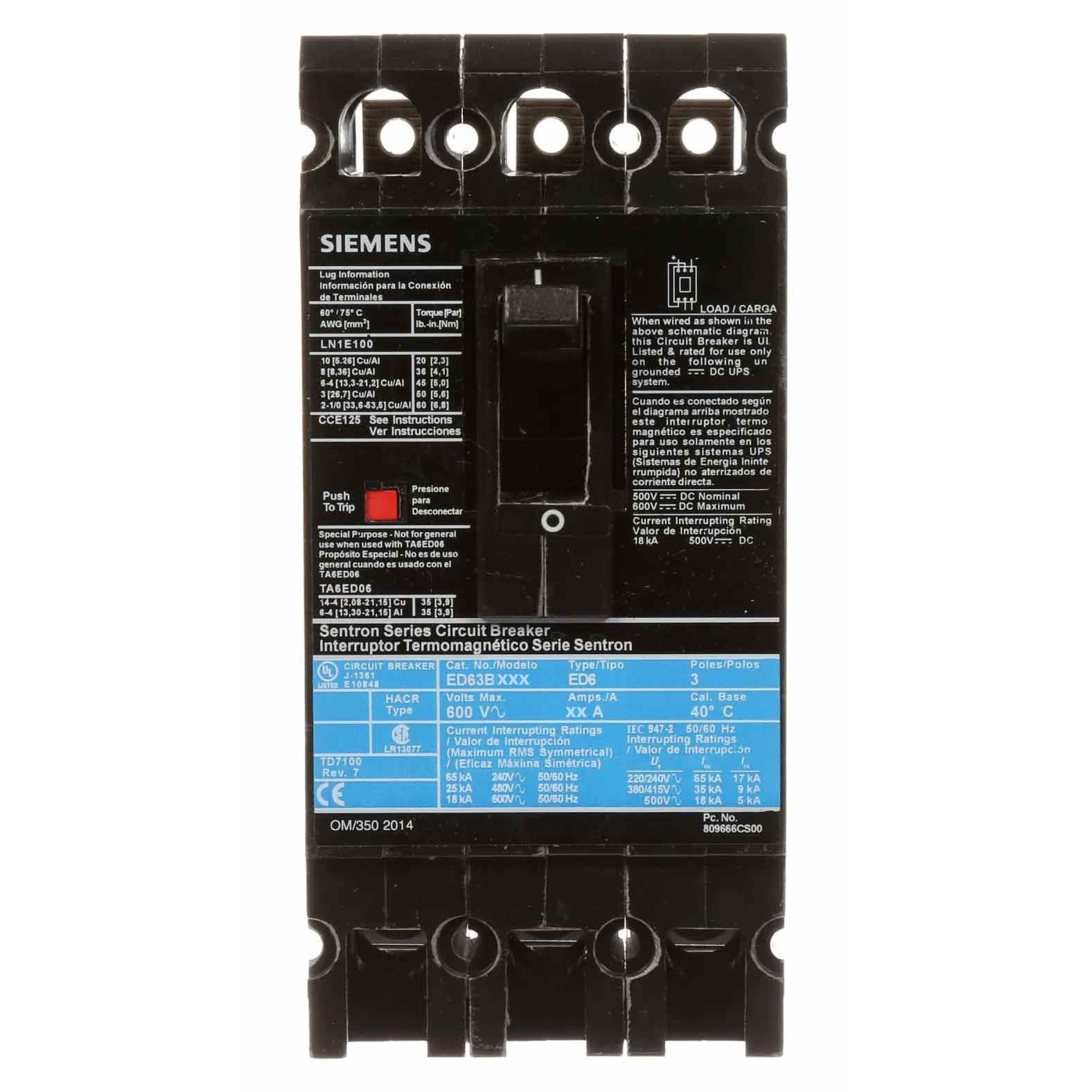

Siemens ED63B070 Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Sentron ED Series

The Siemens ED63B070 is a 70A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type ED Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The ED63B070 is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, includes load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: ED
• Type: ED
• Catalog No.: ED63B070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63B070
• Catalog Number: ED63B070
• Model: ED63B070
• Product Family: Siemens Sentron Circuit Breakers
• Series: ED
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:783643209756

Compatibility:

Designed for use with compatible Siemens Sentron ED Series electrical distribution equipment that accepts ED Series bolt-on molded case circuit breakers. The ED63B070 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, a bolt-on mounting configuration, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Sentron ED Series
• 70A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
