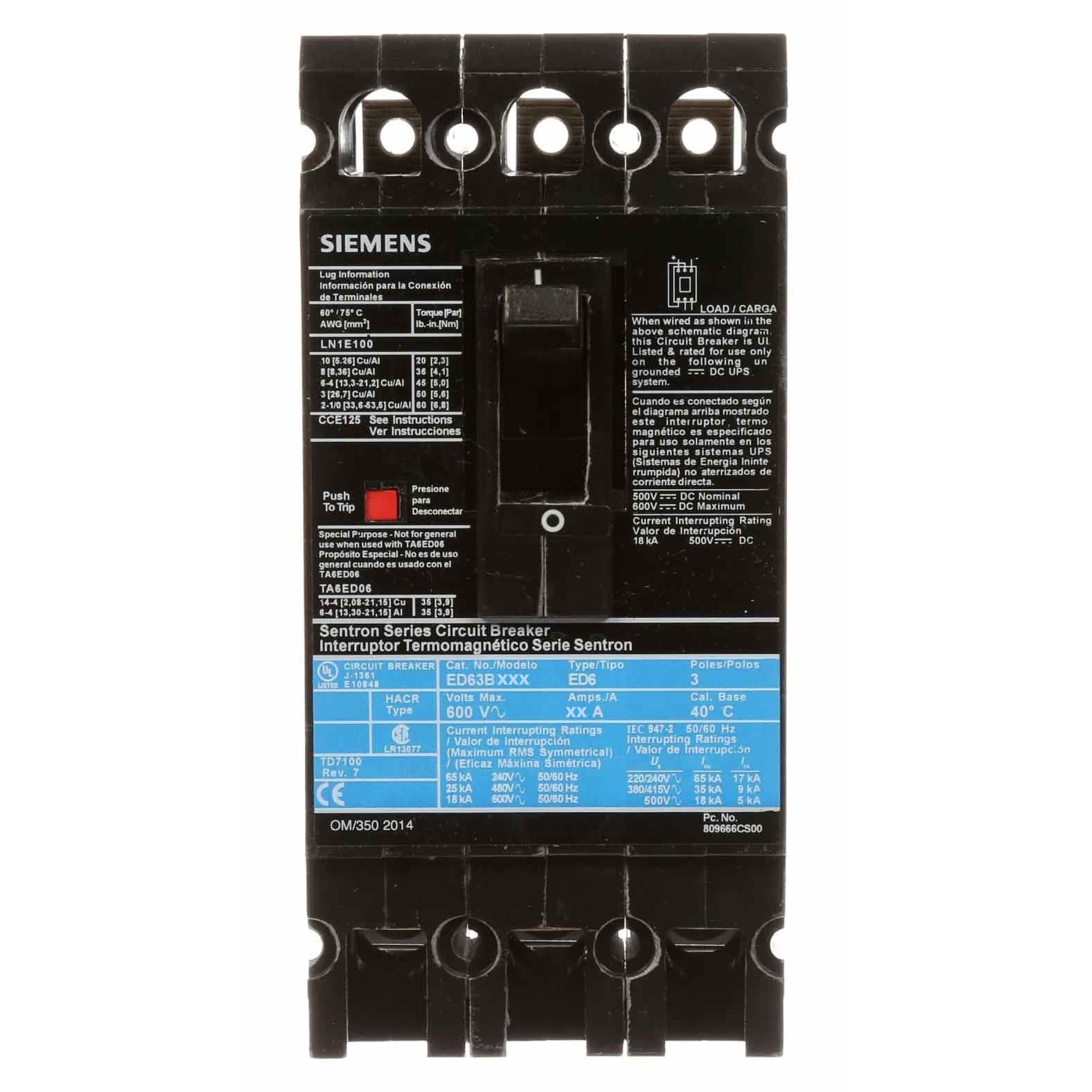

Siemens ED63B080L 80 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 25 kA@480 V – Feed-Thru – SENTRON Series

The Siemens ED63B080L is an 80 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type ED. It is rated for 600 V with a 25 kA interrupting rating at 480 V and features thermal-magnetic protection. The breaker is designed for feed-thru applications and includes line and load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: ED
• Catalog Number / MPN: ED63B080L
• Primary Rating: 80 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 25 kA @ 480 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED63B080L
• Series: SENTRON
• Type: ED
• Current Rating: 80 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783643236363

Compatibility

The Siemens ED63B080L is designed for compatible Siemens SENTRON Series Type ED electrical distribution applications. Verify the specific panelboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
