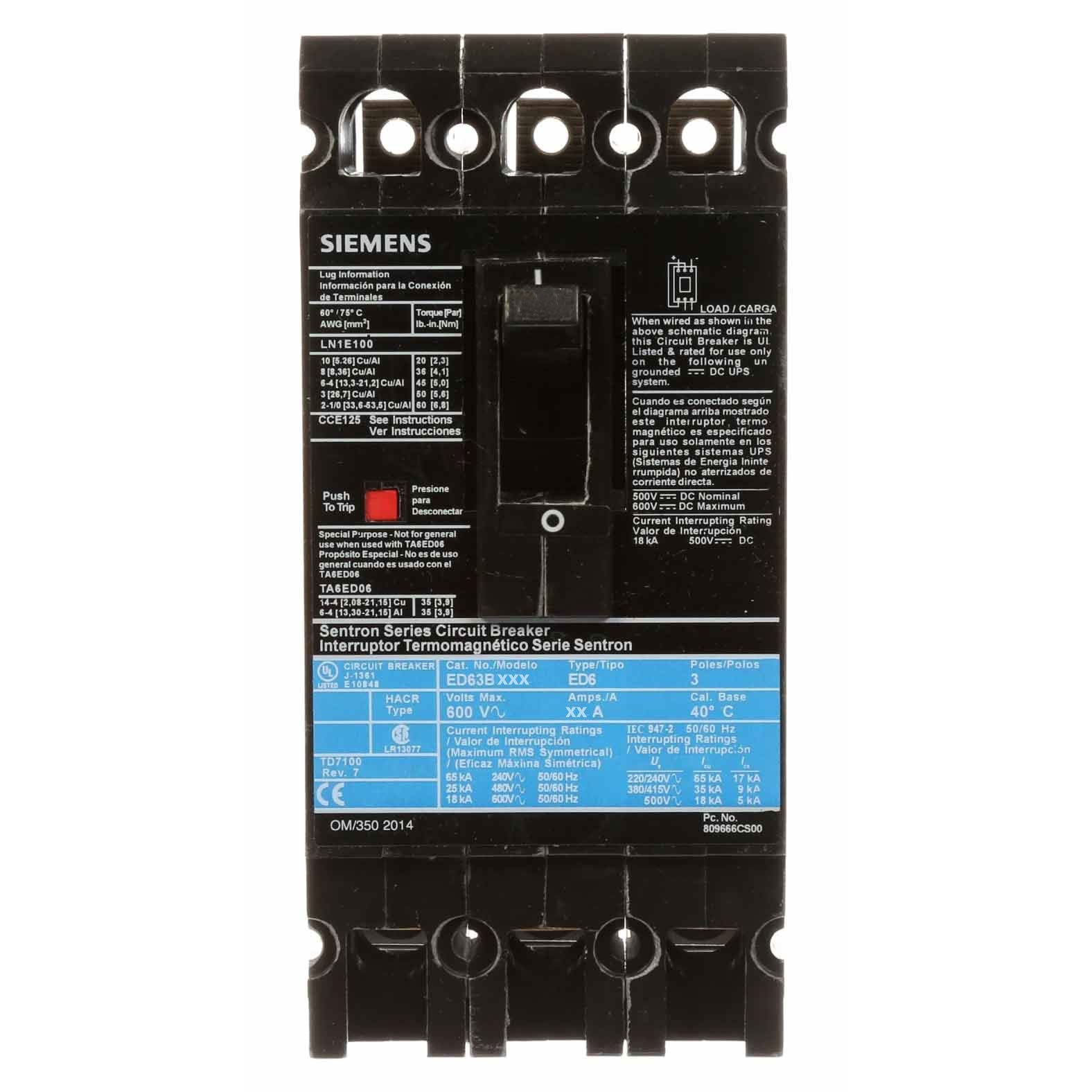

Siemens ED63B090 90 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 25 kA@480 V – Bolt-On – SENTRON ED Series

The Siemens ED63B090 is a 90 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON ED Series. It is rated for 600 V AC and features a thermal-magnetic trip unit with Long-Time and Instantaneous protection functions. The breaker has an 18 kA interrupting rating at 600 V AC and 25 kA at 480 V AC, with bolt-on lug connections and an ED frame design.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Frame: ED
• Catalog Number / MPN: ED63B090
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V AC
• Interrupting Rating: 18 kA @ 600 V AC / 25 kA @ 480 V AC
• Trip Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Wire Size: AWG 10 to AWG 1/0 Cu/Al
• Temperature Range: -13°F to 158°F (-25°C to 70°C)
• Weight: 7 lbs
• Country of Origin: Mexico

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED63B090
• Series: SENTRON
• Frame: ED
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: Long-Time and Instantaneous
• UPC: 783643209770
• GTIN: 00783643209770

Compatibility

The Siemens ED63B090 is designed for compatible Siemens SENTRON ED Series molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, conductor requirements, terminal connections, and breaker compatibility before installation.

Certifications

• UL Listed
