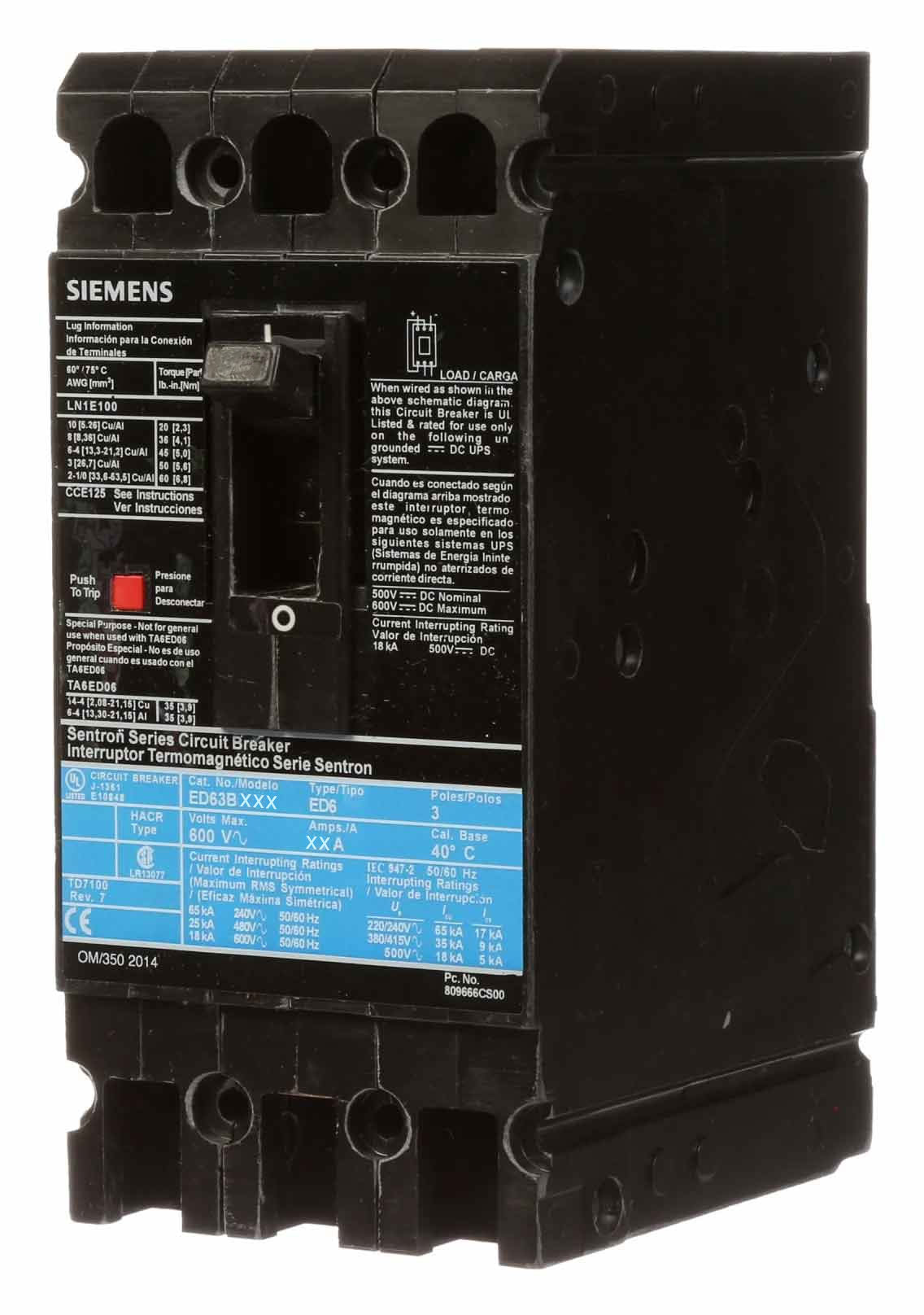

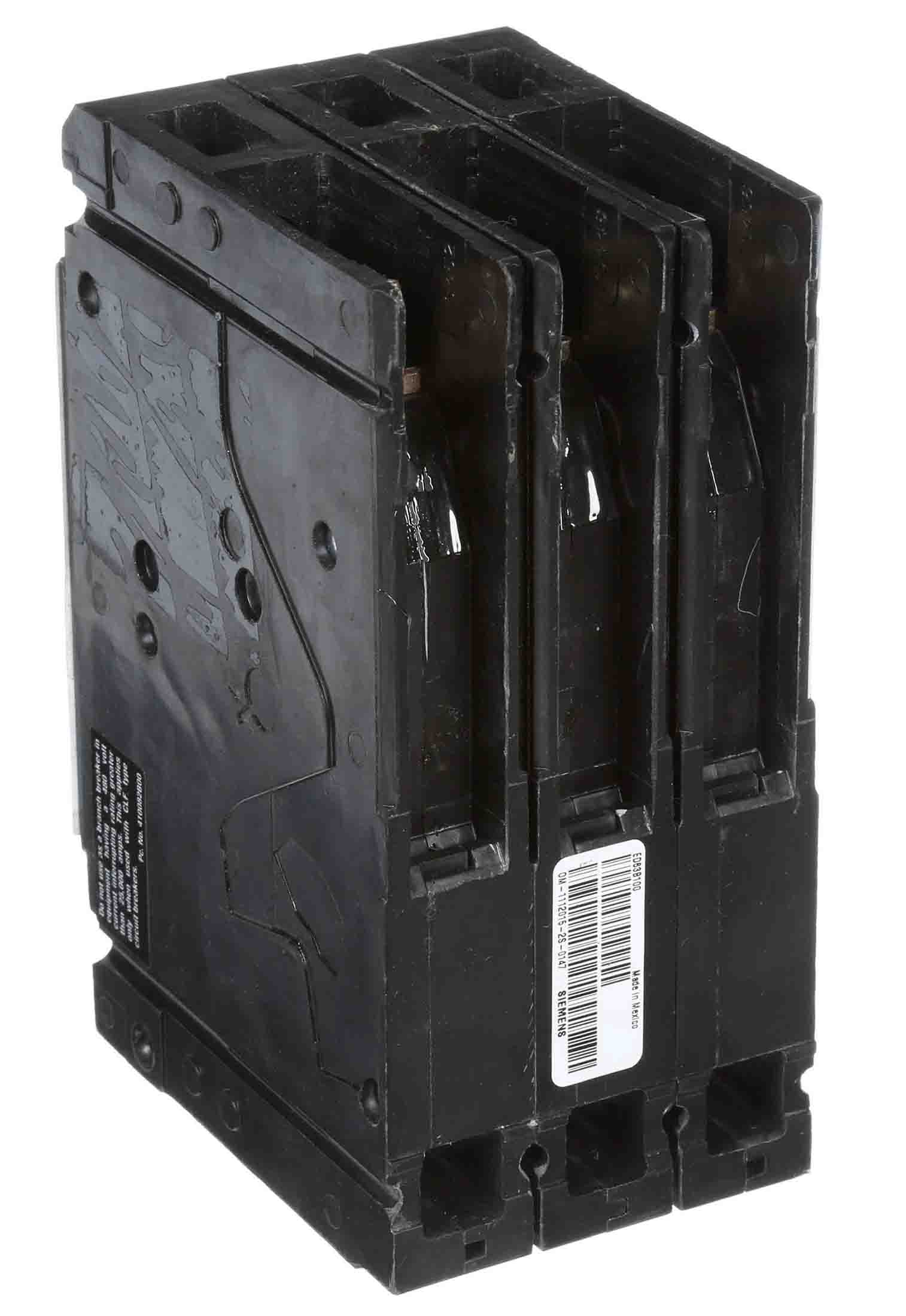

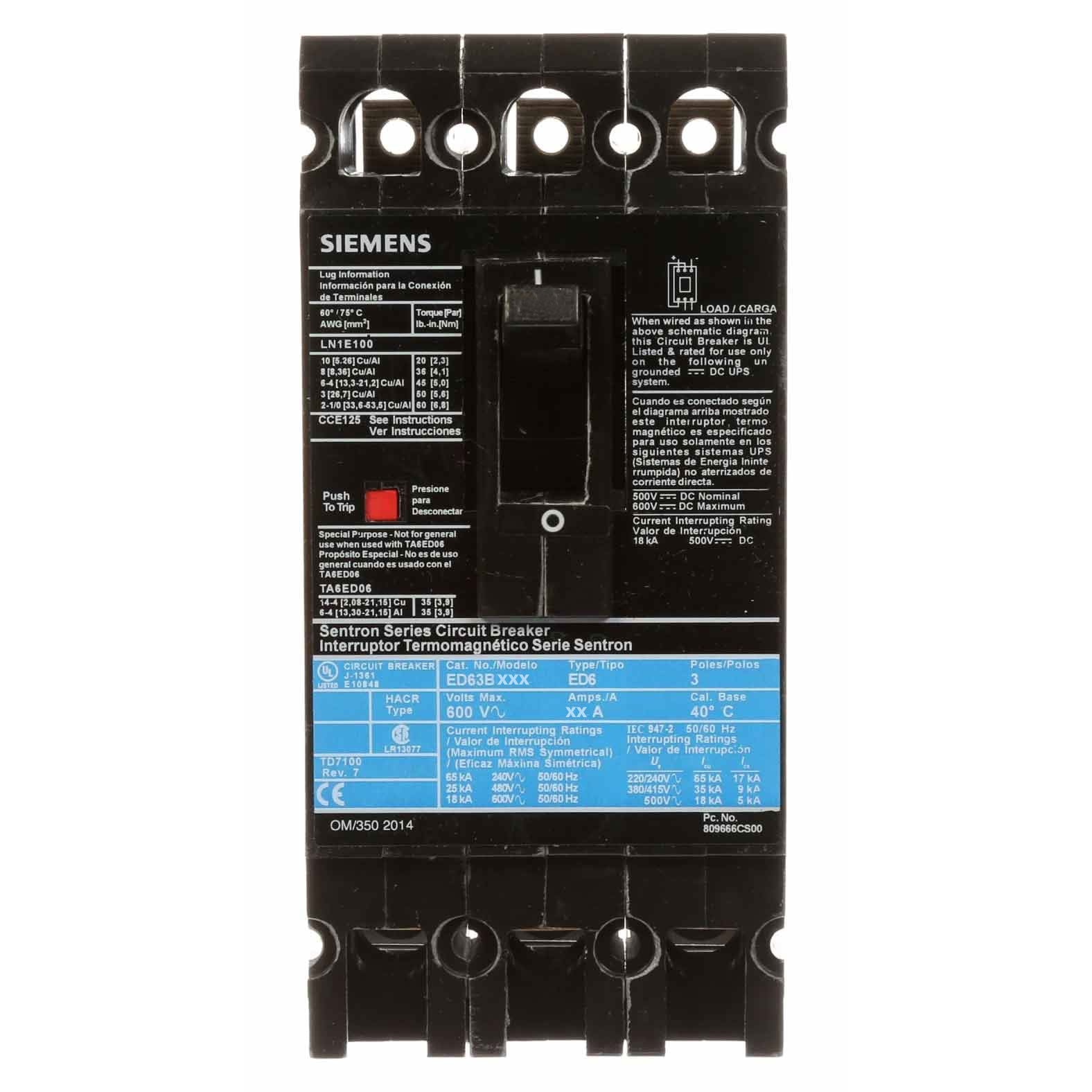

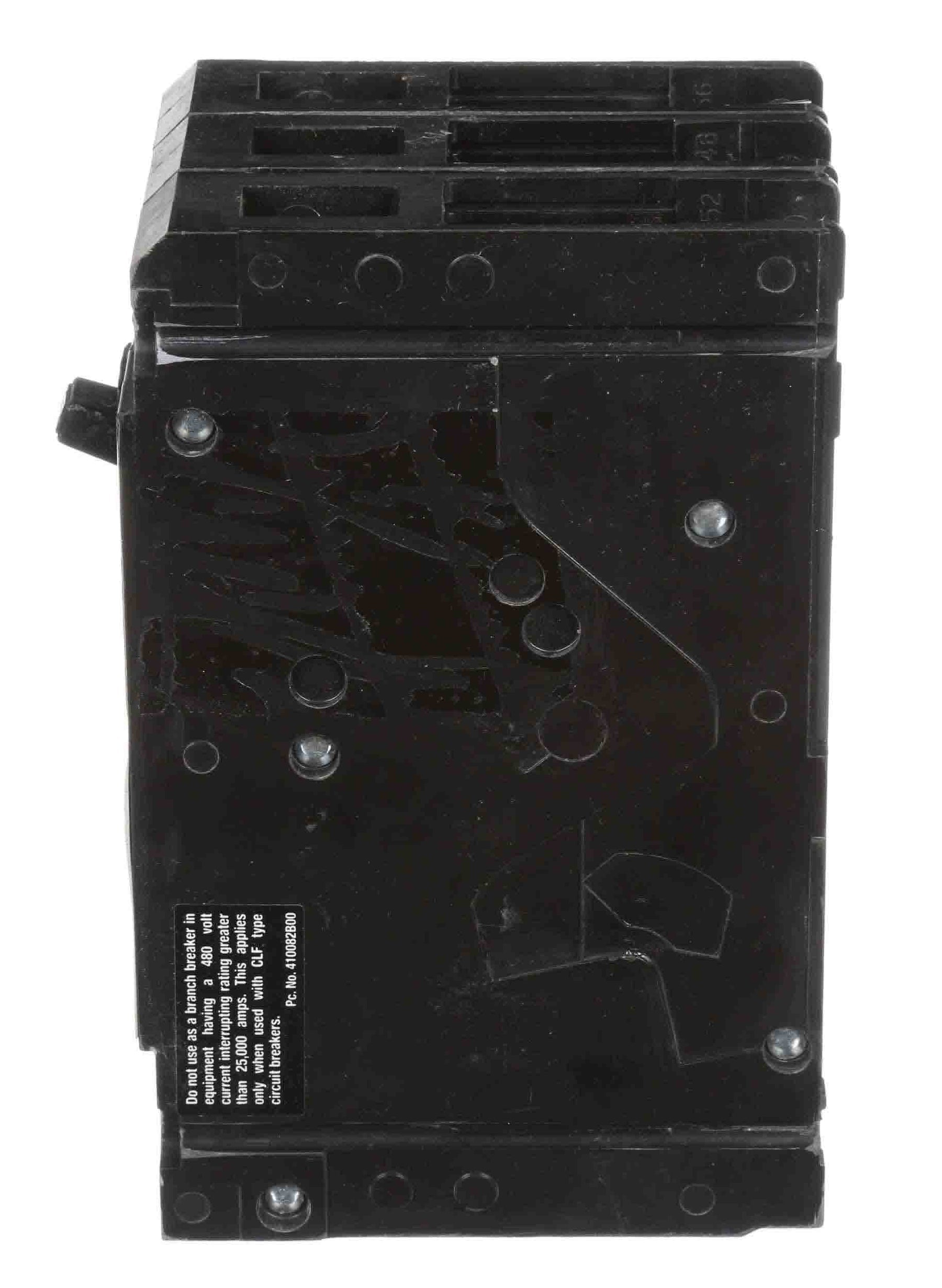

Siemens ED63B100L Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Feed-Thru – Sentron Series ED

The Siemens ED63B100L is a 100A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series Type ED. It features thermal-magnetic protection for reliable overcurrent protection in compatible electrical distribution applications.

The ED63B100L is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: Sentron
• Type: ED
• Catalog No.: ED63B100L
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): ED63B100L
• Catalog Number: ED63B100L
• Model: ED63B100L
• Product Family: Siemens Sentron Molded Case Circuit Breakers
• Series: Sentron
• Type: ED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:783643236387

Compatibility:

Designed for use with compatible Siemens Sentron Series Type ED electrical distribution equipment that accepts ED Series molded case circuit breakers. The ED63B100L provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line-side and load-side lug terminals.
