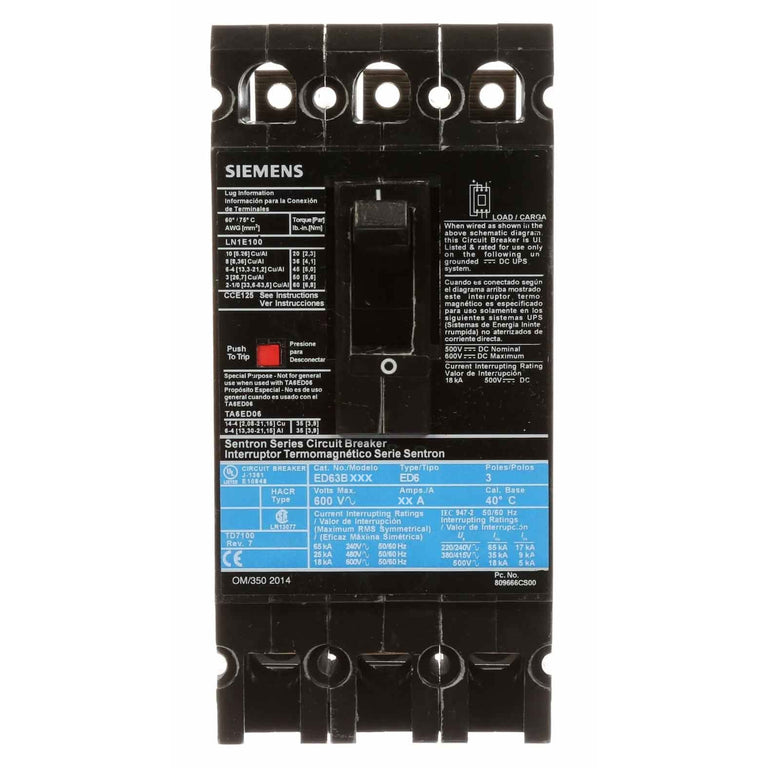

Siemens ED63B110 110 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 25 kA@480 V – Bolt-On – SENTRON Series

The Siemens ED63B110 is a 110 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens SENTRON Series, Type ED. It is rated for 600 V with a 25 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker uses thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions and is designed for bolt-on mounting with load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: ED
• Catalog Number / MPN: ED63B110
• Primary Rating: 110 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 25 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: ED63B110
• Series: SENTRON
• Type: ED
• Current Rating: 110 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On
• Terminals: Load-Side Lug Terminals
• UPC: 783643209794

Compatibility

The Siemens ED63B110 is designed for compatible Siemens SENTRON Type ED molded case circuit breaker applications. Verify the specific panelboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
