EDB24020 - Square D Bolt-on 480Y/277 VACV 20A 2 pole circuit breaker 18kA@480V
Couldn't load pickup availability
Ask an expert
Description
EDB24020

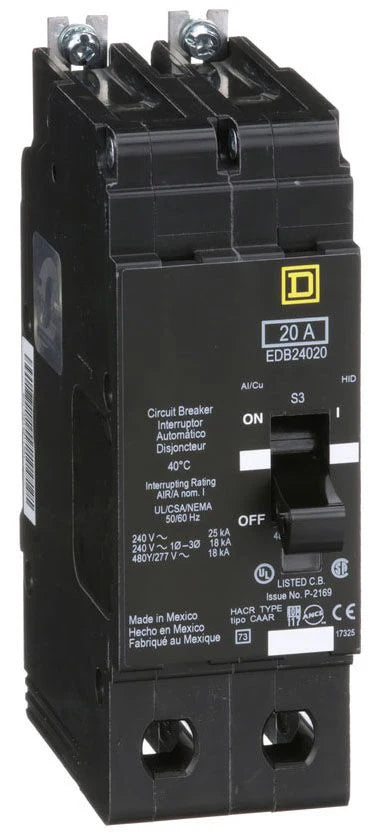

The Square D EDB24020 is a Molded Case Circuit Breaker. This type EDB circuit breaker is a member of The EDB Series family. The EDB24020 is a 2 pole, 480Y/277 VAC Volt, 20 amp rated circuit breaker, with an AIC rating of 18kA@480V. The EDB24020 is manufactured by Square D. The EDB24020 uses a Bolt-on connection.
Specifications
- Part Number: EDB24020
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 480Y/277 VAC
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/EDB
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901879015
- GTIN : 00785901879015
- Country of Origin : Mexico
- Dimensions : 1.96 in x 5.66 in x 5.66 in
- Weight : 1.11 lb
- Panel Type : NF panelboard
- Standards : cULus
- Certification : cULus
- Wire Size : AWG 12...AWG 6 aluminum<br />AWG 14...AWG 6 copper
