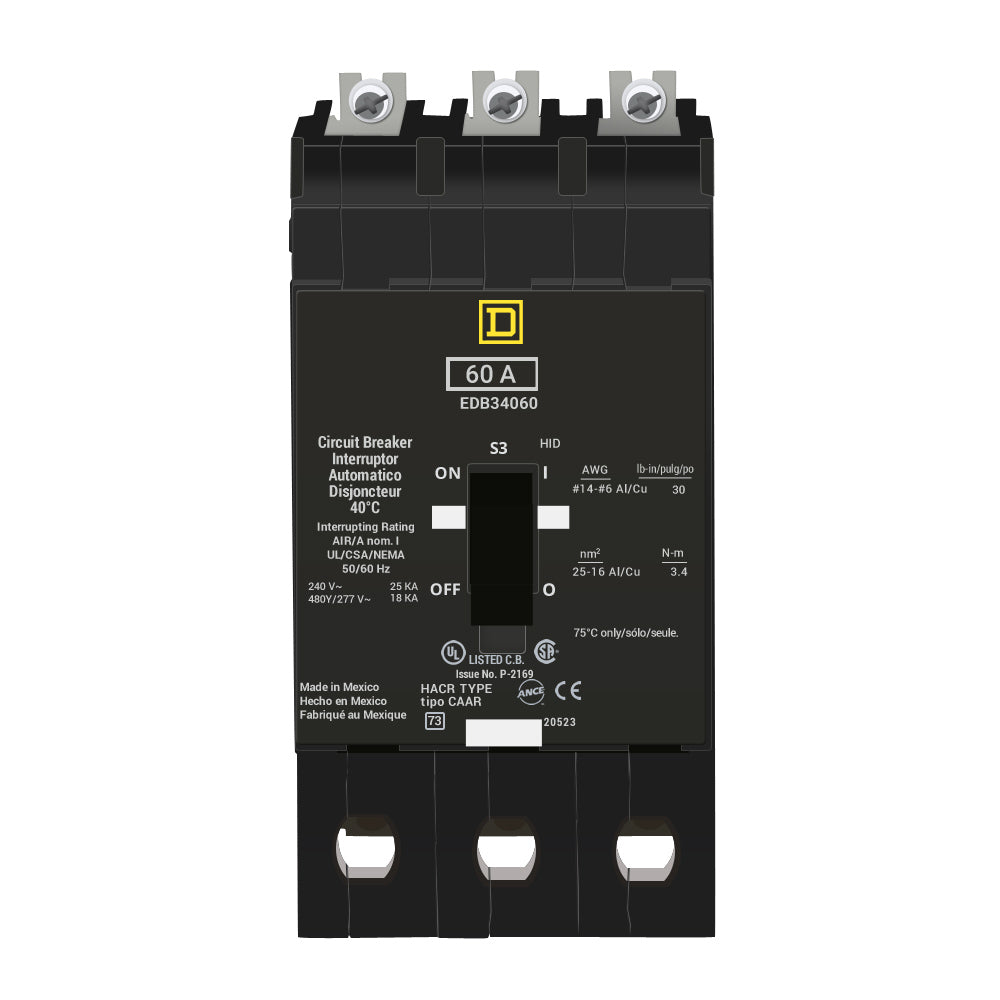

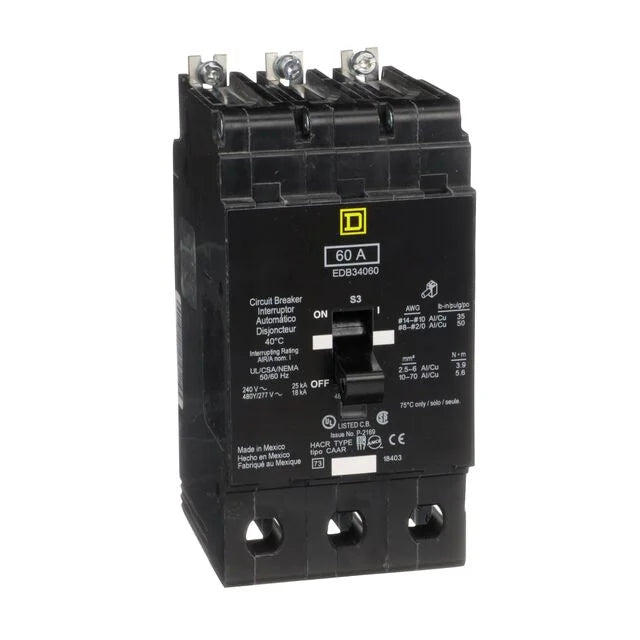

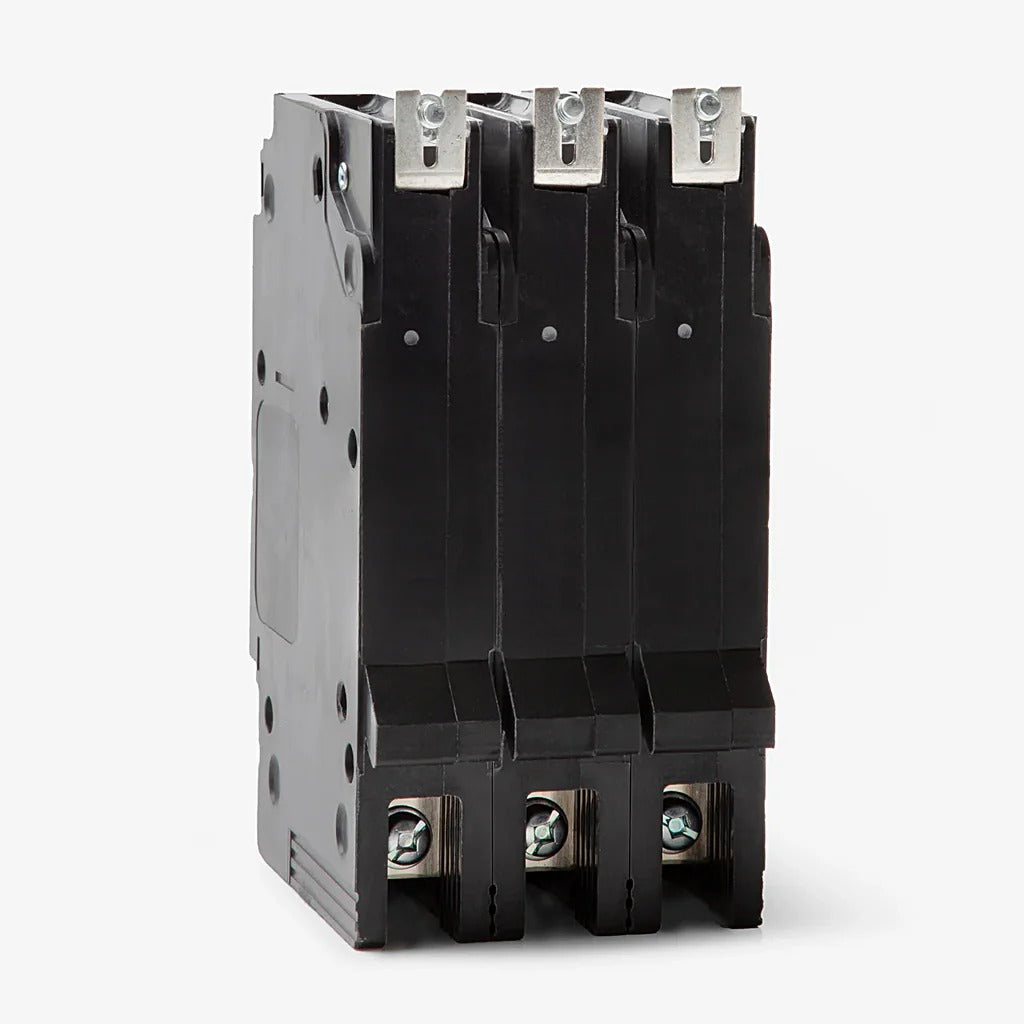

Square D EDB34060 Molded Case Circuit Breaker – 60A – 3-Pole – 480Y/277VAC – Thermal-Magnetic – Bolt-On – EDB Series

The Square D EDB34060 is a 60A, 3-pole molded case circuit breaker designed for use with compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides visible indication when a trip has occurred.

The EDB34060 is rated for 480Y/277VAC and uses a bolt-on mounting configuration with aluminum lug terminals. It is designed for reliable overcurrent protection in compatible commercial and industrial electrical distribution applications.

The circuit breaker is calibrated for 40°C ambient temperature and accommodates 12–6 AWG aluminum and 14–6 AWG copper conductors. It is also rated for HID and HACR applications.

Specifications

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: EDB34060
• Series: EDB
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480Y/277VAC
• Trip Technology: Thermal-Magnetic
• Mounting Type: Bolt-On
• Trip Indication: Signal Indicator
• Hold Current: 270A
• Trip Current: 875A
• Ambient Calibration: 40°C
• Terminal Material: Aluminum
• Aluminum Wire Range: 12–6 AWG
• Copper Wire Range: 14–6 AWG
• Application: Panelboard Overcurrent Protection
• Compatible Panelboard: Square D NF Panelboards
• Additional Ratings: HID and HACR
• Authenticity: Genuine Square D / Schneider Electric Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): EDB34060
• Catalog Number: EDB34060
• Model: EDB34060
• Product Family: Square D Molded Case Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Trip Type: Thermal-Magnetic
• UPC:785901875345

Compatibility

Designed for use with compatible Square D / Schneider Electric NF Panelboards that accept the EDB Series bolt-on circuit breaker configuration.

The EDB34060 is a 3-pole, 60A, 480Y/277VAC breaker with thermal-magnetic protection and bolt-on mounting. Its aluminum lugs accommodate 12–6 AWG aluminum and 14–6 AWG copper conductors.

The breaker is suitable for compatible HID, HACR, commercial, and industrial electrical distribution applications. Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, terminal requirements, and manufacturer specifications before installation.

Certifications

• UL Listed
• CSA Rated
• HID Rated
• HACR Rated
• Thermal-Magnetic Protection
• 480Y/277VAC Rated
• 60A Rated
• 3-Pole / 3-Phase
• Bolt-On Mounting
• 40°C Calibration
• Genuine Square D / Schneider Electric Product
