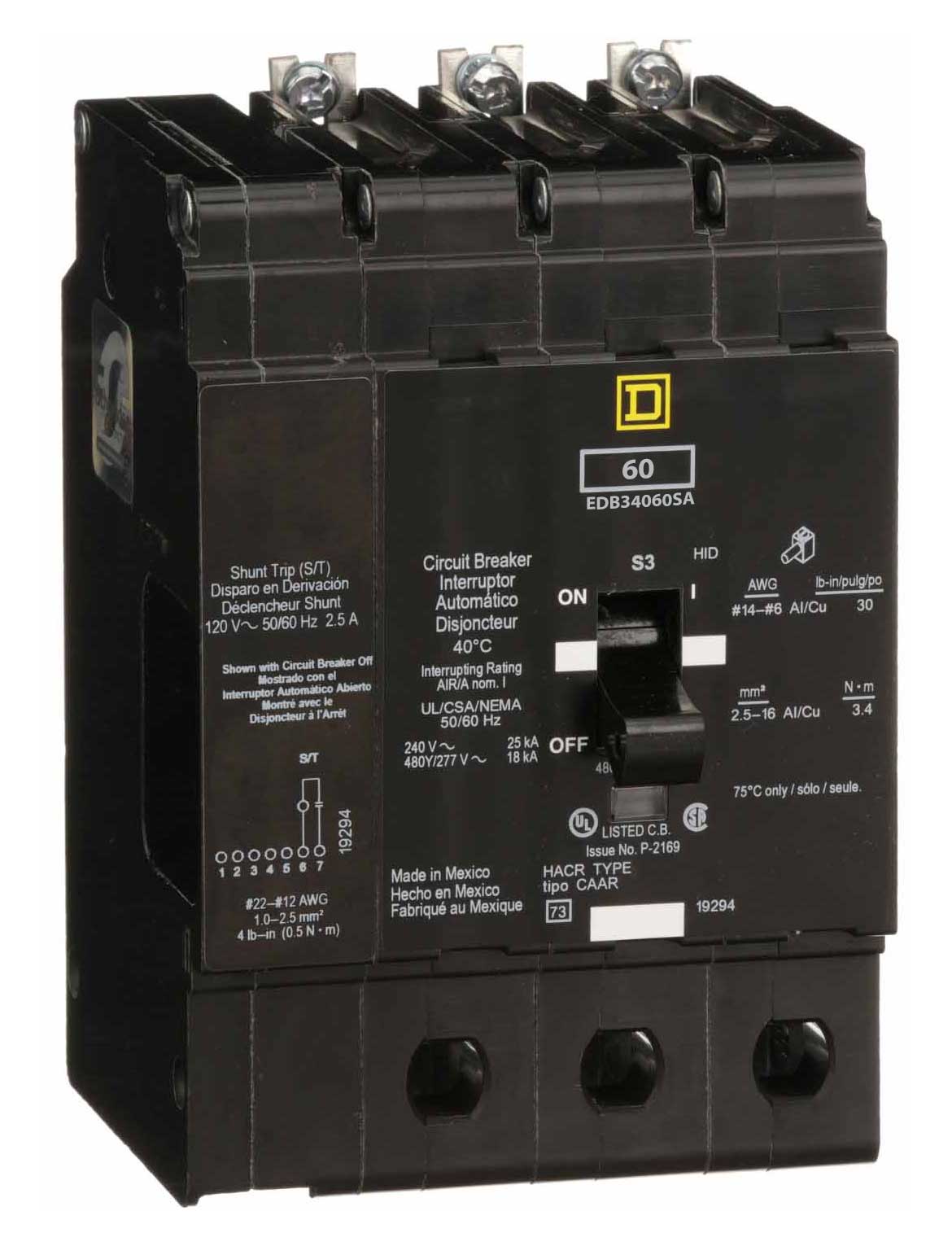

Square D EDB34060SA Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 480V – 18kA @ 480V – Bolt-On – EDB Series

The Square D EDB34060SA is a 60A, 3-pole, 3-phase molded case circuit breaker from the Square D EDB Series. It features thermal-magnetic protection, a standard interrupting capacity, and a factory-installed 120V shunt trip for remote tripping applications.

The EDB34060SA uses a bolt-on mounting configuration and is designed for compatible electrical distribution applications. It provides an 18kA interrupting rating at 480V.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB Series
• Series: EDB
• Type: EDB
• Catalog No.: EDB34060SA
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Shunt Trip: Factory-Installed
• Shunt Trip Voltage: 120V
• Mounting Type: Bolt-On
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB34060SA
• Catalog Number: EDB34060SA
• Product Family: Square D EDB Series Circuit Breakers
• Series: EDB
• Type: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: EDB34060SA
• Breaker Configuration: 3-Pole, 60A
• UPC:
  785901129769

Compatibility:

Designed for use with compatible Square D / Schneider Electric EDB Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The EDB34060SA provides 60A, 3-pole thermal-magnetic protection with a factory-installed 120V shunt trip for compatible 480V applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, shunt-trip control voltage, mounting arrangement, and installation requirements before installation.

Certifications:

• EDB Series
• 60A Rated
• 3-Pole / 3-Phase
• 480V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• 120V Factory-Installed Shunt Trip
• Bolt-On Mounting
