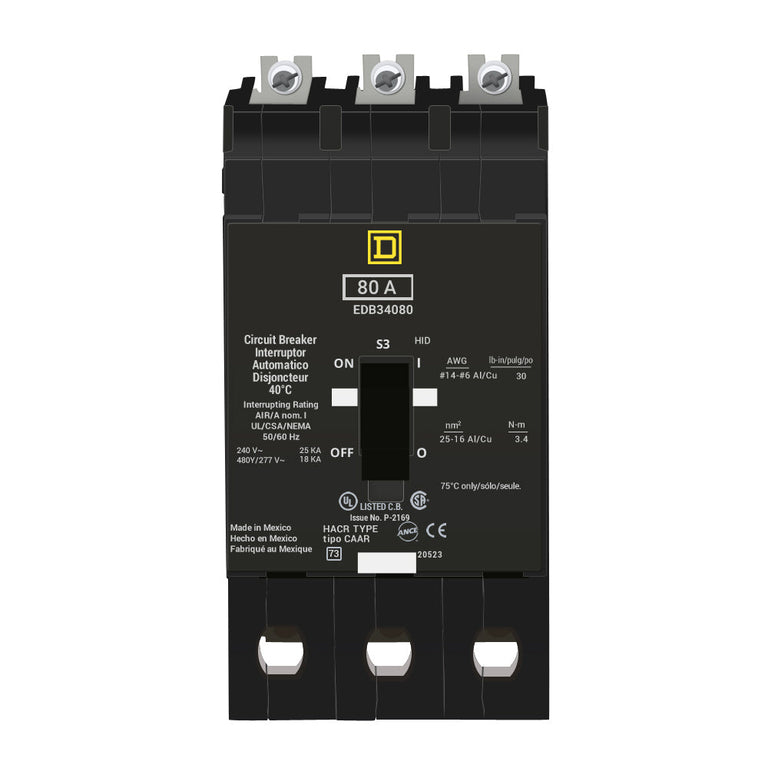

Square D EDB34080 – 80A – 3-Pole – 480Y/277V AC – Thermal-Magnetic – Bolt-On – EDB Series

The Square D EDB34080 is an 80A, 3-pole molded case circuit breaker designed for compatible Square D NF Panelboards and commercial electrical distribution applications. This thermal-magnetic breaker provides reliable protection against overloads and short circuits and features a signal indicator to indicate when a trip has occurred.

The EDB34080 is rated for 480Y/277V AC and uses a bolt-on mounting connection with aluminum lug terminals. It is calibrated for a 40°C ambient temperature and is designed for compatible panelboard applications requiring dependable circuit protection.

Specifications

• Manufacturer: Schneider Electric / Square D
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: EDB34080
• Product Family: EDB Series
• Current Rating: 80A
• Voltage Rating: 480Y/277V AC
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Connection: Bolt-On
• Terminal Type: Aluminum Lugs
• Copper Wire Range: AWG 14–6
• Aluminum Wire Range: AWG 12–6
• Ambient Rating: 40°C
• Application: Commercial and Industrial Circuit Protection
• Compatible Equipment: Square D NF Panelboards
• Features: Signal Trip Indicator
• Ratings: CSA, HID, HACR
• Authenticity: Genuine Square D Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): EDB34080
• Catalog Number: EDB34080
• Model: EDB34080
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• UPC:785901875369

Compatibility

Designed for use with compatible Square D NF Panelboards that accept the EDB series molded case circuit breaker configuration.

The EDB34080 is an 80A, 3-pole, 480Y/277V AC bolt-on breaker intended for compatible commercial and industrial electrical distribution applications. It provides thermal-magnetic protection against overload and short-circuit conditions.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, terminal requirements, conductor size, and installation requirements before installation.

Certifications

• CSA Rated
• HID Rated
• HACR Rated
• Thermal-Magnetic Protection
• 80A Rating
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• Bolt-On Connection
• Signal Trip Indicator
• 40°C Ambient Rating
• Designed for Square D NF Panelboards
• Genuine Schneider Electric / Square D Product
