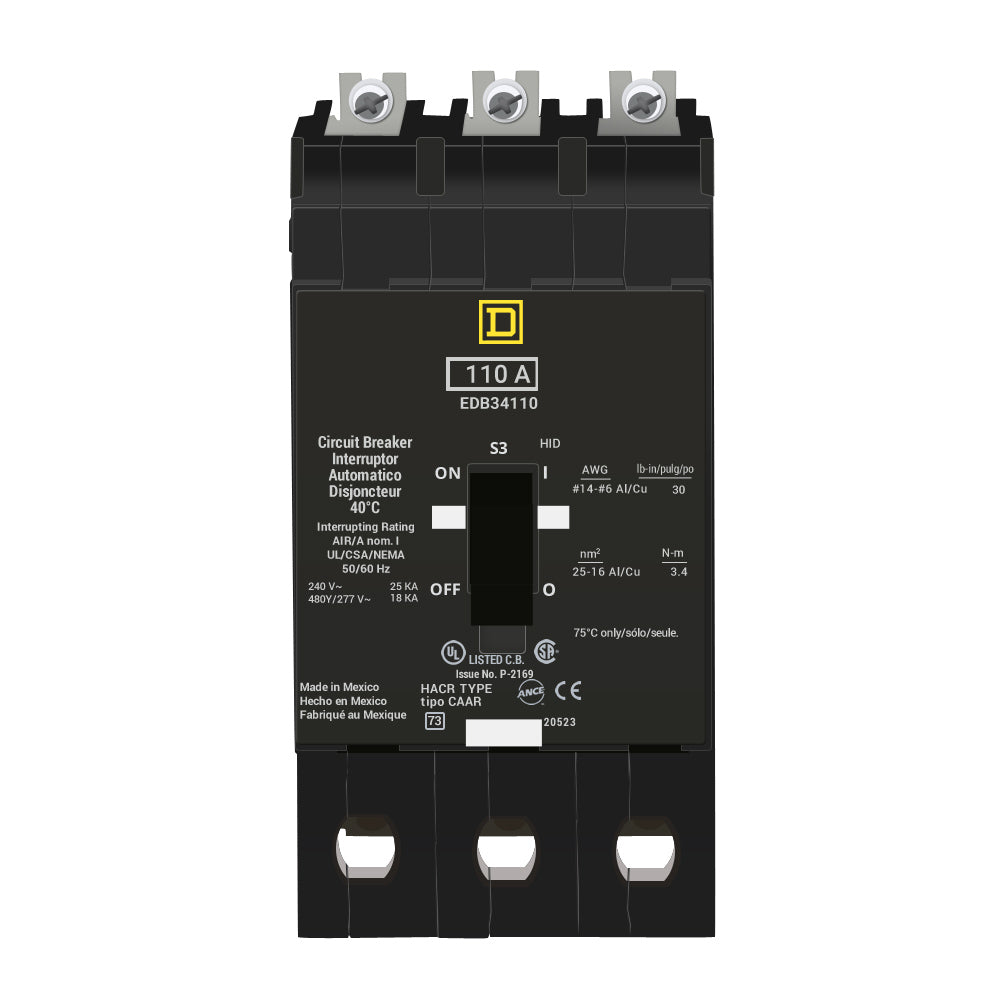

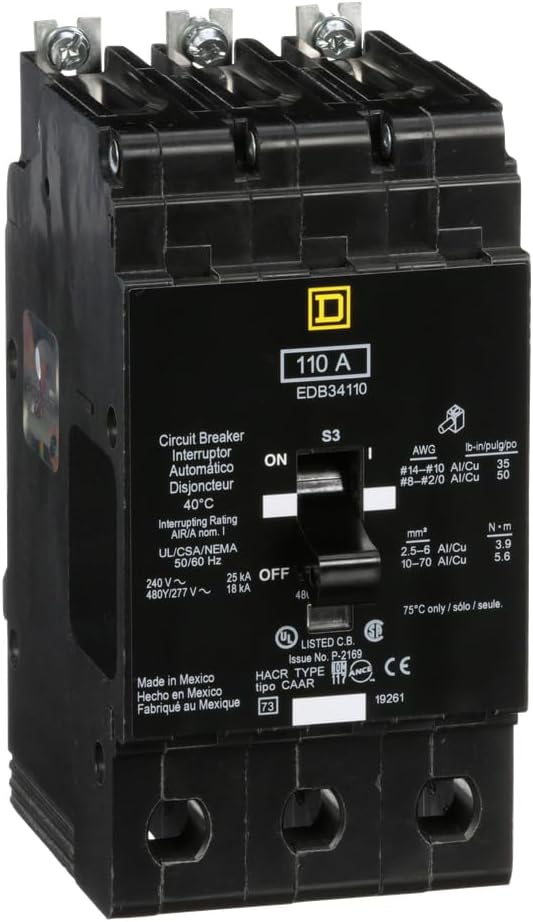

Square D EDB34110 Molded Case Circuit Breaker – 110A – 3-Pole – 480Y/277V AC – Thermal-Magnetic – Bolt-On – EDB Series

The Square D EDB34110 is a 110A, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides indication when a trip has occurred.

The breaker is rated for 480Y/277V AC, is calibrated for 40°C, and includes aluminum lugs for copper and aluminum conductors. It is CSA-rated, HID-rated, HACR-rated, and UL Listed as High-Intensity Discharge.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: EDB34110
• Product Family: EDB Series
• Series: EDB
• Current Rating: 110A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480Y/277V AC
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Trip Indication: Signal Indicator
• Calibration Temperature: 40°C
• Hold Current: 270A
• Trip Current: 875A
• Terminal Type: Aluminum Lugs
• Aluminum Conductor Range: AWG 12–6
• Copper Conductor Range: AWG 14–6
• Application: Square D NF Panelboards
• Brand: Square D
• Authenticity: Authentic Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB34110
• Catalog Number: EDB34110
• Model: EDB34110
• Product Family: EDB Series
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 110A
• Trip Unit: Thermal-Magnetic
• Mounting: Bolt-On
• upc:785901311089

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers.

The EDB34110 provides 110A, 3-pole thermal-magnetic protection for compatible 480Y/277V AC electrical distribution applications. It includes aluminum lugs supporting AWG 12–6 aluminum and AWG 14–6 copper conductors.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, available fault current, conductor size, terminal arrangement, and installation requirements before installation.

Certifications:

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed as High-Intensity Discharge
• 110A Rated
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Calibrated
• Signal Trip Indicator
• Aluminum Lugs
• Genuine Square D / Schneider Electric Product
