Square D EDB36015 Molded Case Circuit Breaker – 15A – 3-Pole / 3-Phase – 600Y/347V AC – HID/HACR – Bolt-On – EDB Series
Select product condition:
Couldn't load pickup availability
Ask an expert

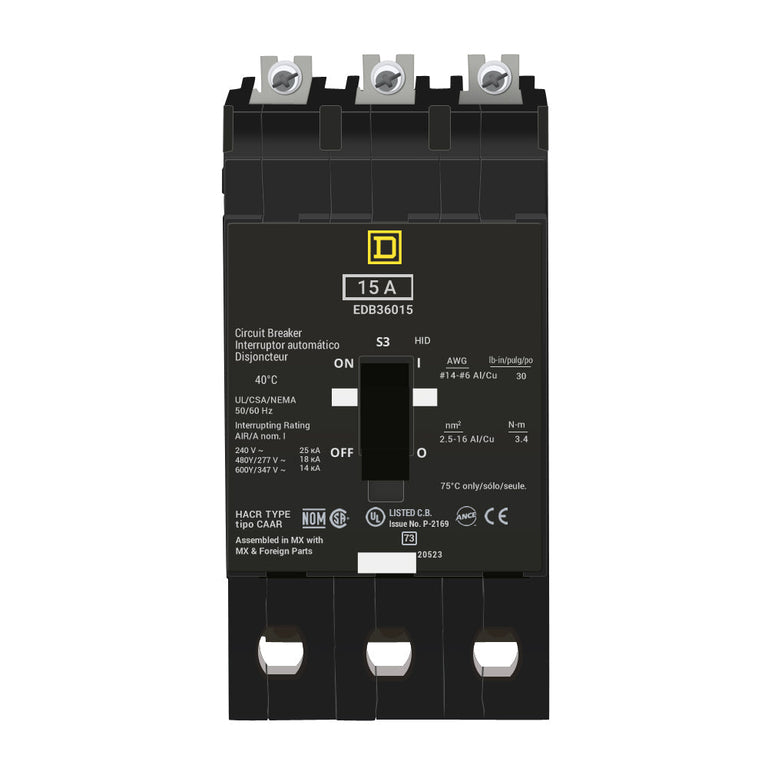

The Square D EDB36015 is a 15A, 3-pole, 3-phase bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides an indication when a trip has occurred.
The EDB36015 is rated for 600Y/347V AC and is CSA-rated, HID-rated, and HACR-rated, with UL Listing as High-Intensity Discharge (HID). The breaker is calibrated for operation at 40°C and includes aluminum lugs supporting specified aluminum and copper conductor sizes.
Specifications:
- Manufacturer: Square D / Schneider Electric
- Product Type: Molded Case Circuit Breaker
- Product Family: EDB Series
- Series: EDB
- Catalog No.: EDB36015
- Current Rating: 15A
- Number of Poles: 3-Pole
- Phase: 3-Phase
- Voltage Rating: 600Y/347V AC
- Protection Type: Thermal-Magnetic
- Mounting Type: Bolt-On
- Trip Indication: Signal Indicator
- Hold Current: 270A
- Trip Current: 875A
- Temperature Rating: 40°C
- Lug Material: Aluminum
- Aluminum Conductor Range: AWG 12–6
- Copper Conductor Range: AWG 14–6
- Application: Square D NF Panelboards and Electrical Distribution
- Brand: Square D / Schneider Electric
Part Numbers & Identification:
- Manufacturer Part Number (MPN): EDB36015
- Catalog Number: EDB36015
- Model: EDB36015
- Product Family: Square D EDB Circuit Breakers
- Series: EDB
- Brand: Square D
- Manufacturer: Schneider Electric
- Product Type: Bolt-On Molded Case Circuit Breaker
- Breaker Configuration: 3-Pole, 15A
- Trip Unit: Thermal-Magnetic
- UPC:785901233930
Compatibility:
Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36015 provides 15A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC electrical distribution applications.
The breaker includes aluminum lugs rated for AWG 12–6 aluminum conductors and AWG 14–6 copper conductors.
Certifications:
- CSA Rated
- HID Rated
- HACR Rated
- UL Listed as High-Intensity Discharge (HID)
- 15A Rated
- 3-Pole / 3-Phase
- 600Y/347V AC Rated
- Thermal-Magnetic Protection
- Bolt-On Mounting
- 40°C Calibrated
- Signal Trip Indicator
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Bolt-On - 15 Amp - 3 Pole - 600 Volt
