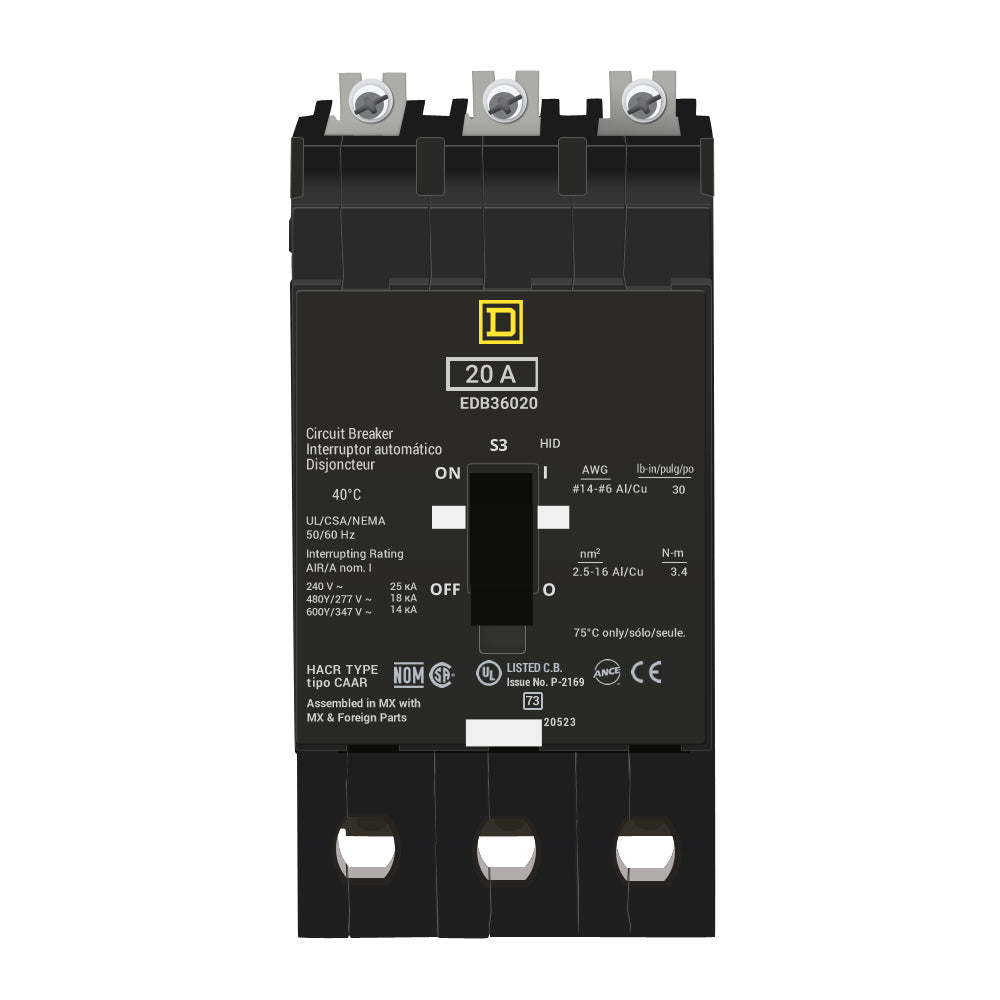

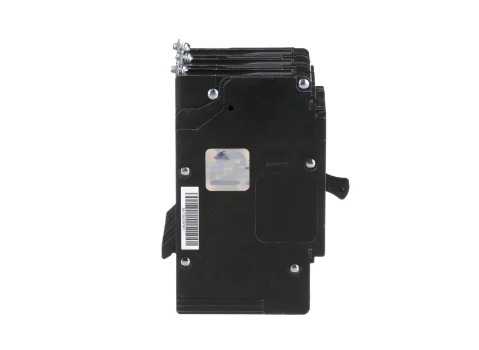

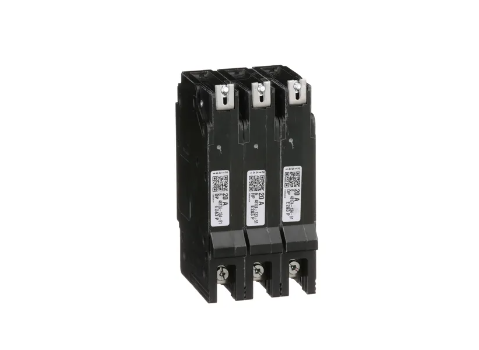

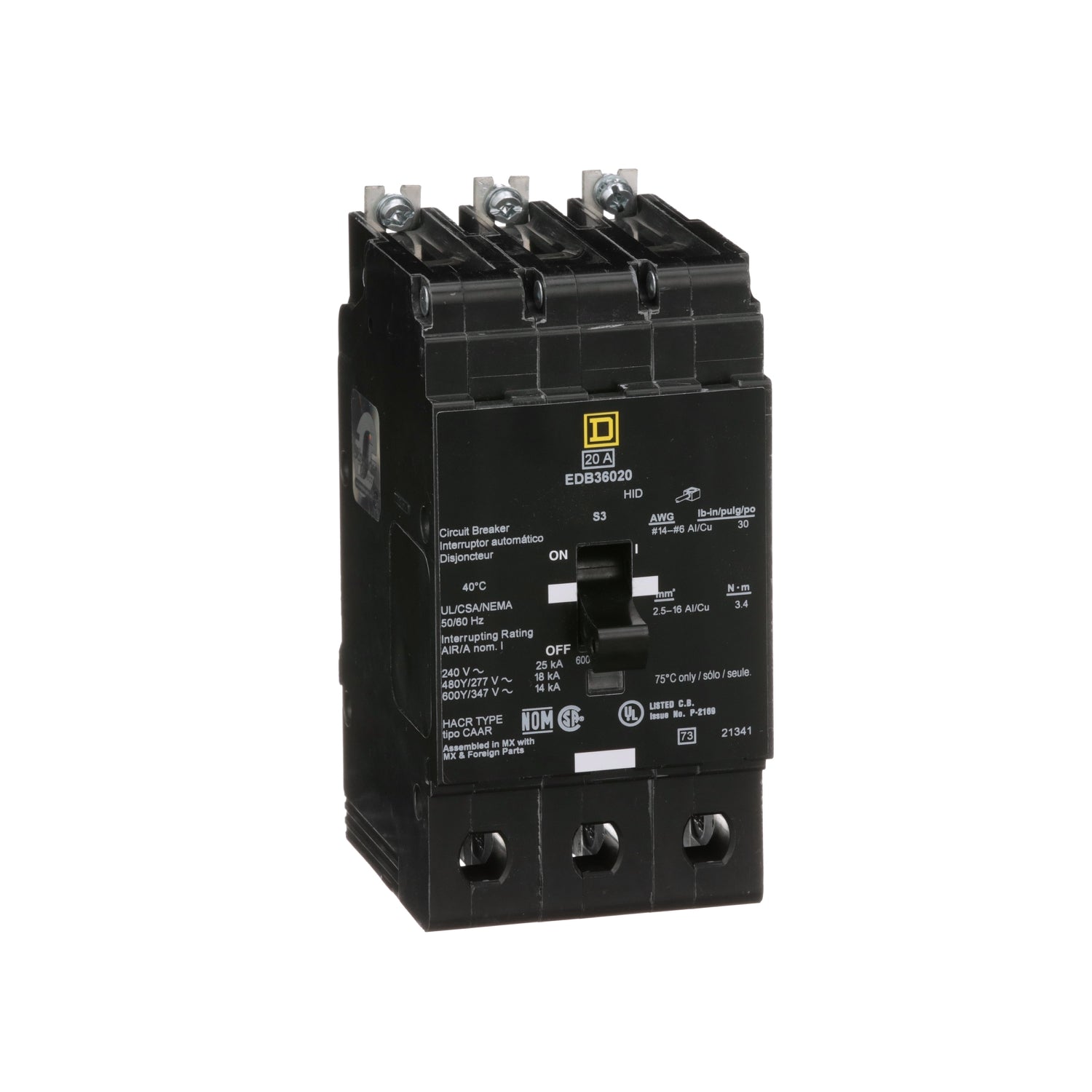

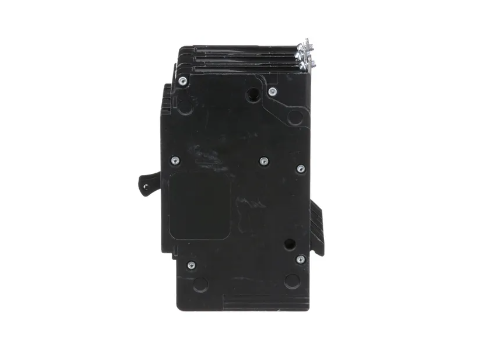

Square D EDB36020 Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600Y/347V AC – HID / HACR Rated – Bolt-On – NF Panelboard Series

The Square D EDB36020 is a 20A, 3-pole, 3-phase bolt-on molded case circuit breaker designed for use with compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides visual indication when a trip has occurred.

The EDB36020 is rated for 600Y/347V AC and is CSA-rated, HID-rated, and HACR-rated. It is UL Listed for High-Intensity Discharge (HID) applications and is calibrated for 40°C operation. The breaker includes aluminum lugs for copper and aluminum conductors.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB
• Series: EDB
• Catalog No.: EDB36020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Signal Indicator: Trip Indication
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Type: Aluminum Lugs
• Aluminum Conductor Range: AWG 12–6
• Copper Conductor Range: AWG 14–6
• Ratings: CSA Rated, HID Rated, HACR Rated
• Application: Electrical Distribution, Panelboard Protection, and HID Applications
• Used With: Square D NF Panelboards
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB36020
• Catalog Number: EDB36020
• Model: EDB36020
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• UPC:785901234203

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36020 provides 20A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC electrical distribution applications.

The breaker includes aluminum lugs accommodating AWG 12–6 aluminum and AWG 14–6 copper conductors. Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, terminal requirements, conductor size, and installation requirements before installation.

Certifications:

• UL Listed for High-Intensity Discharge (HID) Applications
• CSA Rated
