Square D EDB36030 Molded Case Circuit Breaker – 30A – 3-Pole / 3-Phase – 600Y/347V AC – Key Capacity Not Specified – Bolt-On – EDB Series

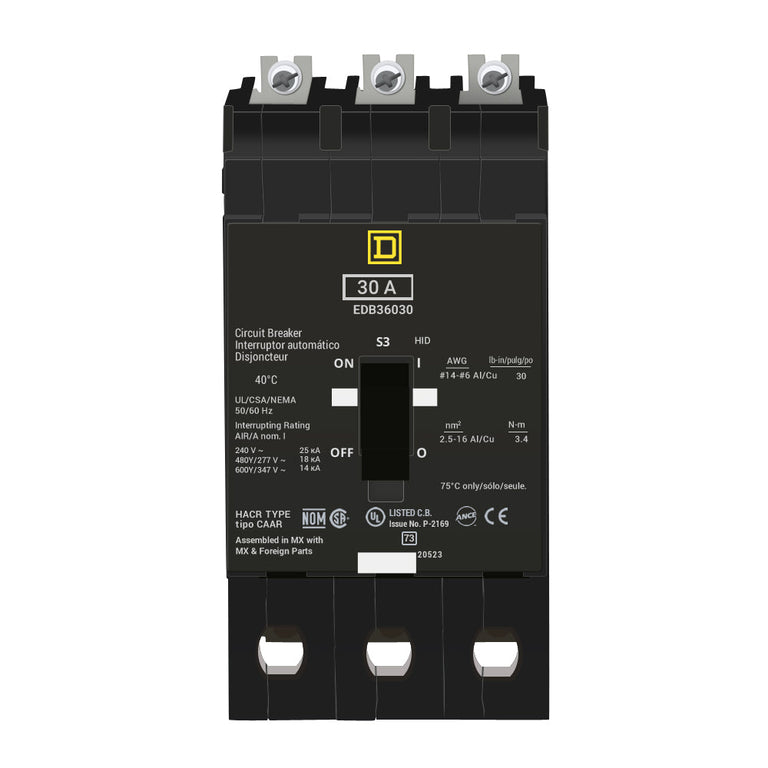

The Square D EDB36030 is a 30A, 3-pole, 3-phase bolt-on molded case circuit breaker from the Square D / Schneider Electric EDB Series. It is designed for use in compatible Square D NF Panelboards and provides thermal-magnetic circuit protection.

The EDB36030 is rated for 600Y/347V AC and features a trip signal indicator to indicate when a trip has occurred. The breaker is calibrated for operation at 40°C and is identified as CSA-rated, HID-rated, and HACR-rated, with UL Listed High-Intensity Discharge capability.

The available product information also specifies aluminum lugs and hold/trip current values.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB
• Series: EDB
• Catalog No.: EDB36030
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 600Y/347V AC
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Application: Square D NF Panelboards
• Trip Indicator: Signal Indicator
• Hold Current: 270A
• Trip Current: 875A
• Temperature Calibration: 40°C
• Lugs: Aluminum
• Ratings: CSA, HID, HACR
• UL Listing: UL Listed for High-Intensity Discharge
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB36030
• Catalog Number: EDB36030
• Model: EDB36030
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Bolt-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 30A
• UPC:785901233961

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36030 provides 30A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC applications.

The breaker uses bolt-on mounting, includes aluminum lugs, and is calibrated for 40°C operation. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, conductor requirements, lug configuration, and installation specifications before installation.

Certifications:

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed for High-Intensity Discharge
• 30A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Calibrated
• Square D / Schneider Electric EDB Series
