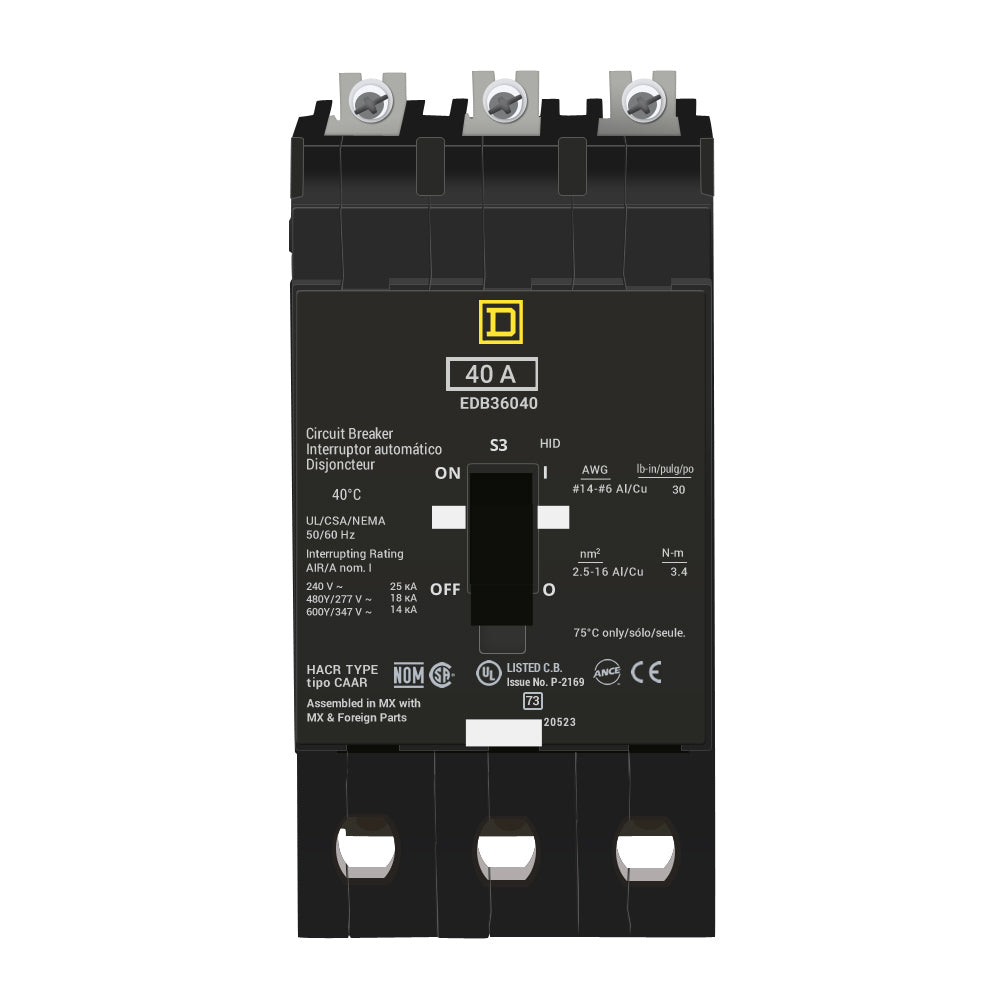

Square D EDB36040 Molded Case Circuit Breaker – 40A – 3-Pole / 3-Phase – 600Y/347V AC – Trip Current 875A – Bolt-On – EDB Series
Select product condition:
Couldn't load pickup availability
Ask an expert
The Square D EDB36040 is a 40A, 3-pole, 3-phase bolt-on molded case circuit breaker from the Square D / Schneider Electric EDB Series. It is designed for use in compatible Square D NF Panelboards and provides thermal-magnetic overcurrent protection.
The EDB36040 is rated for 600Y/347V AC and features a signal indicator to indicate when a trip has occurred. The breaker is calibrated for operation at 40°C and includes aluminum lugs. It is identified as CSA-rated, HID-rated, HACR-rated, and UL Listed as High-Intensity Discharge.
Specifications:
- Manufacturer: Square D / Schneider Electric
- Product Type: Molded Case Circuit Breaker
- Product Family: EDB
- Series: EDB
- Catalog No.: EDB36040
- Current Rating: 40A
- Number of Poles: 3-Pole
- Phase: 3-Phase
- System Voltage: 600Y/347V AC
- Protection Type: Thermal-Magnetic
- Mounting Type: Bolt-On
- Application: Square D NF Panelboards
- Trip Indication: Signal Indicator
- Hold Current: 270A
- Trip Current: 875A
- Temperature Calibration: 40°C
- Terminal / Lug Material: Aluminum
- Aluminum Lug Wire Range: AWG 12–6
- Copper Lug Wire Range: AWG 14–6
- Ratings: CSA, HID, HACR
- Application: Electrical Distribution and Overcurrent Protection
- Brand: Square D / Schneider Electric
Part Numbers & Identification:
- Manufacturer Part Number (MPN): EDB36040
- Catalog Number: EDB36040
- Model: EDB36040
- Product Family: Square D EDB Circuit Breakers
- Series: EDB
- Brand: Square D
- Manufacturer: Schneider Electric
- Product Type: Molded Case Circuit Breaker
- Breaker Configuration: 3-Pole, 40A
- Mounting Configuration: Bolt-On
- Current Rating: 40A
- UPC: 785901234302
Compatibility:
Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36040 provides 40A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC electrical distribution applications.
The breaker includes aluminum lugs rated for AWG 12–6 aluminum conductors and AWG 14–6 copper conductors. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, pole configuration, lug requirements, conductor size, trip characteristics, and installation requirements before installation.
Certifications:
- UL Listed
- CSA Rated
- HID Rated
- HACR Rated
- 40A Rated
- 3-Pole / 3-Phase
- 600Y/347V AC Rated
- Thermal-Magnetic Protection
- Bolt-On Mounting
- Signal Trip Indicator
- 40°C Calibrated
- Aluminum Lugs
- High-Intensity Discharge (HID) Listed
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Bolt-On - 40 Amp - 3 Pole - 600 Volt
