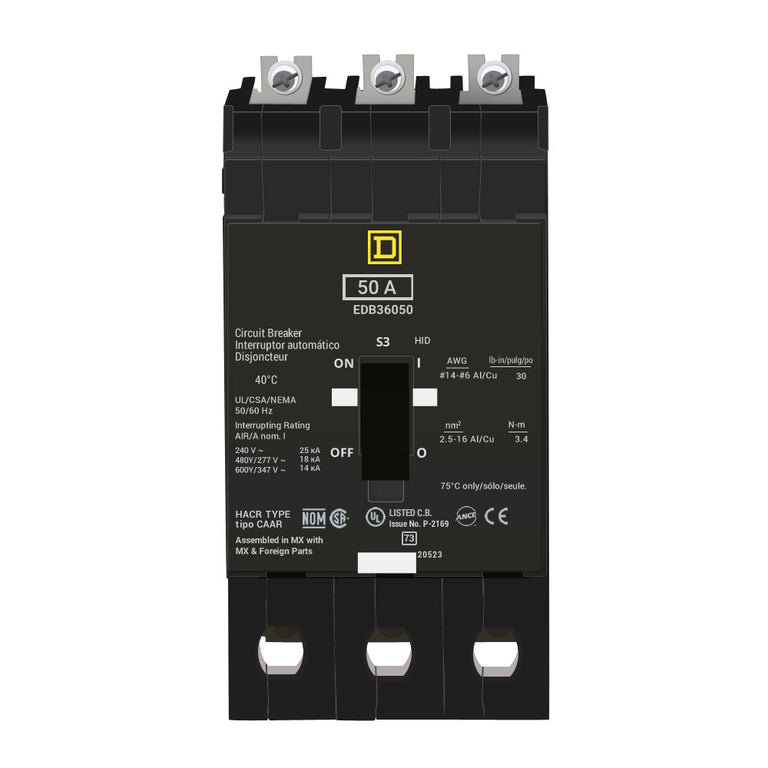

Square D EDB36050 Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 600Y/347V AC – Trip Current 875A – Bolt-On – EDB Series

The Square D EDB36050 is a 50A, 3-pole, 3-phase bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides visual indication when a trip has occurred.

The EDB36050 is rated for 600Y/347V AC and is calibrated for operation at 40°C. It is CSA-rated, HID-rated, and HACR-rated, and is UL Listed as High-Intensity Discharge (HID).

The breaker has a specified hold current of 270A and trip current of 875A. It is equipped with aluminum lugs accepting 12–6 AWG aluminum and 14–6 AWG copper conductors.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB
• Series: EDB
• Catalog No.: EDB36050
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 600Y/347V AC
• Protection Type: Thermal-Magnetic
• Trip Unit: Thermal-Magnetic
• Mounting / Connection: Bolt-On
• Trip Indication: Signal Indicator
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Type: Aluminum Lugs
• Aluminum Conductor Range: AWG 12–6
• Copper Conductor Range: AWG 14–6
• Ratings: CSA, HID, HACR
• UL Listing: UL Listed as High-Intensity Discharge
• Application: Square D NF Panelboards and Electrical Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB36050
• Catalog Number: EDB36050
• Model: EDB36050
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Bolt-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC:785901234807

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36050 provides 50A, 3-pole thermal-magnetic protection for compatible 600Y/347V AC electrical distribution systems.

The breaker uses aluminum lugs and accommodates 12–6 AWG aluminum or 14–6 AWG copper conductors.

Certifications:

• UL Listed as High-Intensity Discharge (HID)
• CSA Rated
• HID Rated
• HACR Rated
• 50A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• Thermal-Magnetic Protection
• Signal Trip Indicator
• 40°C Calibration
• Bolt-On Mounting
• Aluminum Lugs
