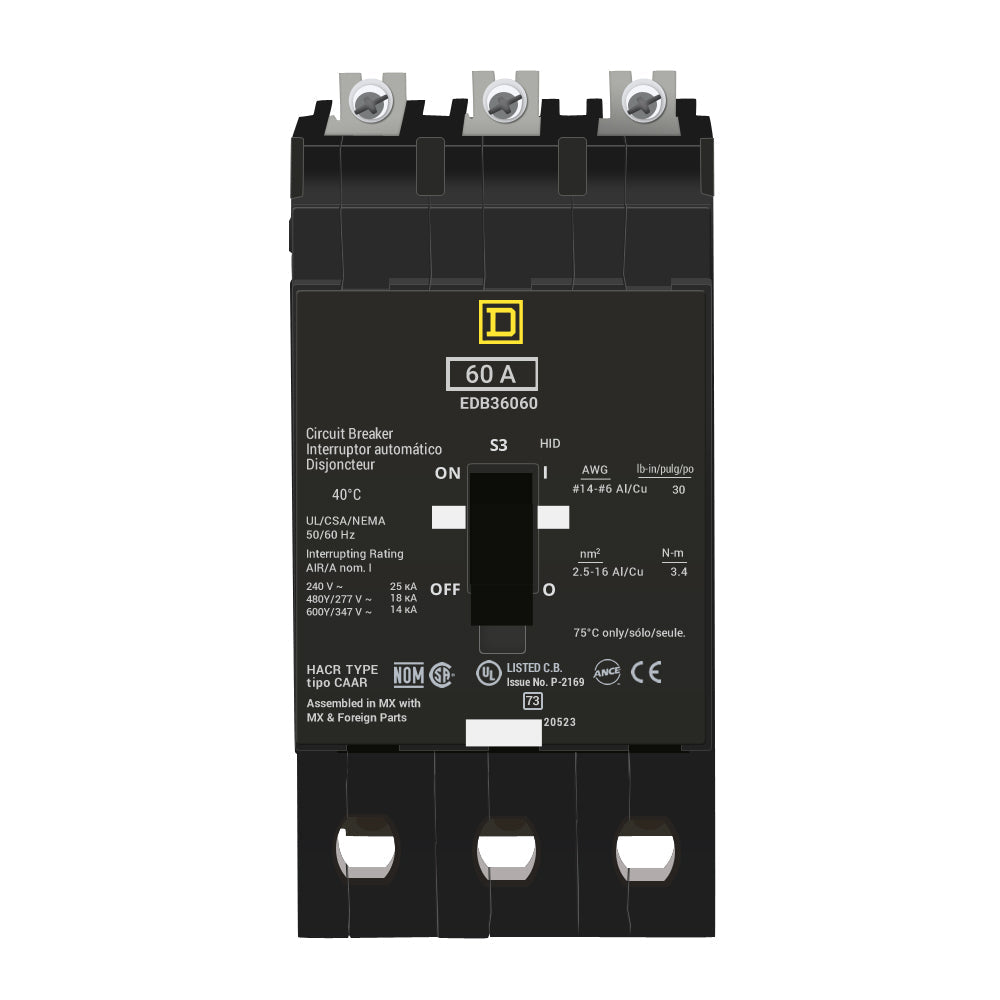

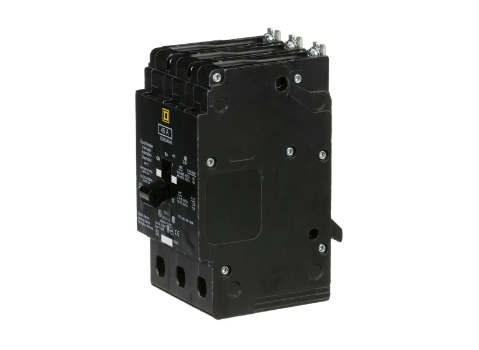

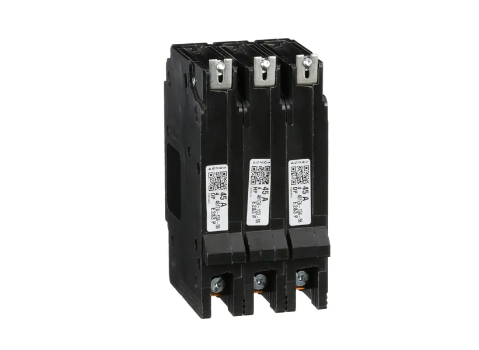

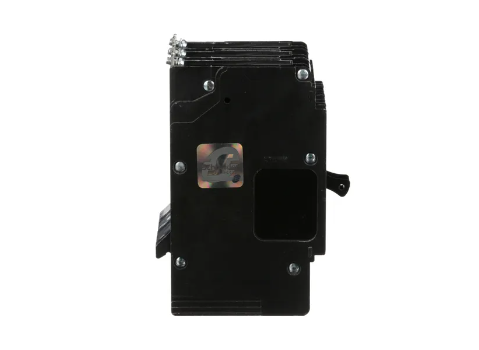

Square D EDB36060 Molded Case Circuit Breaker – 60A – 3-Pole – 600Y/347V AC – Thermal-Magnetic – Bolt-On – EDB Series

The Square D EDB36060 is a 60A, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides indication when a trip has occurred.

The EDB36060 is rated 60A at 600Y/347V AC and is calibrated for 40°C. It includes aluminum lugs with terminal ranges of AWG 12–6 for aluminum and AWG 14–6 for copper. The breaker has a 270A hold current and an 875A trip current as specified.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB
• Series: EDB
• Catalog No.: EDB36060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 600Y/347V AC
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Trip Indicator: Signal Indicator
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Type: Aluminum Lugs
• Aluminum Terminal Range: AWG 12–6
• Copper Terminal Range: AWG 14–6
• Application: Electrical Distribution and Overcurrent Protection
• Used With: Square D NF Panelboards
• Brand: Square D
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB36060
• Catalog Number: EDB36060
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Bolt-On Molded Case Circuit Breaker
• Model: EDB36060
• Breaker Configuration: 3-Pole, 60A
• upc:785901235620

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36060 provides 60A, 3-pole protection for compatible 600Y/347V AC, 3-phase electrical distribution applications.

The breaker uses aluminum lugs and accommodates AWG 12–6 aluminum or AWG 14–6 copper conductors. Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, terminal requirements, conductor size, and installation requirements before installation.

Certifications:

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed – High-Intensity Discharge
• 60A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Calibration
• Signal Trip Indicator
