Square D EDB36100 Molded Case Circuit Breaker – 100A – 3-Pole – 600Y/347V AC – HID / HACR Rated – Bolt-On – EDB Series

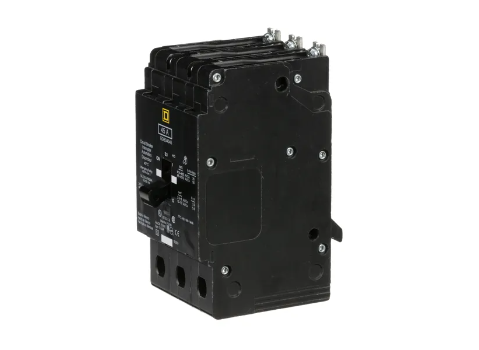

The Square D EDB36100 is a 100A, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator that provides indication when a trip has occurred.

The EDB36100 is rated for 600Y/347V AC and is calibrated for 40°C. It is CSA-rated, HID-rated, and HACR-rated, and is UL Listed as High-Intensity Discharge (HID).

The breaker uses aluminum lugs and accommodates 12–6 AWG aluminum and 14–6 AWG copper conductors.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: EDB
• Series: EDB
• Catalog No.: EDB36100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 600Y/347V AC
• Protection Type: Thermal-Magnetic
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Trip Indication: Signal Indicator
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Type: Aluminum Lugs
• Aluminum Wire Range: 12–6 AWG
• Copper Wire Range: 14–6 AWG
• Application: Square D NF Panelboards and Electrical Distribution
• Ratings: CSA, HID, HACR
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EDB36100
• Catalog Number: EDB36100
• Model: EDB36100
• Product Family: Square D EDB Circuit Breakers
• Series: EDB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:785901296386

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EDB Series bolt-on molded case circuit breakers. The EDB36100 provides 100A thermal-magnetic overcurrent protection for compatible 600Y/347V AC, 3-phase applications.

The breaker includes a signal indicator and aluminum lugs rated for 12–6 AWG aluminum and 14–6 AWG copper conductors.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, terminal requirements, conductor size, interrupting rating, and installation requirements before installation.

Certifications:

• UL Listed as High-Intensity Discharge (HID)
• CSA Rated
• HID Rated
• HACR Rated
• 100A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Signal Trip Indicator
• 40°C Calibration
• Aluminum Lugs
