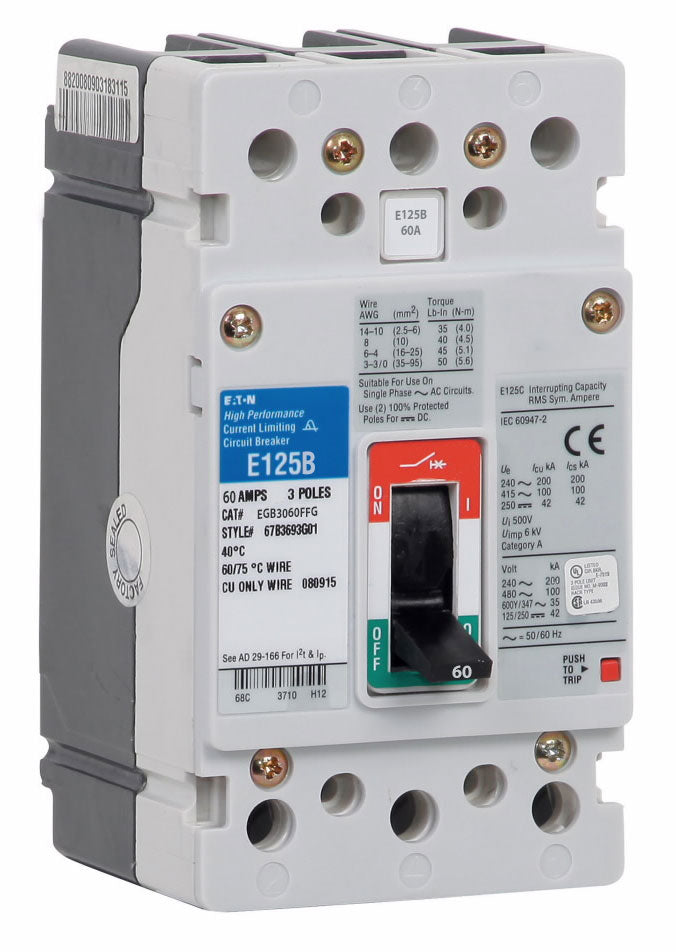

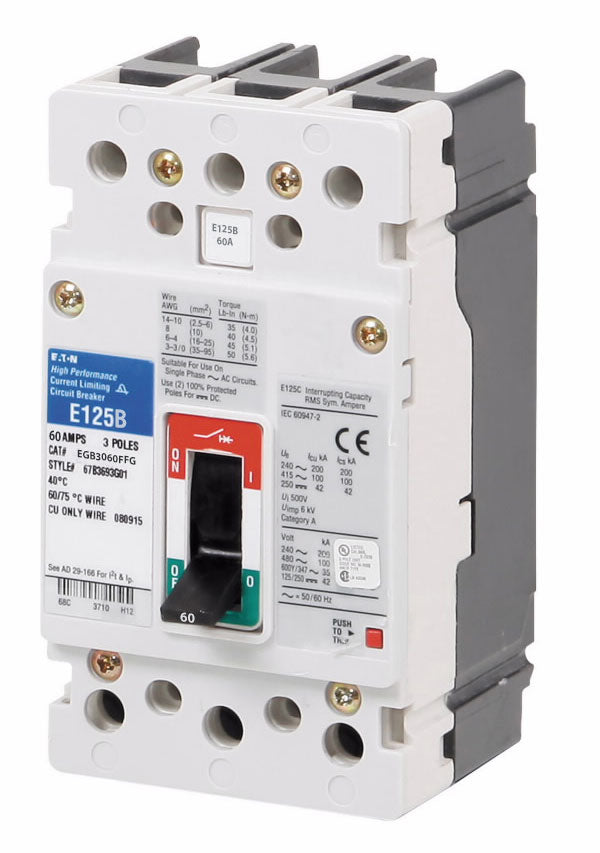

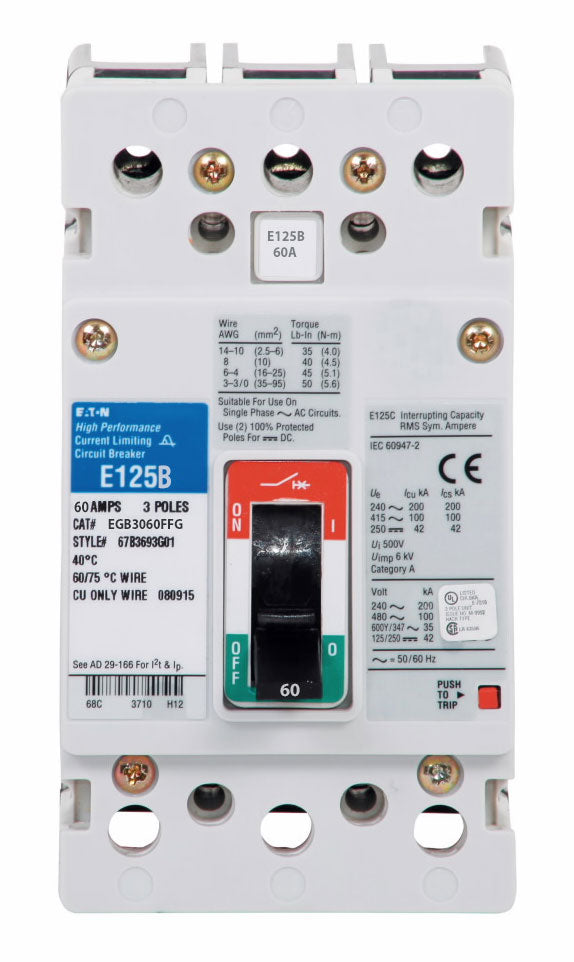

Eaton EGB3060FFG Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600Y/347V AC – 25kA @ 240V / 18kA @ 480V – Line & Load – Series G EG-Frame

The Eaton EGB3060FFG is a 60A, 3-pole molded case circuit breaker from the Eaton Series G EG-Frame. It is a complete breaker designed for compatible electrical distribution applications.

The EGB3060FFG is rated for 600Y/347V AC and provides interrupting ratings of 25kA at 240V AC and 18kA at 480V AC. It features fixed thermal and fixed magnetic trip protection, line- and load-side connections, and operates at 50/60Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: EG
• Frame: EG-Frame
• Catalog No.: EGB3060FFG
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 25kA @ 240V AC; 18kA @ 480V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Breaker Configuration: Complete Breaker
• Connection: Line and Load
• Frequency: 50/60Hz
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGB3060FFG
• Catalog Number: EGB3060FFG
• Model: EGB3060FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: EG
• Frame: EG-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Trip Configuration: Fixed Thermal, Fixed Magnetic
• UPC:782114876374

Compatibility:

Designed for use with compatible Eaton Series G EG-Frame electrical distribution equipment that accepts EG Series molded case circuit breakers. The EGB3060FFG provides 60A, 3-pole overcurrent protection for compatible 600Y/347V AC electrical distribution applications.

The breaker features fixed thermal and fixed magnetic trip protection with line- and load-side connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Eaton Series G
• EG-Frame
• 60A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 25kA @ 240V AC Interrupting Rating
• 18kA @ 480V AC Interrupting Rating
• Fixed Thermal Trip
• Fixed Magnetic Trip
• Complete Breaker
• Line and Load Connections
• 50/60Hz
