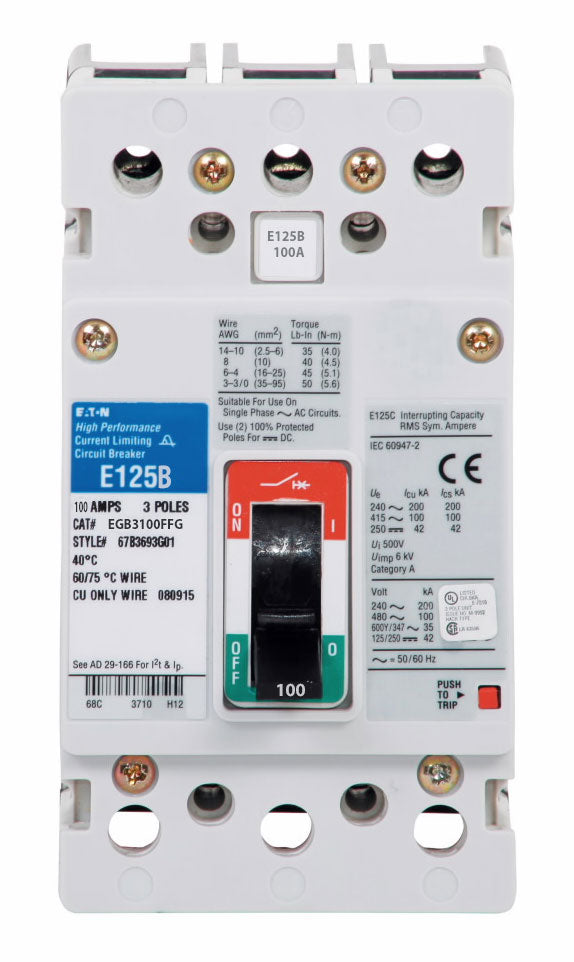

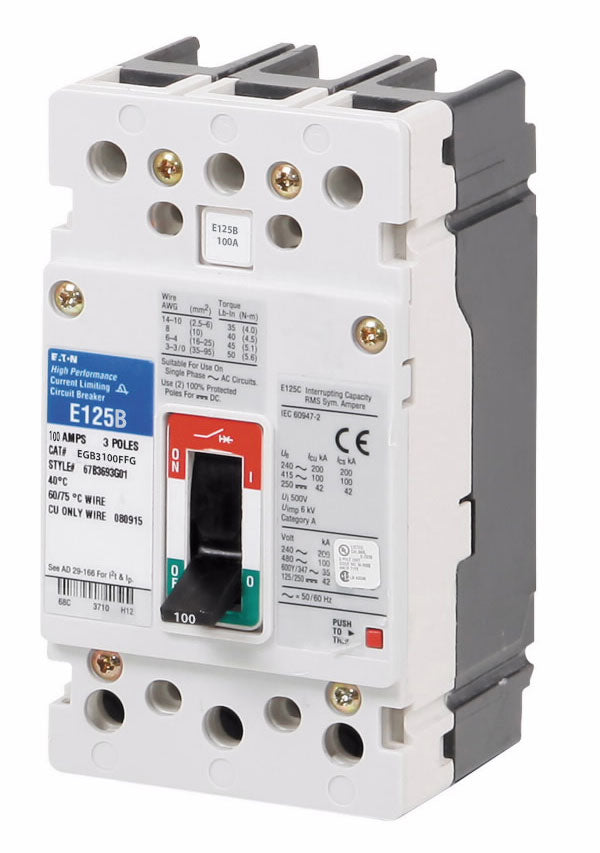

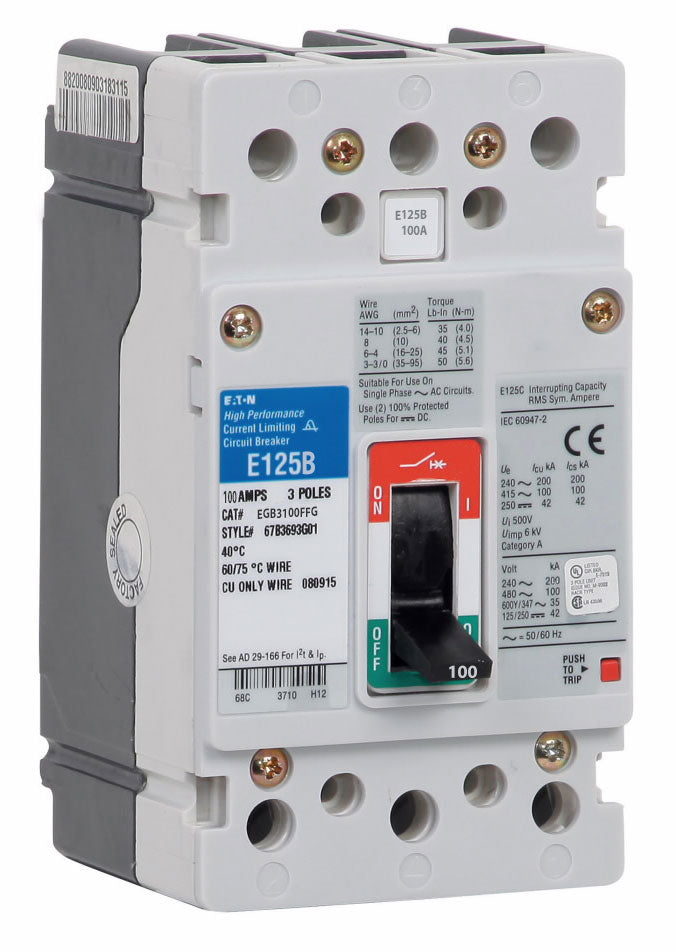

Eaton EGB3100FFG Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 480V – 18kA @ 480V – Feed-Thru – Series G EGB

The Eaton EGB3100FFG is a 100A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series G Type EGB. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The EGB3100FFG is rated for 480V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and a 40°C operating rating.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: G
• Type: EGB
• Catalog No.: EGB3100FFG
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGB3100FFG
• Catalog Number: EGB3100FFG
• Model: EGB3100FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: G
• Type: EGB
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:782114876428

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type EGB electrical distribution equipment that accepts EGB Series molded case circuit breakers. The EGB3100FFG provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 480V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
