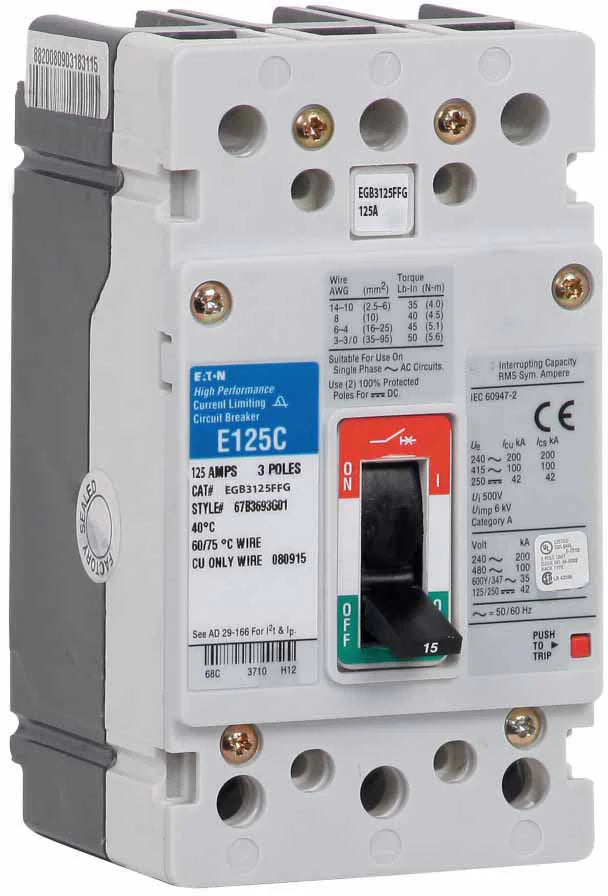

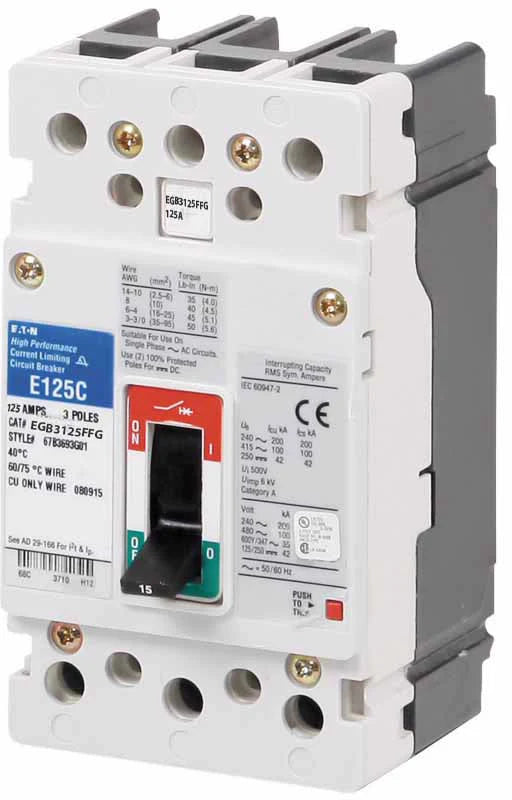

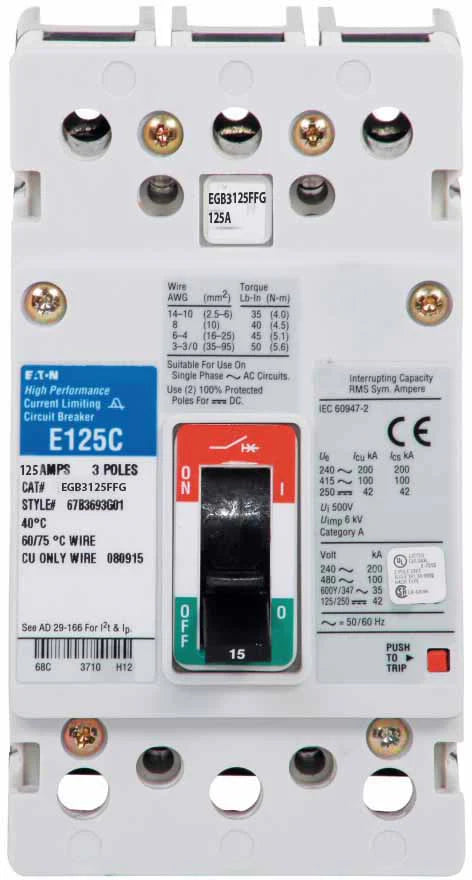

Eaton EGB3125FFG Molded Case Circuit Breaker – 125A – 3-Pole – 600Y/347V AC – 25kA @ 240V / 18kA @ 480V – Series G EG

The Eaton EGB3125FFG is a 125A, 3-pole molded case circuit breaker from the Eaton Series G EG-Frame. It is supplied as a complete breaker with fixed thermal and fixed magnetic trip protection.

The breaker is rated for 600Y/347V AC and provides interrupting ratings of 25kA at 240V AC and 18kA at 480V AC. It is designed for compatible electrical distribution applications and supports 50/60 Hz operation.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: EG
• Frame: EG-Frame
• Catalog No.: EGB3125FFG
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: Not specified
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 25kA @ 240V AC; 18kA @ 480V AC
• Protection Type: Fixed Thermal / Fixed Magnetic
• Trip Type: Fixed Thermal, Fixed Magnetic
• Breaker Configuration: Complete Breaker
• Connection: Line and Load
• Frequency: 50/60 Hz
• Conductor / Terminal System: Metric
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGB3125FFG
• Catalog Number: EGB3125FFG
• Model: EGB3125FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: EG
• Frame: EG-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 125A
• UPC:782114876442

Compatibility:

Designed for use with compatible Eaton Series G EG-Frame electrical distribution equipment that accepts the EGB3125FFG molded case circuit breaker. The breaker provides 125A fixed thermal and fixed magnetic protection for compatible 600Y/347V AC applications.

The breaker is supplied as a complete breaker with line- and load-side connections and metric terminal configuration.
