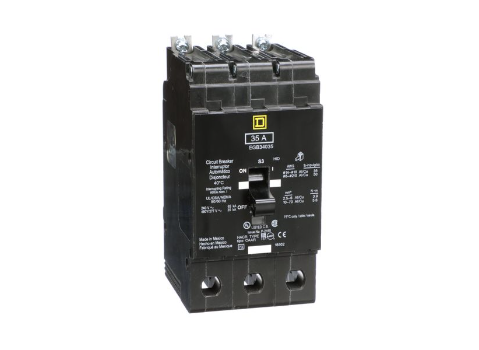

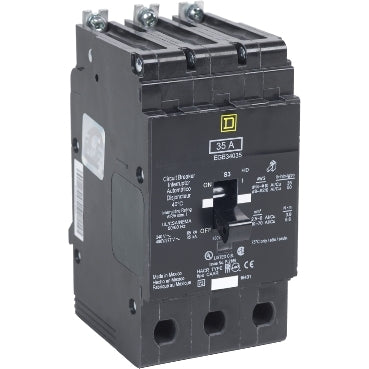

Square D EGB34035 Molded Case Circuit Breaker – 35A – 3-Pole – 480Y/277V AC – Thermal-Magnetic – Bolt-On – EGB Series

The Square D EGB34035 is a 35A, 3-pole bolt-on molded case circuit breaker designed for use with compatible Square D NF Panelboards. It features a thermal-magnetic trip unit and a signal indicator to indicate when a trip has occurred. The breaker is rated for 480Y/277V AC and is calibrated for 40°C operation.

The EGB34035 includes aluminum terminal lugs rated for AWG 12–6 aluminum and AWG 14–6 copper conductors. It is CSA-rated, HID-rated, and HACR-rated, and is UL Listed as High-Intensity Discharge.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: EGB34035
• Product Family: EGB Series
• Series: EGB
• Current Rating: 35A
• Number of Poles: 3-Pole
• Voltage Rating: 480Y/277V AC
• Phase: 3-Phase
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Application: Square D NF Panelboards
• Signal Indicator: Trip Indication
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Material: Aluminum
• Aluminum Wire Range: AWG 12–6
• Copper Wire Range: AWG 14–6
• Brand: Square D
• Authenticity: Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGB34035
• Catalog Number: EGB34035
• Model: EGB34035
• Product Family: EGB
• Series: EGB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 35A
• upc:
  785901311164

Compatibility:

Designed for use with compatible Square D NF Panelboards that accept EGB Series bolt-on molded case circuit breakers. The EGB34035 is suitable for 35A, 3-pole, 480Y/277V AC electrical distribution applications and uses aluminum terminal lugs.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal requirements, conductor size, and installation requirements before installation.

Certifications:

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed as High-Intensity Discharge
• 35A Rated
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Calibrated
