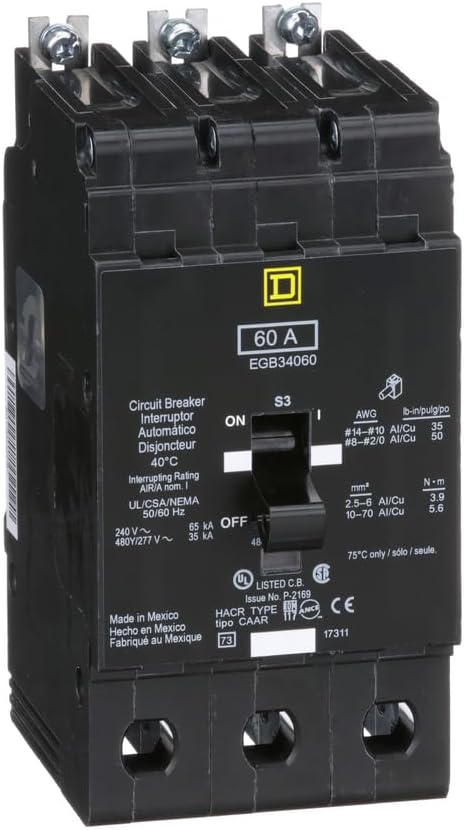

Square D EGB34060 Molded Case Circuit Breaker – 60A – 3-Pole – 480Y/277V AC – Thermal-Magnetic – Bolt-On – EGB Series

The Square D EGB34060 is a 60A, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It is rated for 480Y/277V AC systems and features a thermal-magnetic trip unit for circuit protection.

The breaker includes a signal indicator to indicate when a trip has occurred and is calibrated for a 40°C ambient temperature. It is equipped with aluminum lugs supporting 12–6 AWG aluminum and 14–6 AWG copper conductors.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: EGB
• Catalog No.: EGB34060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 480Y/277V AC
• Trip Technology: Thermal-Magnetic
• Mounting Type: Bolt-On
• Signal Indicator: Trip Indication
• Hold Current: 270A
• Trip Current: 875A
• Ambient Temperature Rating: 40°C
• Terminal Type: Aluminum Lugs
• Aluminum Wire Range: 12–6 AWG
• Copper Wire Range: 14–6 AWG
• Application: Square D NF Panelboards
• Ratings: CSA Rated, HID Rated, HACR Rated
• HID Rating: UL Listed High-Intensity Discharge

Part Numbers & Identification

• Manufacturer Part Number (MPN): EGB34060
• Catalog Number: EGB34060
• Product Family: EGB Series
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: EGB34060
• UPC:785901073055

Compatibility

Designed for use with compatible Square D NF Panelboards requiring an EGB Series bolt-on molded case circuit breaker. The EGB34060 is suitable for compatible 60A, 3-pole, 480Y/277V AC applications with thermal-magnetic protection.

Always verify the exact panelboard model, system voltage, terminal requirements, and approved breaker combinations before installation.

Certifications

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed High-Intensity Discharge
