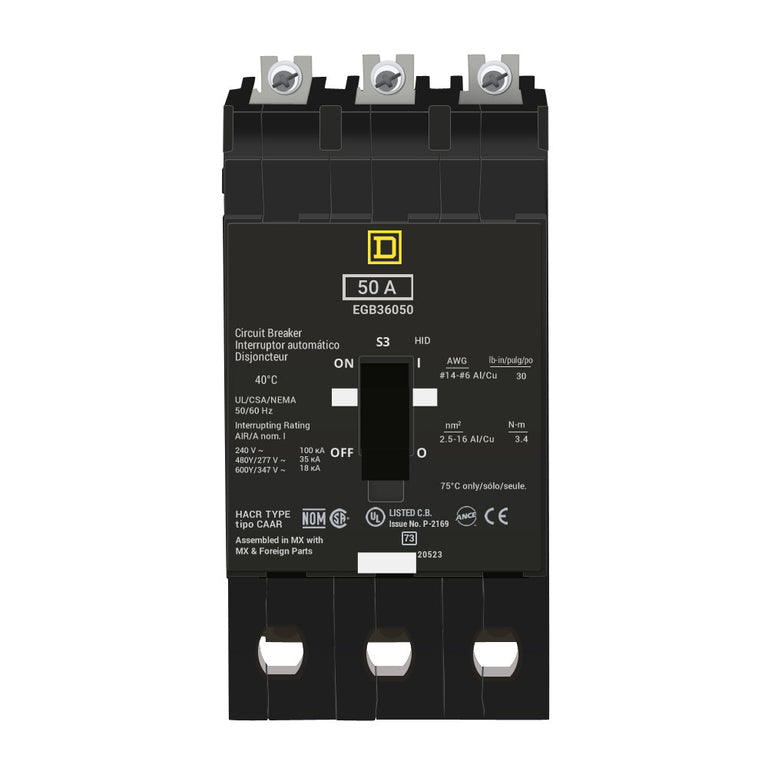

Square D EGB36050 50 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347 V AC – Bolt-On – EGB Series

The Square D EGB36050 is a 50 Amp, 3-pole molded case circuit breaker manufactured by Schneider Electric under the Square D brand. Designed for use in compatible Square D NF panelboards, it features a thermal-magnetic trip unit and a trip indicator that signals when the breaker has tripped. The breaker is calibrated for 40°C and includes aluminum lugs with specified wire ranges for aluminum and copper conductors.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: EGB
• Catalog Number / MPN: EGB36050
• Primary Rating: 50 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600Y/347 V AC
• Trip Type: Thermal-Magnetic
• Trip Indicator: Yes
• Hold Current: 270 A
• Trip Current: 875 A
• Calibration Temperature: 40°C
• Connection / Mounting: Bolt-On
• Terminals: Aluminum Lugs
• Wire Range (Aluminum): AWG 12–6
• Wire Range (Copper): AWG 14–6

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: EGB36050
• Series: EGB
• Current Rating: 50 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Connection: Bolt-On
• Terminals: Aluminum Lugs
• UPC:785901235576

Compatibility

The Square D EGB36050 is designed for use in compatible Square D NF panelboards.

Certifications

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed as High-Intensity Discharge (HID)
