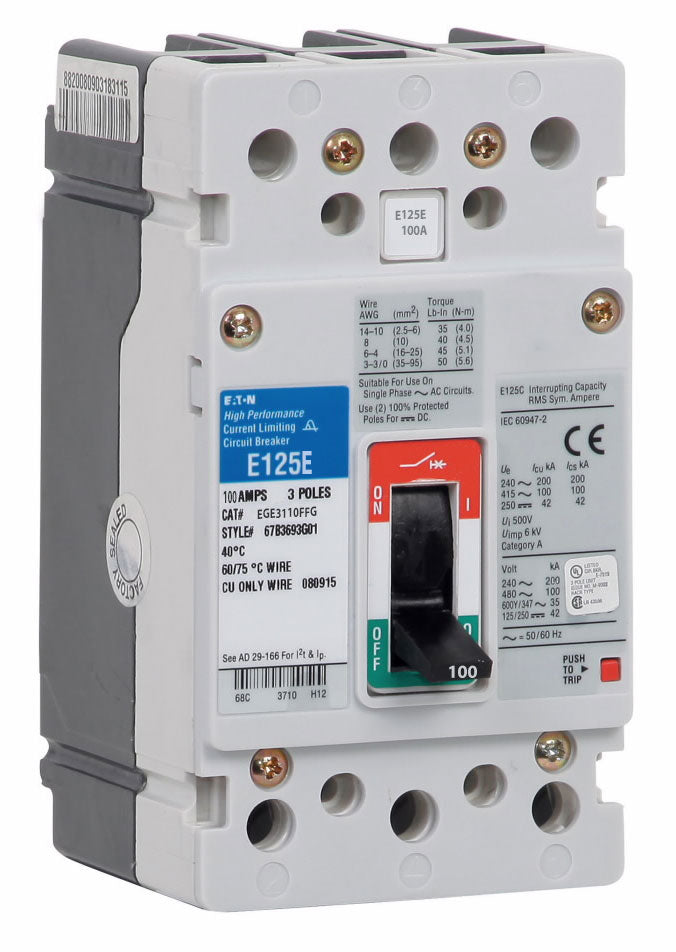

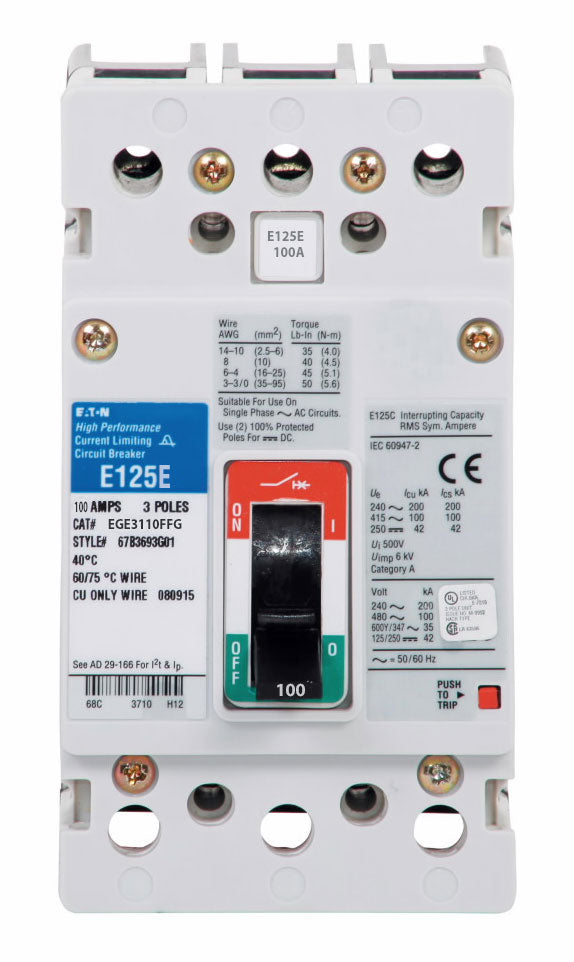

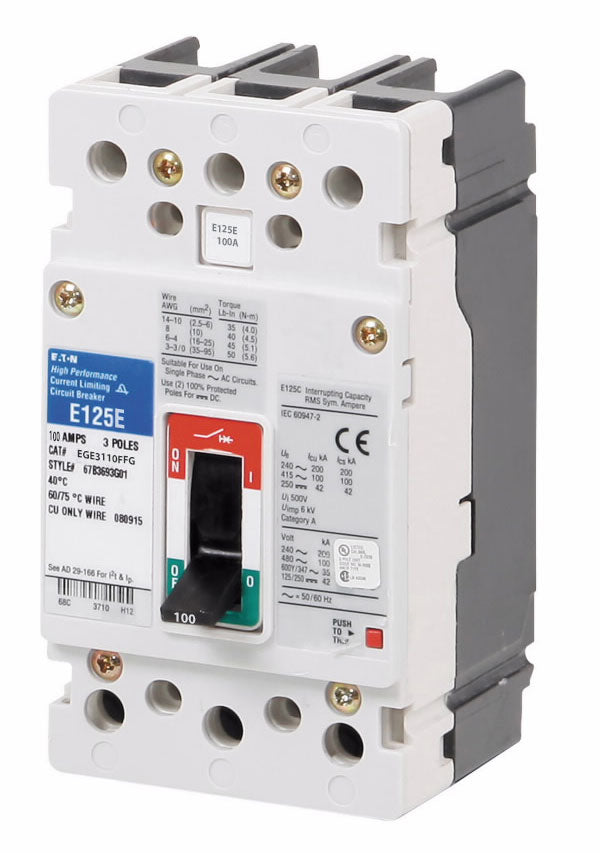

Eaton EGE3110FFG Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600Y/347V AC – 35kA @ 240V – Series G EG

The Eaton EGE3110FFG is a 100A, 3-pole molded case circuit breaker from the Eaton Series G EG Series with an EG-frame. It features fixed thermal and fixed magnetic trip protection and is designed for compatible electrical distribution applications.

The breaker is rated for 600Y/347V AC and operates at 50/60 Hz. It provides interrupting ratings of 35kAIC at 240V AC, 25kAIC at 480V AC, and 18kAIC at 600Y/347V AC. Line- and load-side connection capability is specified.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: EG
• Frame: EG-Frame
• Type: EG
• Catalog No.: EGE3110FFG
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 35kAIC @ 240V AC; 25kAIC @ 480V AC; 18kAIC @ 600Y/347V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Connection: Line and Load
• Frequency: 50/60 Hz
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGE3110FFG
• Catalog Number: EGE3110FFG
• Model: EGE3110FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: EG
• Frame: EG-Frame
• Type: EG
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Fixed Thermal, Fixed Magnetic
• UPC:782114876831

Compatibility:

Designed for use with compatible Eaton Series G EG-frame electrical distribution equipment that accepts EG Series molded case circuit breakers. The EGE3110FFG provides 100A, 3-pole protection for compatible 600Y/347V AC electrical distribution applications.

The breaker features fixed thermal and fixed magnetic trip protection with line- and load-side connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip characteristics, terminal arrangement, and installation requirements before installation.

Certifications:

• Eaton Series G
• EG-Frame
• 100A Rated
• 3-Pole / 3-Phase
• 600Y/347V AC Rated
• 35kAIC @ 240V AC Interrupting Rating
• 25kAIC @ 480V AC Interrupting Rating
• 18kAIC @ 600Y/347V AC Interrupting Rating
• Fixed Thermal Trip
• Fixed Magnetic Trip
• Line and Load Connections
• 50/60 Hz
