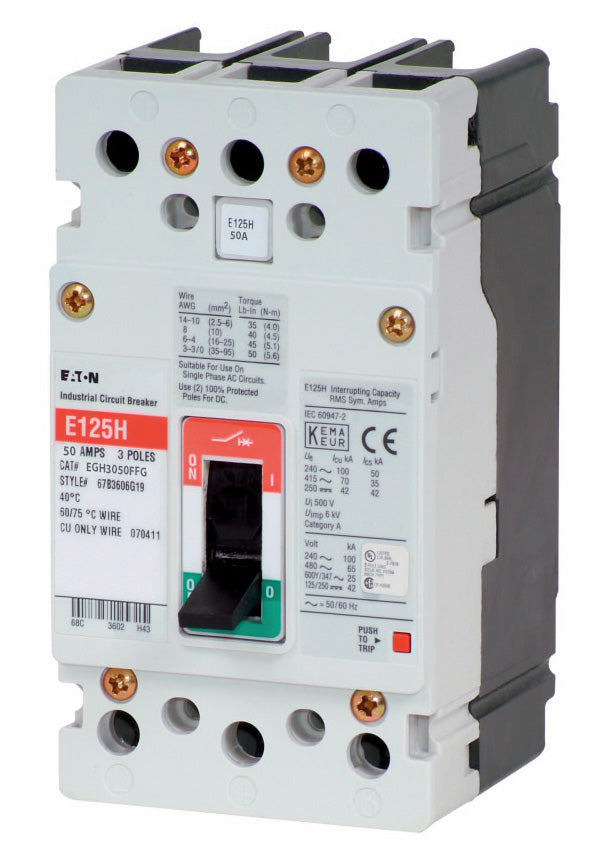

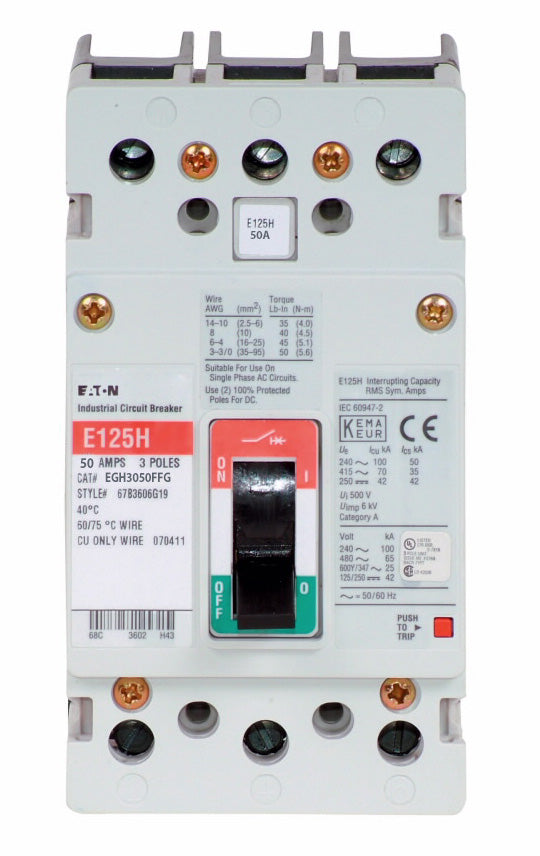

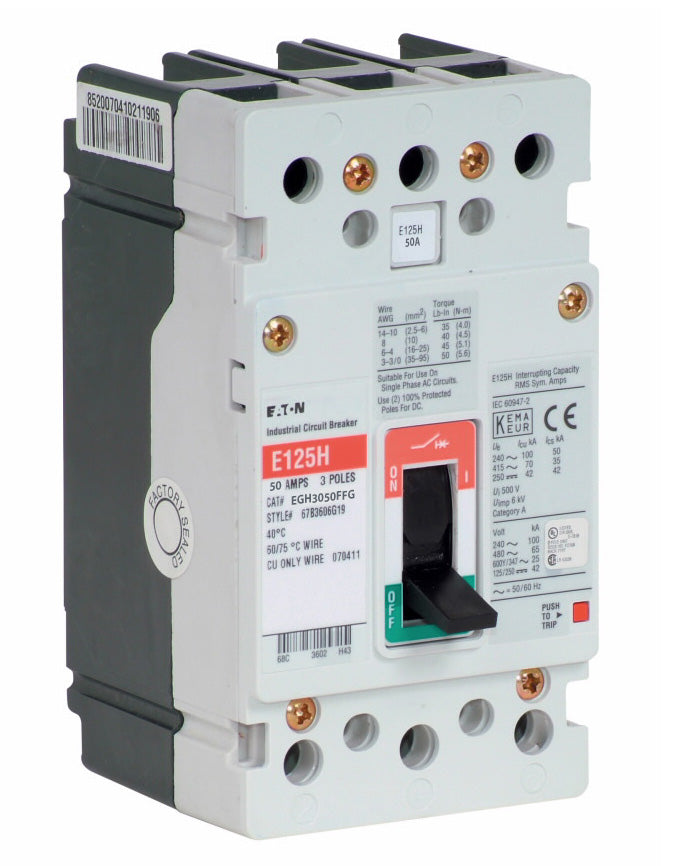

Eaton EGH3050FFG Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series G EGH

The Eaton Cutler-Hammer EGH3050FFG is a 50A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Eaton Series G Type EGH. It is designed for compatible electrical distribution applications and provides a high interrupting capacity of 65kA at 480V.

The breaker is rated for 600V and features a feed-thru configuration with a non-interchangeable trip unit and line- and load-side lug terminals. The supplied source specifies a 40°C operating rating.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: G
• Type: EGH
• Catalog No.: EGH3050FFG
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Unit: Non-Interchangeable Trip Unit
• Connection / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGH3050FFG
• Catalog Number: EGH3050FFG
• Model: EGH3050FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: G
• Type: EGH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC:782114877562

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type EGH electrical distribution equipment that accepts EGH Series molded case circuit breakers. The EGH3050FFG provides 50A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals and a non-interchangeable trip unit. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, temperature rating, and installation specifications before installation.
