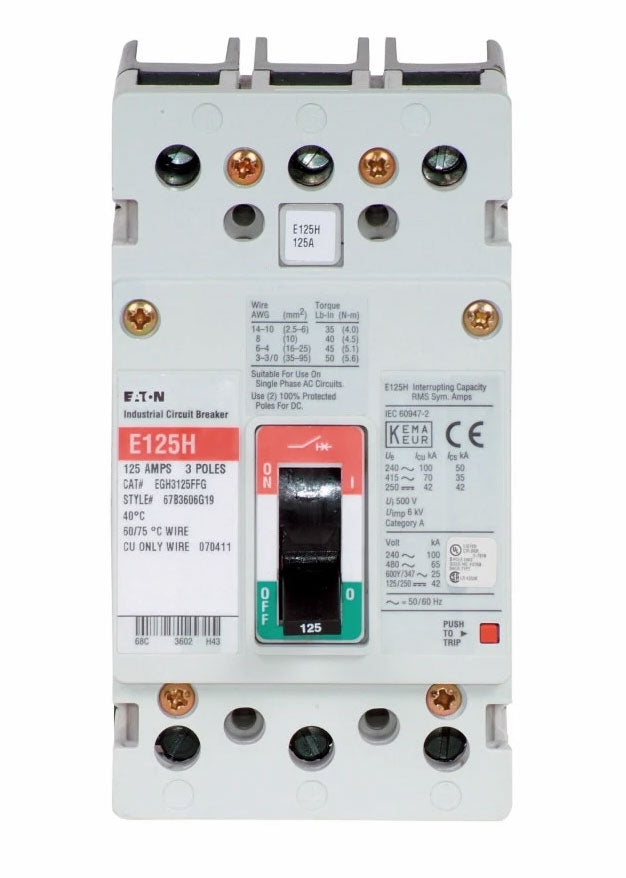

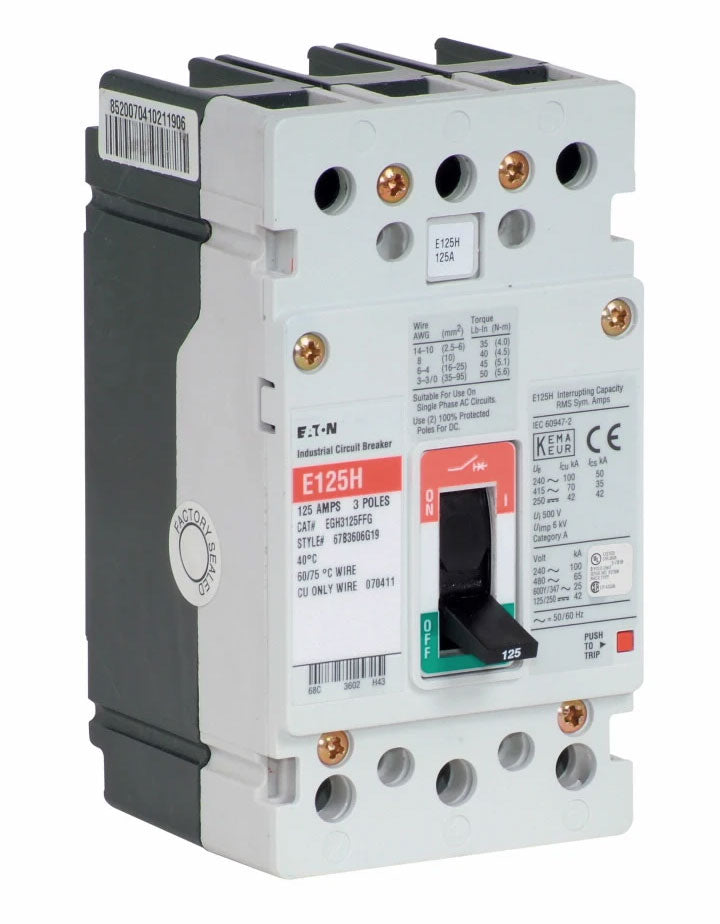

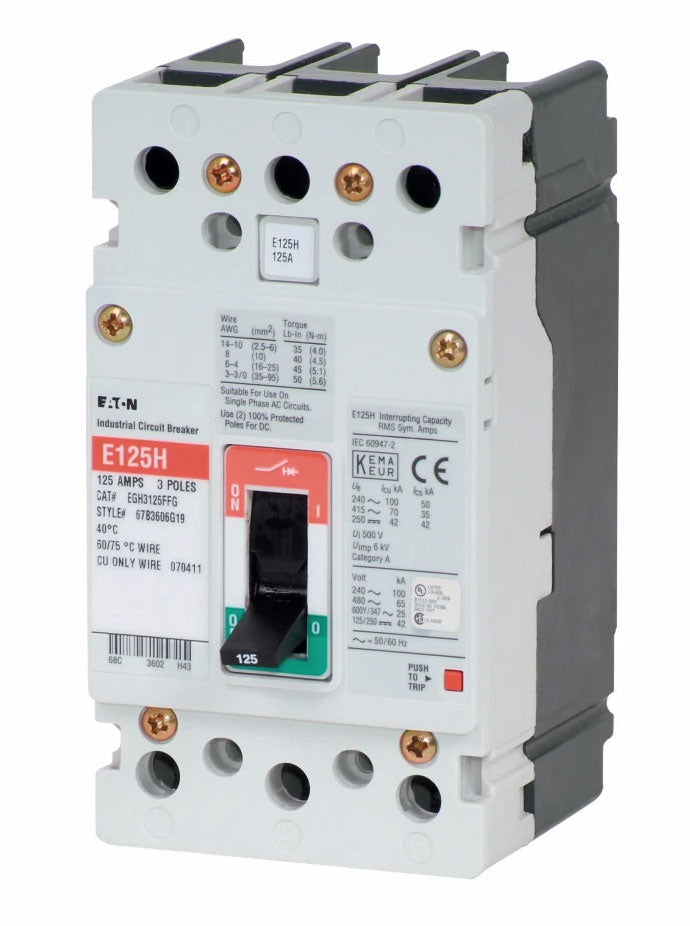

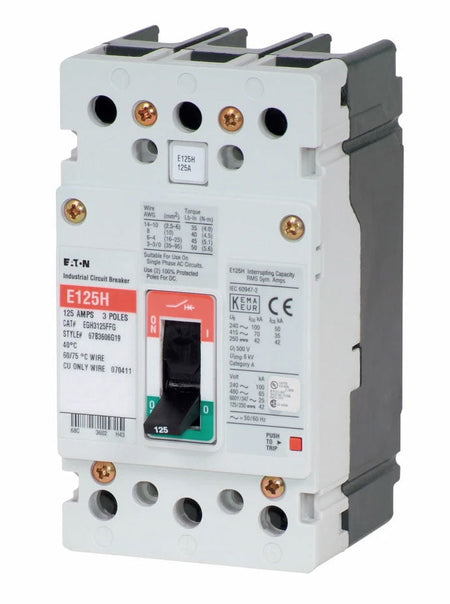

Eaton EGH3125FFG Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series G EGH

The Eaton EGH3125FFG is a 125A, 3-pole, 3-phase feed-thru molded case circuit breaker from the Eaton Cutler-Hammer Series G EGH Series. It features thermal-magnetic protection and a standard interrupting rating of 65kA at 480V.

The EGH3125FFG is rated for a maximum voltage of 600V and includes a non-interchangeable trip unit with line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: EGH
• Catalog No.: EGH3125FFG
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 600V
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Standard
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EGH3125FFG
• Catalog Number: EGH3125FFG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: EGH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: EGH3125FFG
• Breaker Configuration: 3-Pole, 125A
• upc:782114877647

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G EGH electrical distribution equipment that accepts EGH Series molded case circuit breakers. The EGH3125FFG is a 3-pole, 125A thermal-magnetic breaker rated up to 600V, with a 65kA interrupting rating at 480V.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Series G EGH Series
• 125A Rated
• 3-Pole / 3-Phase
• 600V Maximum Voltage Rating
• 65kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
