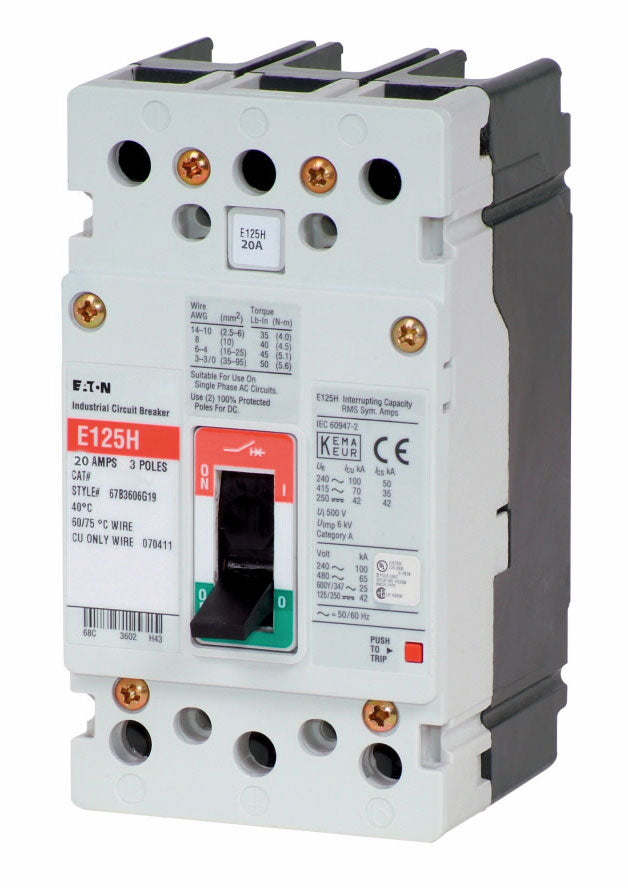

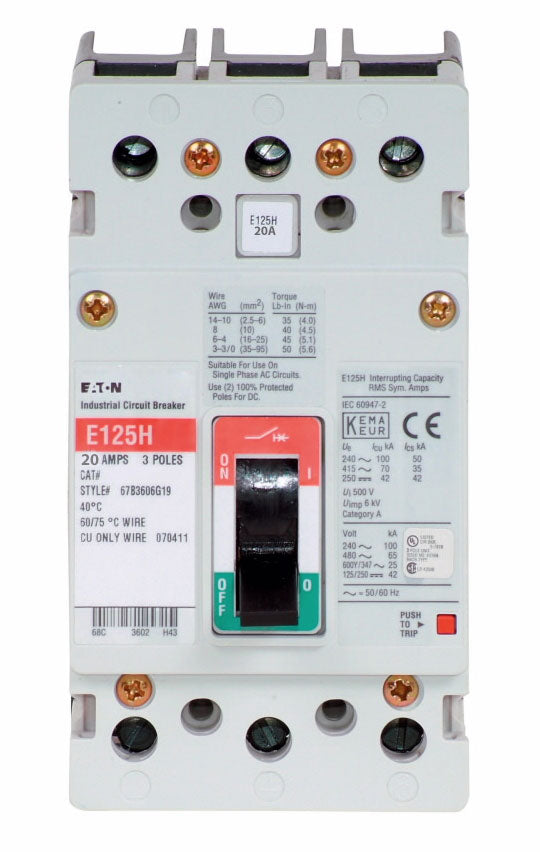

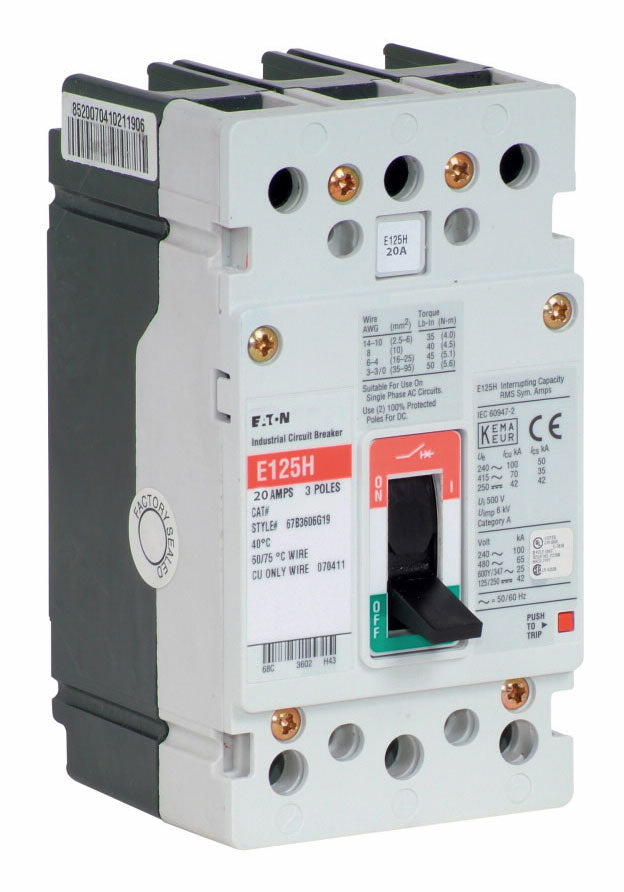

Eaton EGS3020FFG 20 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347 V AC – 85 kAIC@240 V AC – 35 kAIC@480 V AC – 22 kAIC@600Y/347 V AC – Series G

The Eaton EGS3020FFG is a 20 Amp, 3-pole molded case circuit breaker from the Eaton Series G, EG-frame product range. It is rated for 600Y/347 V AC and provides interrupting capacities of 85 kAIC at 240 V AC, 35 kAIC at 480 V AC, and 22 kAIC at 600Y/347 V AC. The breaker features fixed thermal and fixed magnetic trip protection and is designed for line- and load-side connections.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series G
• Frame: EG Frame
• Catalog Number / MPN: EGS3020FFG
• Primary Rating: 20 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600Y/347 V AC
• Interrupting Rating: 85 kAIC @ 240 V AC; 35 kAIC @ 480 V AC; 22 kAIC @ 600Y/347 V AC
• Trip Type: Fixed Thermal / Fixed Magnetic
• Connection: Line and Load
• Frequency: 50/60 Hz

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: EGS3020FFG
• Series: Series G
• Frame: EG Frame
• Current Rating: 20 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• Connection: Line and Load
• UPC:782116131143

Compatibility

The Eaton EGS3020FFG is intended for compatible Eaton Series G EG-frame electrical distribution and circuit protection applications.
