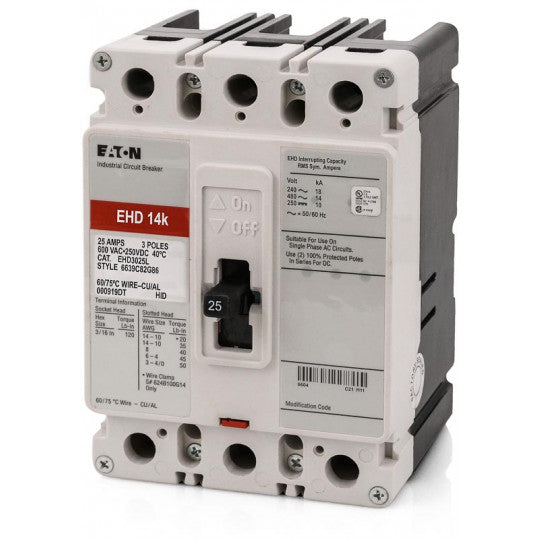

Eaton EHD3025 Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 480V – 14kA @ 480V – Feed-Thru – Series C EHD

The Eaton EHD3025 is a 25A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type EHD. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with a non-interchangeable trip.

The EHD3025 is rated for 480V and provides a 14kA interrupting rating at 480V with standard interrupting capacity. It features Long-Time and Instantaneous (LI) trip functions, a feed-thru configuration, and line-side and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: EHD
• Catalog No.: EHD3025
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V
• Interrupting Rating: 14kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): EHD3025
• Catalog Number: EHD3025
• Model: EHD3025
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: EHD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• UPC:786679317082

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type EHD electrical distribution equipment that accepts EHD Series molded case circuit breakers. The EHD3025 provides 25A, 3-pole thermal-magnetic overcurrent protection for compatible 480V applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
