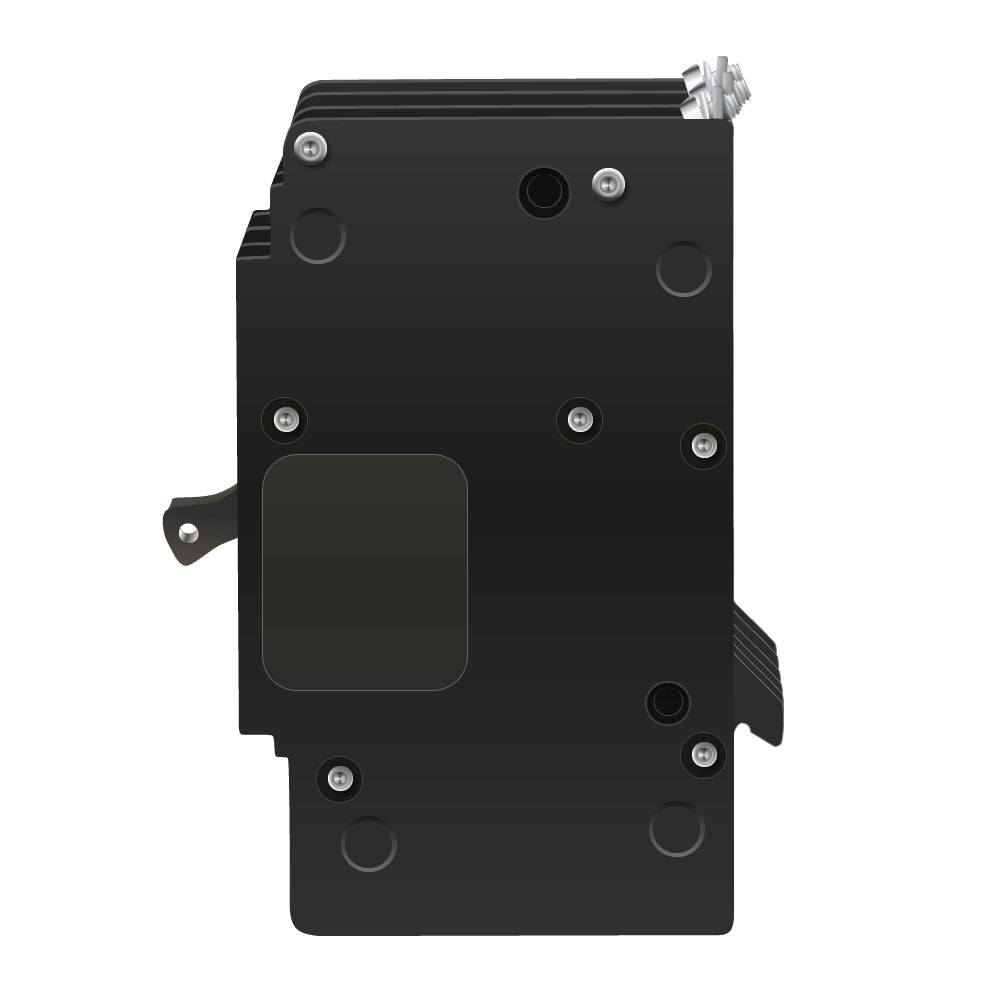

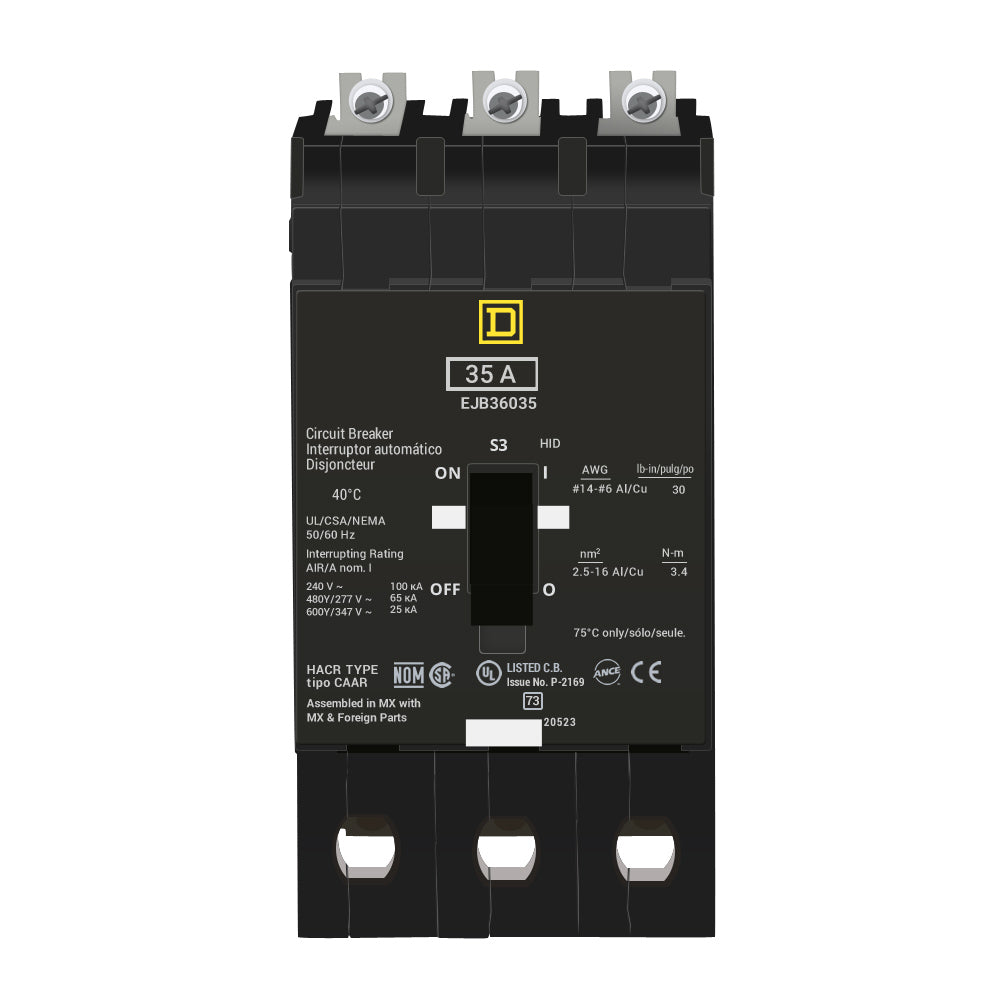

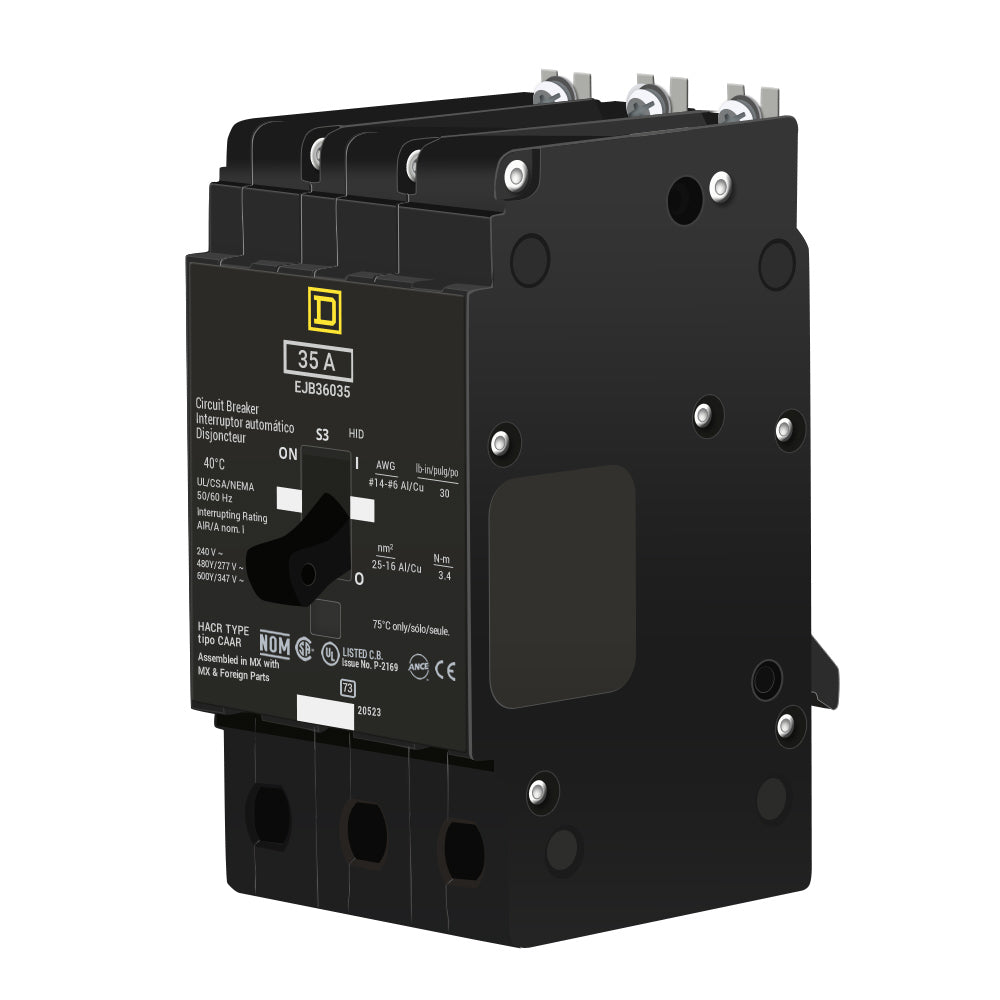

Square D EJB36035 35 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347 V – Bolt-On – EJB Series

The Square D EJB36035 is a 35 Amp, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit, signal indicator for trip indication, and is calibrated for 40°C applications. The breaker includes aluminum lugs with terminals rated for specified copper and aluminum conductor sizes.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: EJB
• Catalog Number / MPN: EJB36035
• Primary Rating: 35 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600Y/347 V AC
• Trip Type: Thermal-Magnetic
• Trip Unit: Thermal-Magnetic
• Connection / Mounting: Bolt-On
• Signal Indicator: Trip Indicator
• Calibration Temperature: 40°C
• Hold Current: 270 A
• Trip Current: 875 A
• Terminals: Aluminum Lugs
• Terminal Lug Rating: AWG 12–AWG 6 Aluminum; AWG 14–AWG 6 Copper
• Applications: Square D NF Panelboards
• HACR Rated: Yes
• HID Rated: Yes

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: EJB36035
• Series: EJB
• Current Rating: 35 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Connection: Bolt-On
• Terminals: Aluminum Lugs
• UPC:785901412434

Compatibility

The Square D EJB36035 is designed for compatible Square D NF Panelboards and related electrical distribution applications.

Certifications

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed as High-Intensity Discharge
