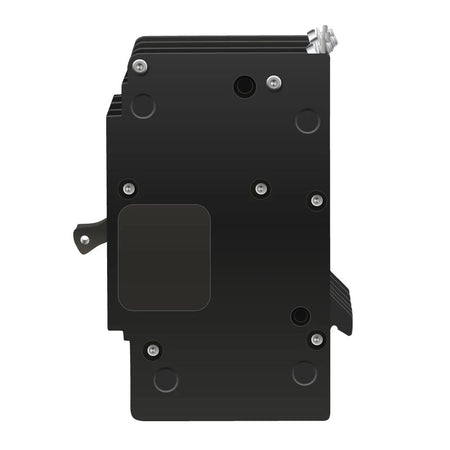

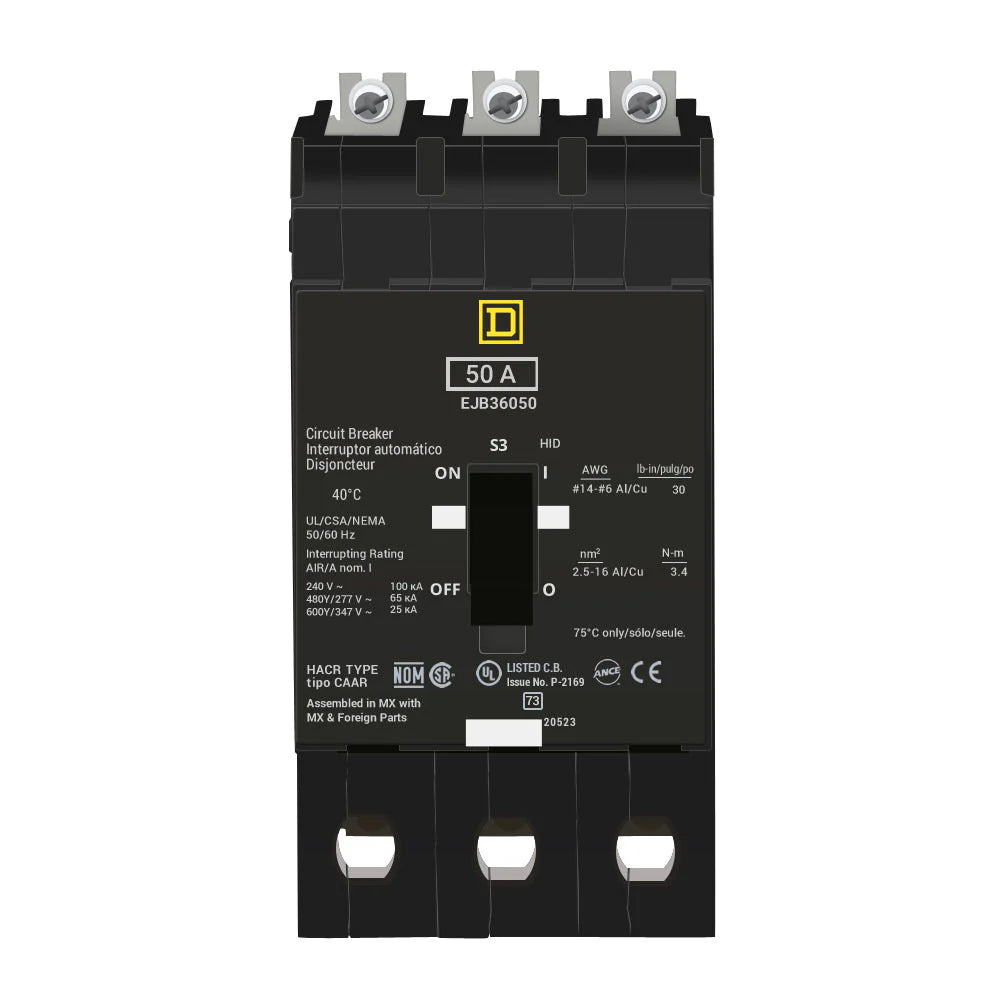

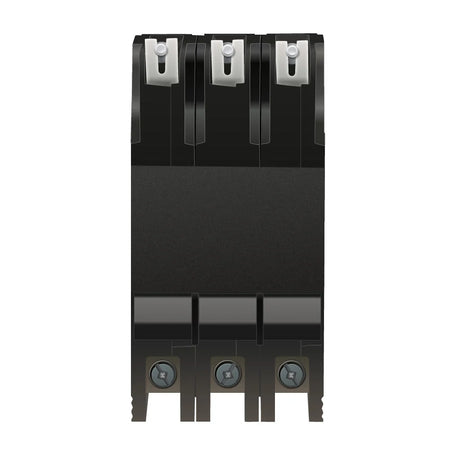

Square D EJB36050 50 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347V AC – Thermal-Magnetic Trip – Bolt-On

The Square D EJB36050 is a three-pole, bolt-on molded case circuit breaker designed for use in compatible Square D NF panelboards. Rated at 50A and 600Y/347V AC, it features a thermal-magnetic trip unit and a trip indicator that signals when the breaker has tripped. The breaker is calibrated for 40°C operation and is suitable for applications requiring HID and HACR ratings.

Specifications

• Brand: Square D / Schneider Electric
• Catalog Number: EJB36050
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 50A
• Number of Poles: 3
• Voltage Rating: 600Y/347V AC
• Mounting Type: Bolt-on
• Trip Unit: Thermal-magnetic
• Trip Indication: Trip indicator
• Hold Current: 270A
• Trip Current: 875A
• Calibration Temperature: 40°C
• Terminal Type: Aluminum lugs
• Aluminum Wire Range: AWG 12–AWG 6
• Copper Wire Range: AWG 14–AWG 6
• Application Ratings: HID and HACR

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• MPN: EJB36050
• Product Family: EJB
• Panelboard Compatibility: Square D NF Panelboards
• UPC:785901407133

Compatibility

Designed for compatible Square D NF panelboards with bolt-on breaker mounting. Suitable for three-phase distribution circuits requiring a 50A breaker with thermal-magnetic protection and HID/HACR application ratings.

Certifications

• UL Rating: UL Listed
