Square D EJB36060 60 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347 V AC – Bolt-On – EJB Series

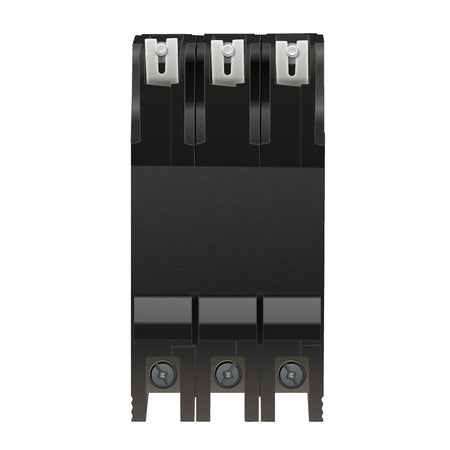

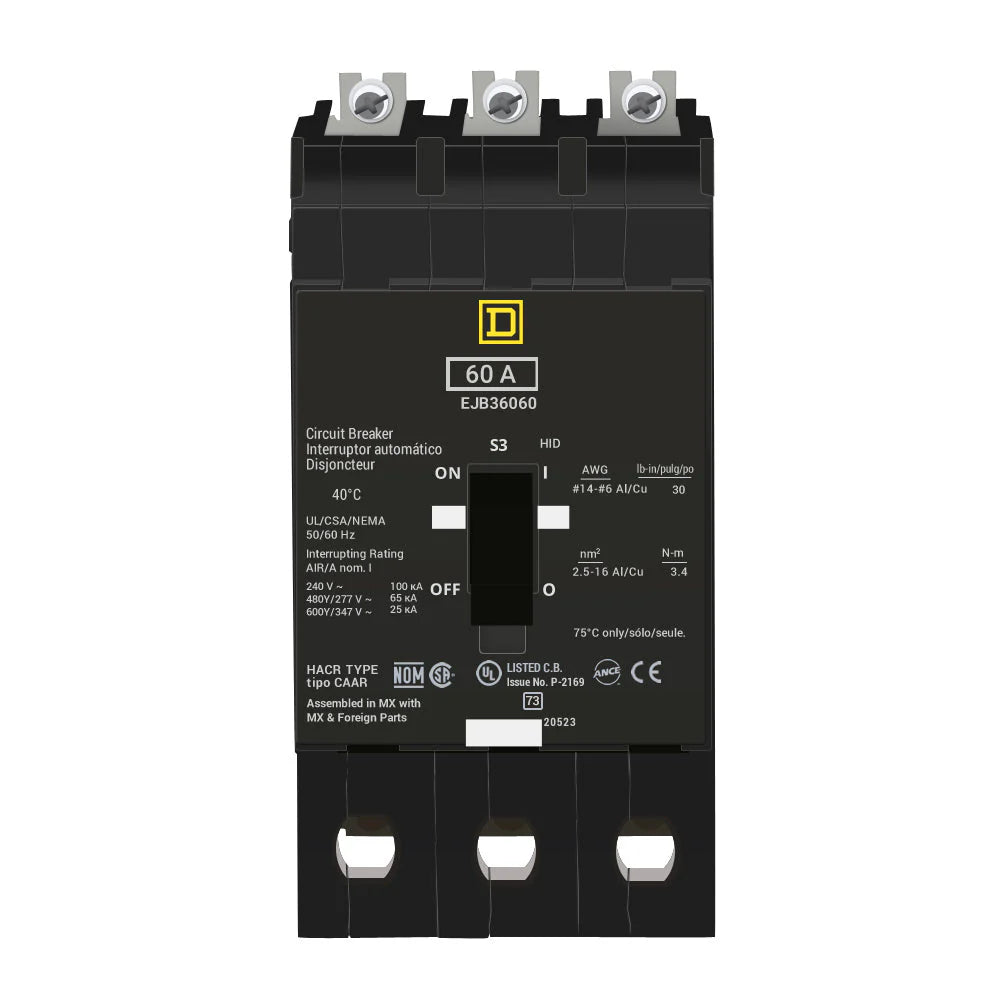

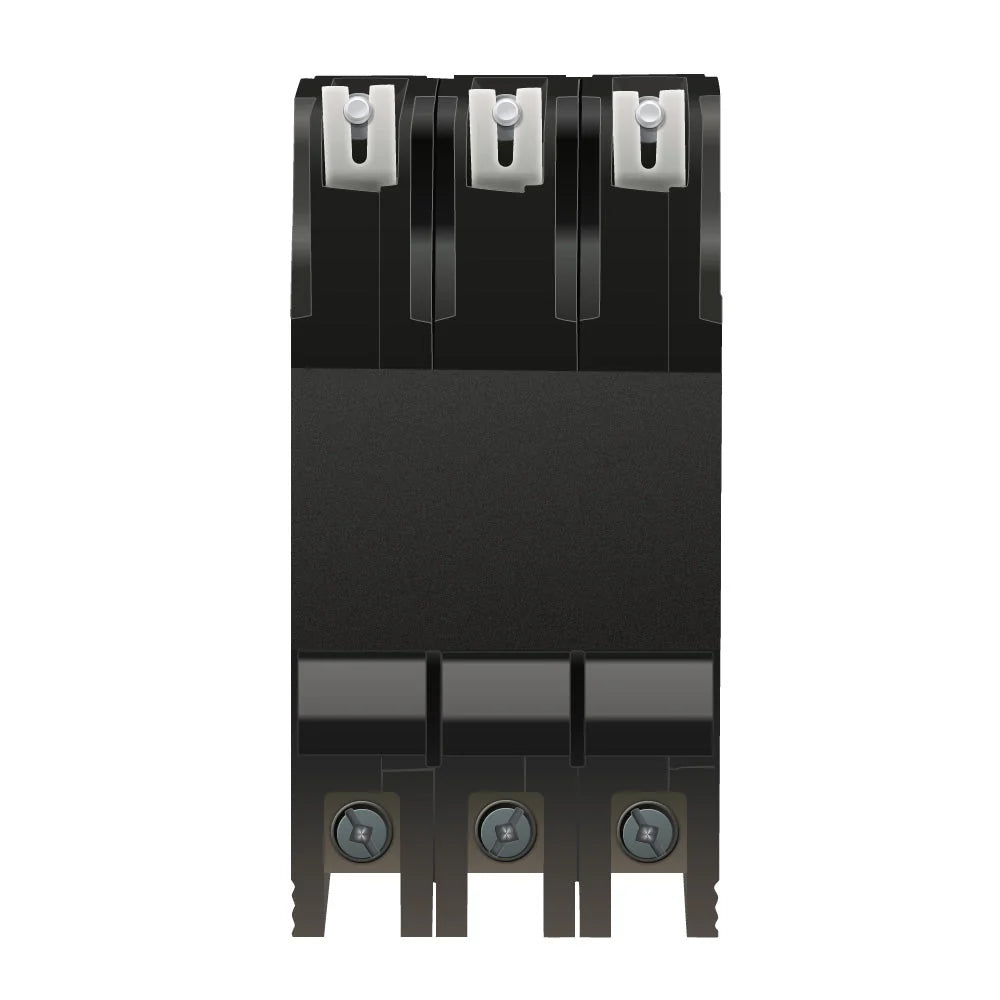

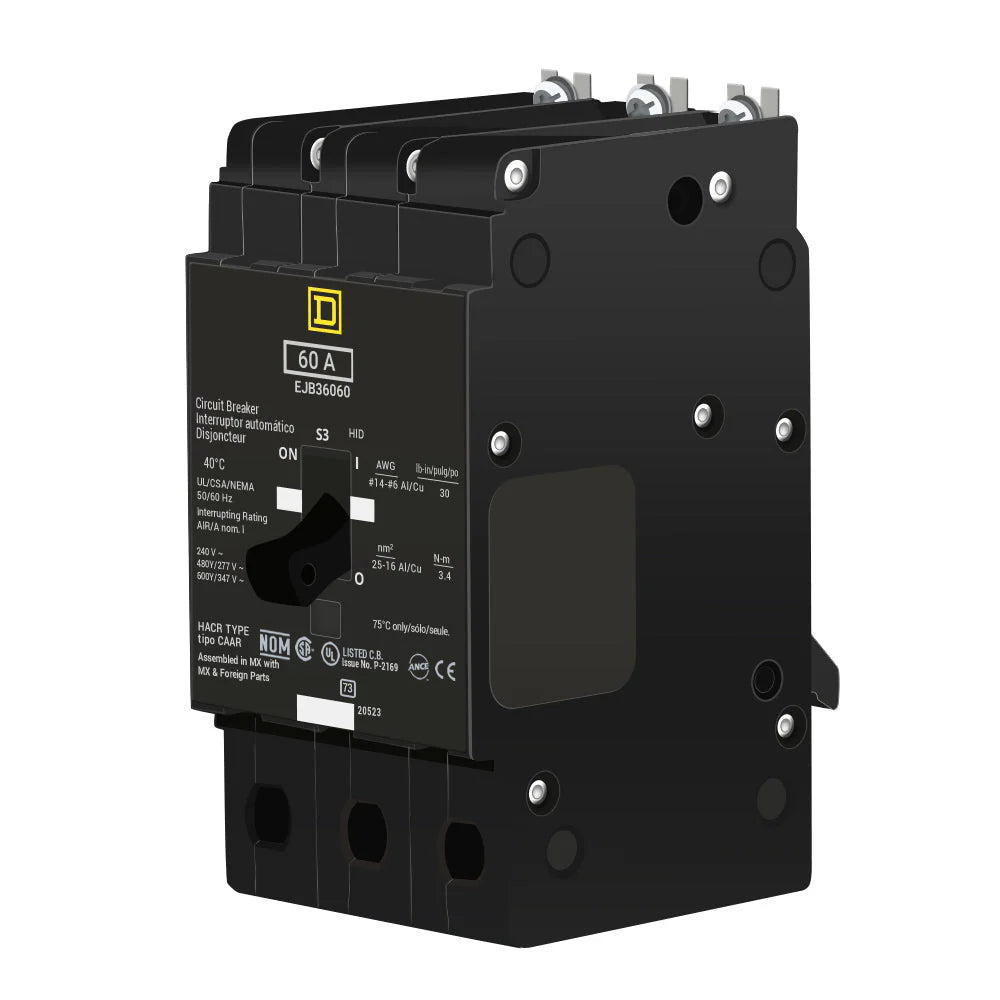

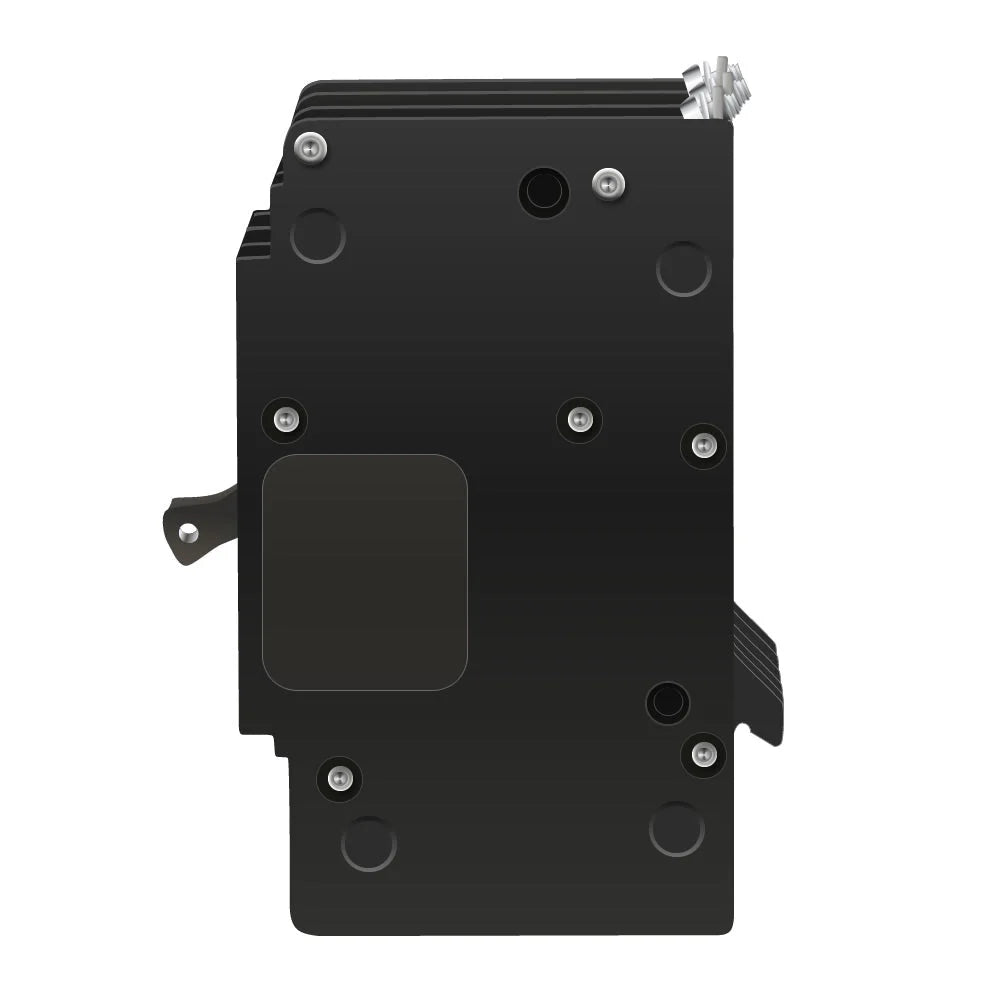

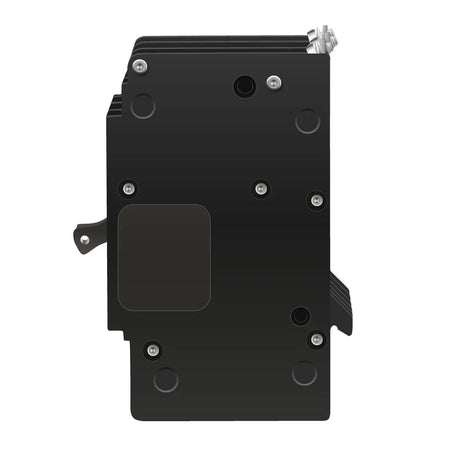

The Square D EJB36060 is a 60 Amp, 3-pole molded case circuit breaker from Schneider Electric / Square D. Designed for compatible Square D NF panelboards, it is rated for 600Y/347 V AC and features a thermal-magnetic trip unit with a trip indicator. The breaker is calibrated for 40°C applications and includes aluminum lug terminals for copper or aluminum conductors.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: EJB
• Catalog Number / MPN: EJB36060
• Primary Rating: 60 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600Y/347 V AC
• Trip Type: Thermal-Magnetic
• Trip Indicator: Yes
• Hold Current: 270 A
• Trip Current: 875 A
• Calibration Temperature: 40°C
• Connection / Mounting: Bolt-On
• Terminals: Aluminum Lugs
• Aluminum Conductor Range: AWG 12–AWG 6
• Copper Conductor Range: AWG 14–AWG 6

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: EJB36060
• Series: EJB
• Current Rating: 60 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Connection: Bolt-On
• Terminals: Aluminum Lugs
• UPC:785901239161

Compatibility

The Square D EJB36060 is designed for compatible Square D NF panelboards and electrical distribution applications.

Certifications

• UL Listed (High-Intensity Discharge)
• CSA Rated
• HID Rated
• HACR Rated
