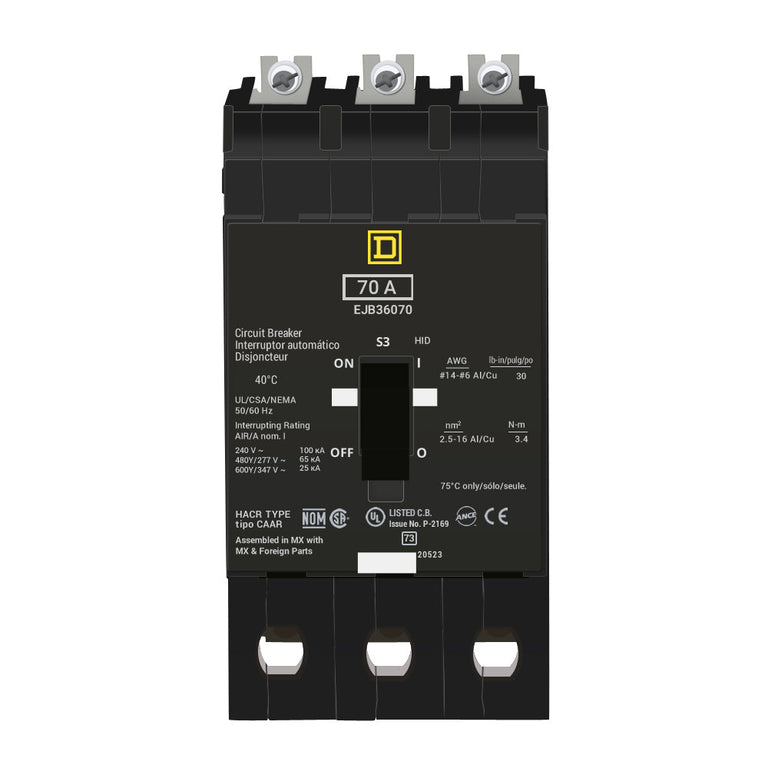

Square D EJB36070 70 Amp Molded Case Circuit Breaker – 3 Pole – 600Y/347 V AC – Bolt-On – Thermal-Magnetic

The Square D EJB36070 is a 70 Amp, 3-pole bolt-on molded case circuit breaker designed for use in compatible Square D NF Panelboards. It features a thermal-magnetic trip unit, signal indication for a tripped condition, and a 40°C calibration. The breaker includes aluminum lugs with terminals suitable for specified copper and aluminum conductor sizes. It is CSA-rated, HID-rated, HACR-rated, and UL Listed as a high-intensity discharge circuit breaker.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Catalog Number / MPN: EJB36070
• Primary Rating: 70 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600Y/347 V AC
• Trip Type: Thermal-Magnetic
• Connection / Mounting: Bolt-On
• Calibration Temperature: 40°C
• Trip Indicator: Signal Indicator
• Hold Current: 270 A
• Trip Current: 875 A
• Terminals: Aluminum Lugs
• Aluminum Conductor Size: AWG 12–AWG 6
• Copper Conductor Size: AWG 14–AWG 6
• Application: Square D NF Panelboards

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: EJB36070
• Current Rating: 70 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Connection: Bolt-On
• Trip Unit: Thermal-Magnetic
• Terminals: Aluminum Lugs
• UPC: 785901407249

Compatibility

The Square D EJB36070 is designed for compatible Square D NF Panelboard applications. Verify the specific panelboard, system voltage, mounting configuration, conductor size, and breaker compatibility before installation.

Certifications

• CSA Rated
• HID Rated
• HACR Rated
• UL Listed
