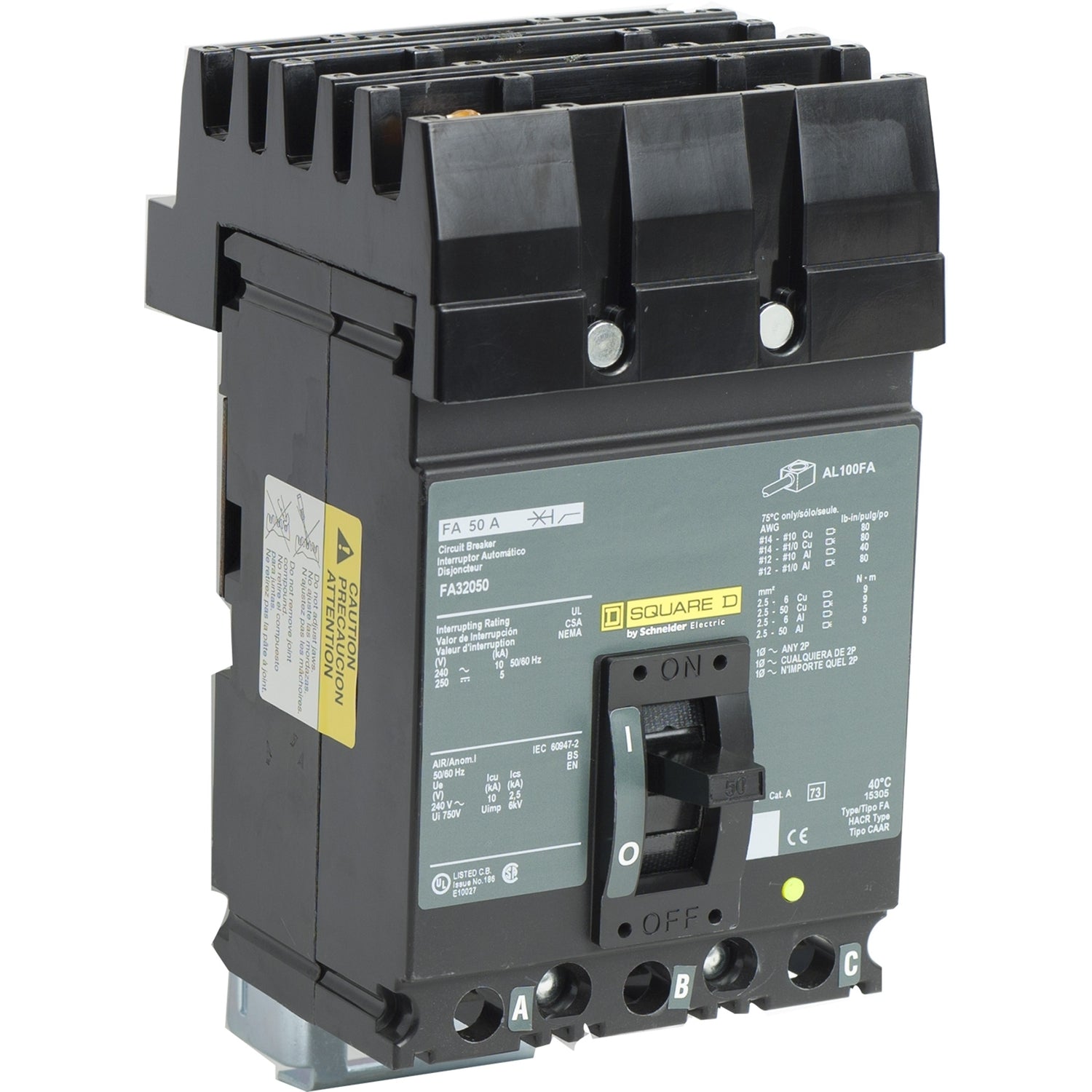

Square D FA32050 Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – I-Line Style Plug-In – FA Series

The Square D FA32050 is a 50A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type FA Series. It features thermal-magnetic protection and an ABC phase connection for compatible electrical distribution applications.

The FA32050 is rated for 240V and provides a 10kA interrupting rating at 240V with a standard interrupting rating. It features an I-Line style plug-in connection and is rated for operation at 40°C.

Note: The detailed source text references FA32020 while the supplied product number is FA32050. The product page uses FA32050 as the MPN/catalog number provided.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: FA
• Type: FA
• Catalog No.: FA32050
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: I-Line Style Plug-In
• Ambient Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FA32050
• Catalog Number: FA32050
• Model: FA32050
• Product Family: Square D I-Line Circuit Breakers
• Series: FA
• Type: FA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC:785901422280

Compatibility:

Designed for use with compatible Square D I-Line Type FA electrical distribution equipment that accepts FA Series molded case circuit breakers with an I-Line style plug-in connection. The FA32050 provides 50A, 3-pole thermal-magnetic overcurrent protection for compatible 240V applications.

The breaker features an ABC phase connection and standard interrupting capacity with a 10kA interrupting rating at 240V. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, mounting arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
