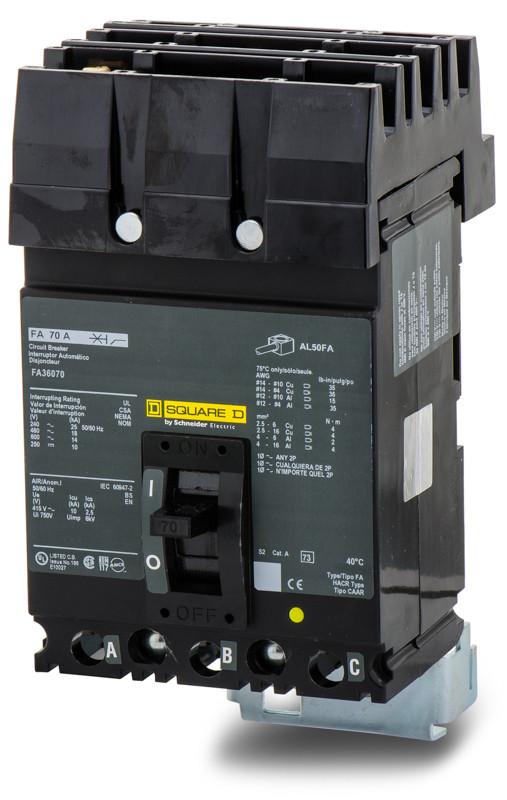

Square D FA36070 Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 600V AC – 14kA @ 600V – I-Line Plug-In – FA Series

The Square D FA36070 is a 70A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type FA Series. It is designed for compatible electrical distribution applications and features thermal-magnetic protection.

The FA36070 is rated for 600V AC and provides a 14kA interrupting rating at 600V AC with a standard interrupting capacity. It uses an I-Line style plug-in connection and is calibrated for 40°C operation.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: FA
• Type: FA
• Catalog No.: FA36070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 14kA @ 600V AC
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: I-Line Style Plug-In
• Calibration Temperature: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric
• Construction: Molded Case

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FA36070
• Catalog Number: FA36070
• Model: FA36070
• Product Family: Square D I-Line Circuit Breakers
• Series: FA
• Type: FA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:785901429364

Compatibility:

Designed for use with compatible Square D I-Line electrical distribution equipment that accepts Type FA I-Line style plug-in molded case circuit breakers. The FA36070 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 600V AC applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line mounting arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
