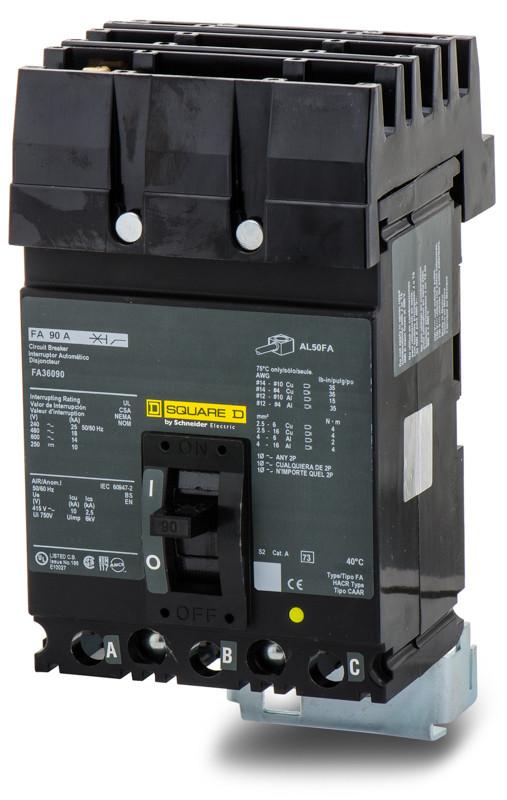

Square D FA36090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 14kA @ 600V – I-Line Style Plug-In – FA Series

The Square D FA36090 is a 90A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric I-Line Type FA Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The FA36090 is rated for 600V and provides a 14kA interrupting rating at 600V with standard interrupting capacity. It features an I-Line style plug-in connection and is calibrated for operation at 40°C.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: FA
• Type: FA
• Catalog No.: FA36090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 14kA @ 600V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: I-Line Style Plug-In
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FA36090
• Catalog Number: FA36090
• Model: FA36090
• Product Family: Square D I-Line Circuit Breakers
• Series: FA
• Type: FA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• UPC:785901009757

Compatibility:

Designed for use with compatible Square D / Schneider Electric I-Line electrical distribution equipment that accepts Type FA I-Line molded case circuit breakers. The FA36090 provides 90A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses an I-Line style plug-in connection and is calibrated for operation at 40°C. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, interrupting rating, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• I-Line FA Series
• 90A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 14kA @ 600V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• I-Line Style Plug-In
• 40°C Rated
