FAL320301380 - Square D Feed-Thru 240V 30A 3 pole circuit breaker 10kA@240V
Couldn't load pickup availability
Ask an expert
Description
FAL320301380

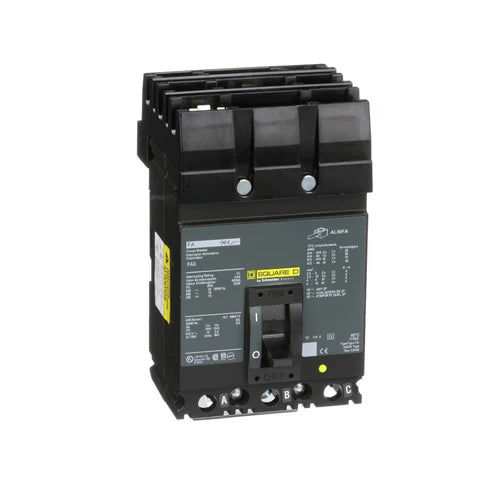

The Square D FAL320301380 is a Molded Case Circuit Breaker. This type FAL circuit breaker is a member of The FAL Series family. The FAL320301380 is a 3 pole, 240 Volt, 30 amp rated circuit breaker, with an AIC rating of 10kA@240V. The FAL320301380 is manufactured by Square D. The FAL320301380 uses a Feed-Thru connection. Includes Thermal Magnetic protection.
Additional Information
complete with 120/240Vac shunt trip and 1A/1B aux switch
Specifications
- Part Number: FAL320301380
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Bolt-On - 30 Amp - 3 Pole - 240 Volt
