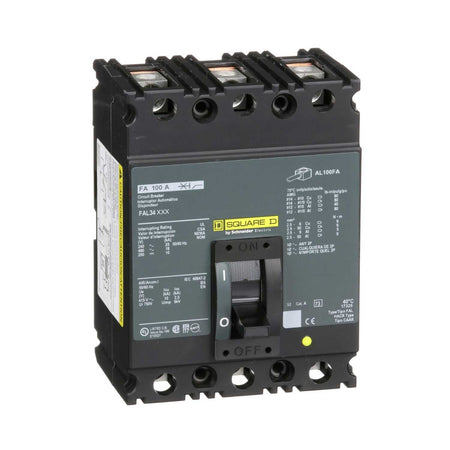

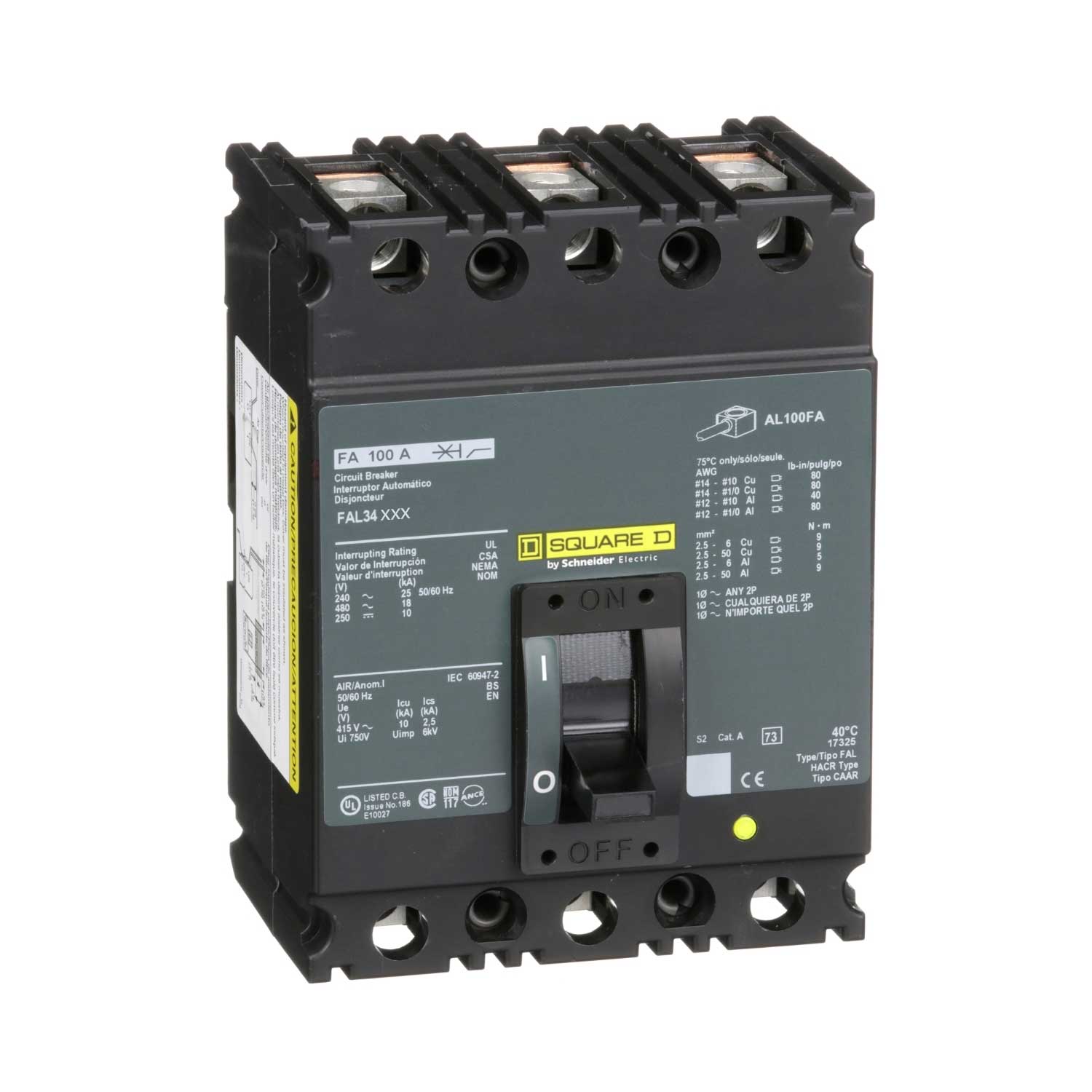

Square D FAL34050 50 Amp Molded Case Circuit Breaker – 3 Pole – 480 V – 18 kA@480 V – Feed-Thru – FAL Series

The Square D FAL34050 is a 50 Amp, 3-pole molded case circuit breaker from the Square D FAL Series, Type FAL. It is rated for 480 V with an 18 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker provides thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru installation and includes line and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: FAL
• Type: FAL
• Catalog Number / MPN: FAL34050
• Primary Rating: 50 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 480 V
• Interrupting Rating: 18 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: FAL34050
• Series: FAL
• Type: FAL
• Current Rating: 50 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC:785901423362

Compatibility

The Square D FAL34050 is designed for compatible Square D FAL Series electrical distribution applications with feed-thru mounting. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.
