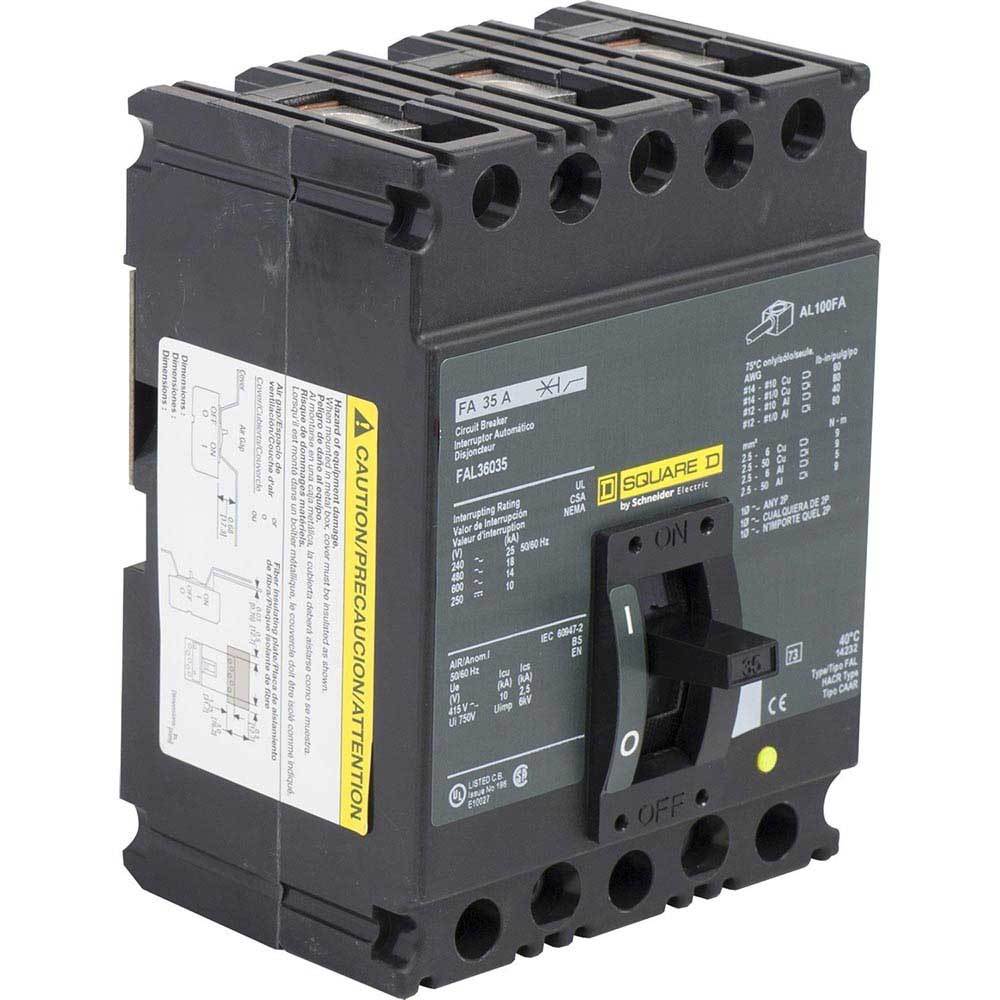

Square D FAL36035 Molded Case Circuit Breaker – 35A – 3-Pole / 3-Phase – 600V – 14kA @ 600V – Feed-Thru – PowerPact FAL Series

The Square D FAL36035 is a 35A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact FAL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The FAL36035 is rated for 600V and provides a 14kA interrupting rating at 600V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is designed for compatible electrical distribution applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: FAL
• Type: FAL
• Catalog No.: FAL36035
• Current Rating: 35A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 14kA @ 600V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FAL36035
• Catalog Number: FAL36035
• Model: FAL36035
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: FAL
• Type: FAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 35A
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901529743

Compatibility:

Designed for use with compatible Square D PowerPact FAL Series electrical distribution equipment that accepts FAL Series molded case circuit breakers. The FAL36035 provides 35A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line-side and load-side lug terminals and standard interrupting capacity. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact FAL Series
• 35A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 14kA @ 600V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
