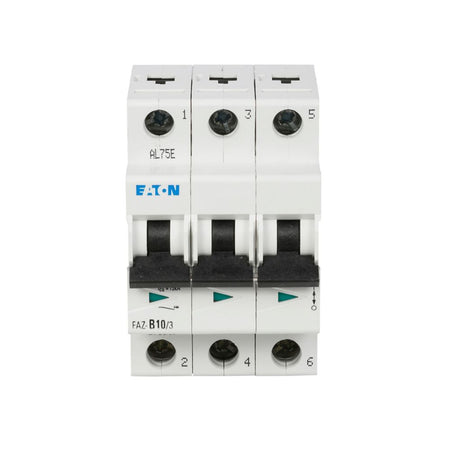

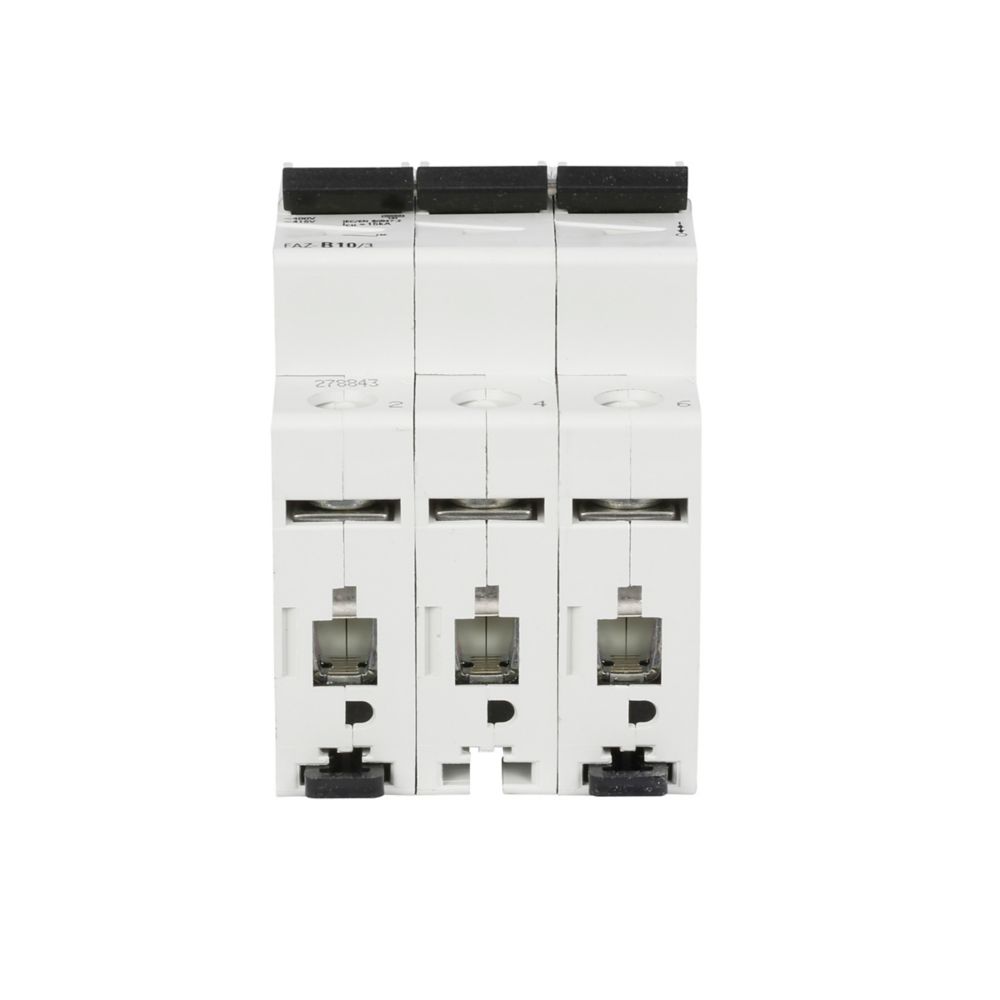

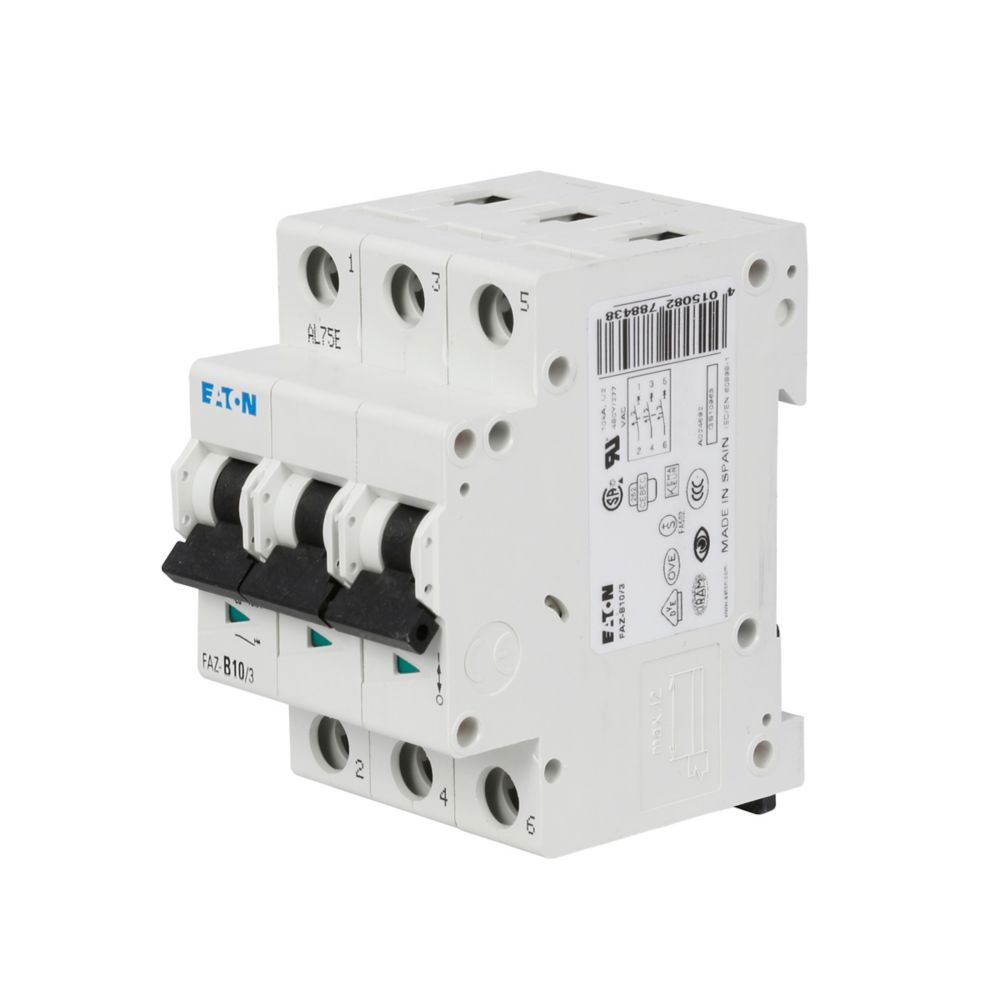

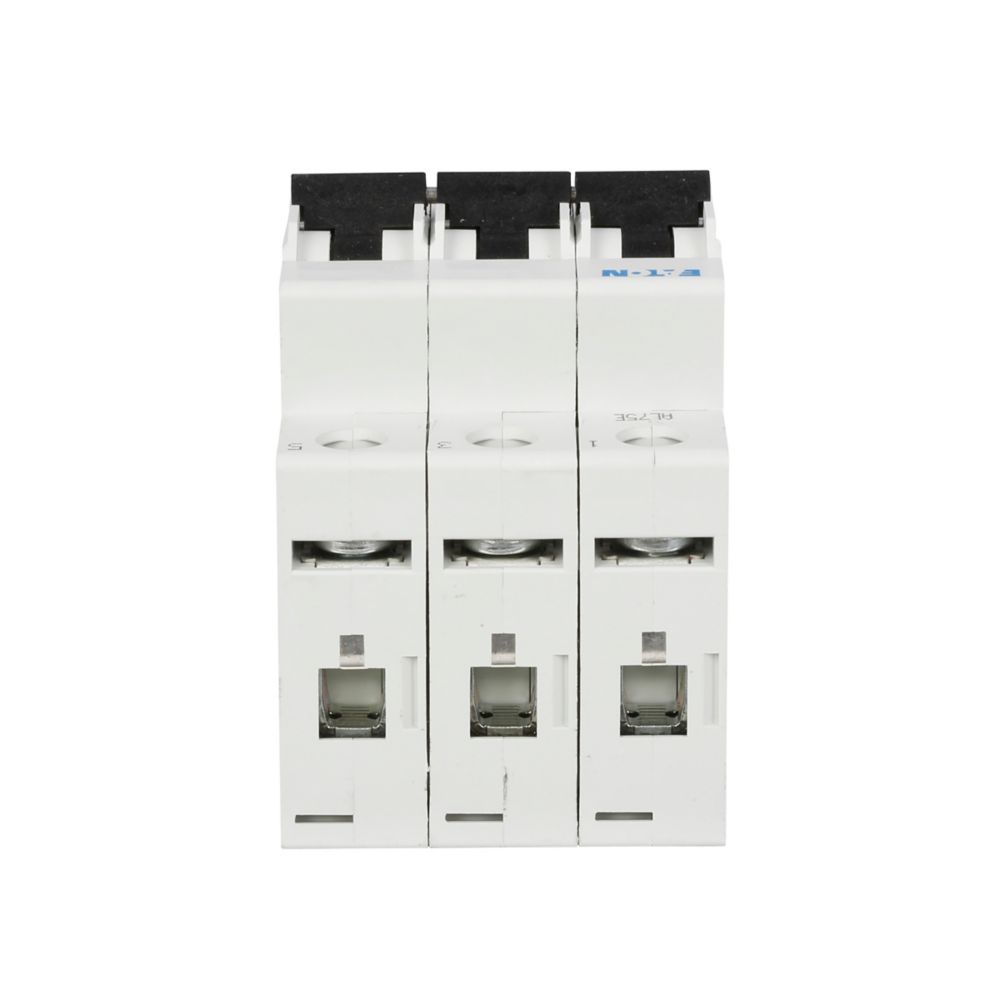

Eaton FAZ-B10/3 10 Amp Supplementary Circuit Protector – 3 Pole – 15 kAIC – B Curve – FAZ Series

The Eaton FAZ-B10/3 is a 10 Amp supplementary circuit protector from the Eaton Moeller FAZ Series, designed to provide reliable overcurrent protection for industrial control panels and electrical circuits. This three-pole miniature circuit breaker features a B trip curve, low inrush current characteristics, and a 15 kAIC interrupting rating for dependable supplementary circuit protection.

Specifications

• Manufacturer: Eaton
• Brand: Eaton Moeller
• Product Type: Supplementary Circuit Protector
• Series: FAZ
• Catalog Number / MPN: FAZ-B10/3
• Current Rating: 10 Amp
• Poles / Configuration: 3 Pole
• Interrupting Rating: 15 kAIC
• Trip Curve: B Curve
• Magnetic Trip Range: 3–5 × Rated Current
• Frequency: 50–60 Hz
• Terminal Type: Standard Terminals
• Application: Industrial supplementary overcurrent protection
• Expected Inrush Current: Low
• Standard: UL 1077

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton Moeller
• Catalog Number: FAZ-B10/3
• Series: FAZ
• Current Rating: 10 A
• Pole Count: 3 Pole
• Product Type: Supplementary Circuit Protector
• Trip Curve: B Curve
• Interrupting Rating: 15 kAIC
• UPC:4015082788438

Compatibility

The Eaton FAZ-B10/3 is intended for supplementary overcurrent protection in compatible industrial control panels and three-phase electrical circuits.

Certifications

• UL Listed
